In modern industrial automation, robotics, and edge computing, traditional machine vision systems are undergoing a radical shift. The growing demand for compact, cost-effective, and highly specialized imaging systems has driven the rapid adoption of the Modular Embedded Ecosystem
Think of a Modular Embedded Vision Ecosystem as building with industrial-grade Lego bricks. Instead of using bulky, enclosed cameras connected to oversized industrial PCs, engineers can assemble camera modules, interface converter boards, processing platforms (ARM, FPGA, or NPU), and software drivers into a customized, high-performance vision system tailored to exact space, power, and bandwidth requirements.
At Joyllon, we empower global engineers, system integrators, and OEMs with high-precision board-level camera modules and custom OEM/ODM solutions built specifically for this modular architecture.
Why Is the Modular Embedded Vision Ecosystem Emerging?
Historically, industrial vision applications relied heavily on standardized industrial cameras (such as heavy GigE or USB3 boxed cameras) linked to high-performance desktop PCs.
However, as advanced technologies like autonomous mobile robots (AMR/AGV), medical diagnostic devices, inspection drones, automated logistics, and automotive ADAS demand lower power consumption, smaller footprints, and faster deployment, traditional approaches hit significant bottlenecks:
- Traditional Industrial Cameras: Bulky, heavy, expensive, and power-hungry, making them difficult to embed inside tight mechanical housings or lightweight robotic arms.
- Full Custom Chip-Down Designs: Developing a custom sensor and PCB board from scratch requires a long development cycle (typically 9 to 18 months), high upfront NRE costs, and complex ISP (Image Signal Processor) fine-tuning.
The Modular Embedded Vision Ecosystem serves as the ideal “third path”—delivering the flexibility of custom hardware alongside the speed and cost efficiency of off-the-shelf integration.
The Four Core Layers of a Modular Embedded Vision System
A robust modular architecture relies on standardized hardware and software interfaces, structured across four distinct layers:
+-----------------------------------------------------------+
| 4. Vision Algorithms & Software |
| (OpenCV / Halcon / AI Models) |
+-----------------------------------------------------------+
| 3. Standard Drivers & Middleware |
| (V4L2 / GenICam / MIPI/GMSL Drivers) |
+-----------------------------------------------------------+
| 2. Bridge/Carrier Boards & Serializers |
| (MIPI to GMSL / FPD-Link / Carrier Board) |
+-----------------------------------------------------------+
| 1. Sensor Head (Board-Level Camera) |
| (Sony/OmniVision Sensor + AA Process + Bare Board) |
+-----------------------------------------------------------+

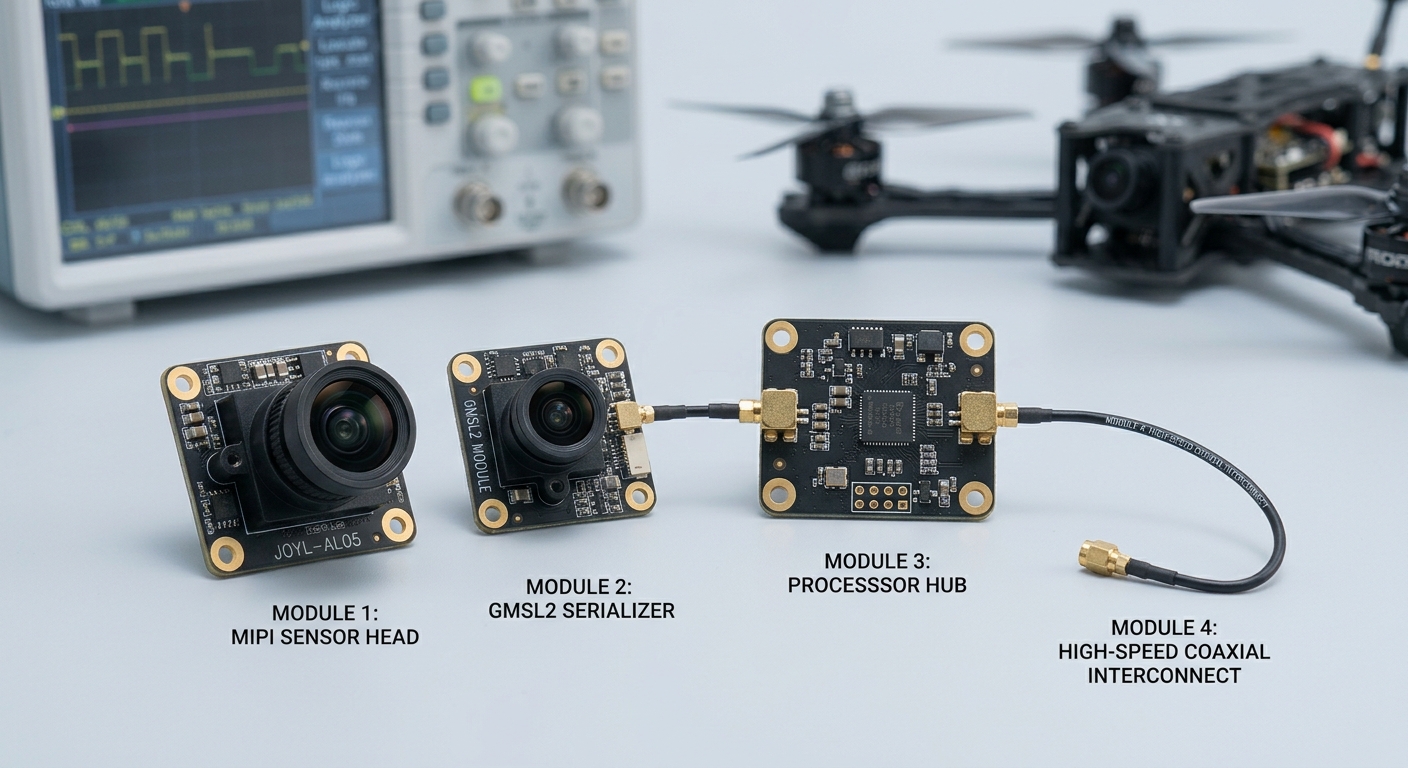

1. Sensor Head (Board-Level Camera Module)

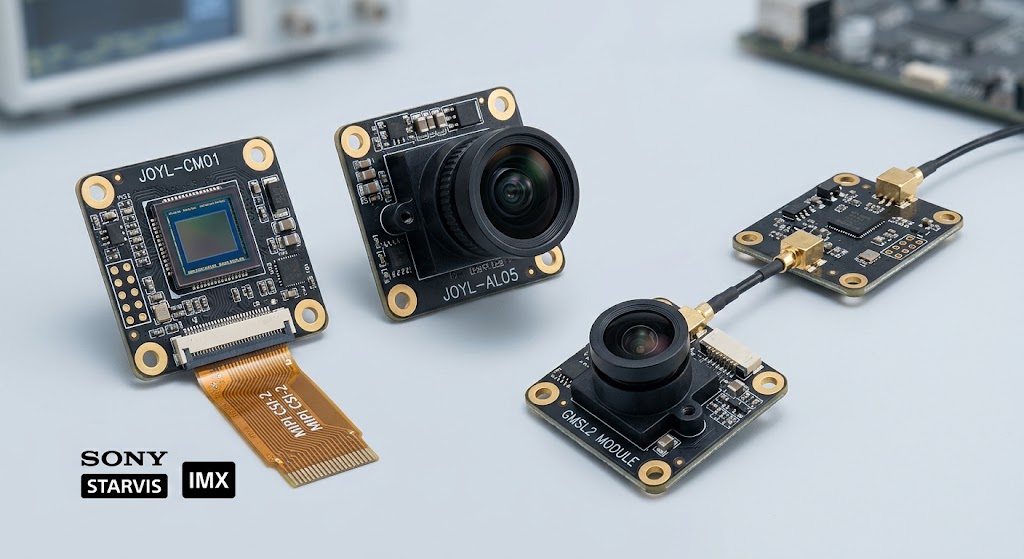

Designed as a compact, bare-board module, this layer integrates premium image sensors (such as Sony STARVIS/Pregius or OmniVision) with optical lenses using high-precision Active Alignment (AA) processes. It outputs raw image data via standard MIPI CSI-2, Sub-LVDS, or parallel DVP interfaces.
2. Signal Transmission & Adapter Layer (Bridge & Carrier Boards)
This layer solves distance and interface conversion challenges. For example, while native MIPI CSI-2 transmission distance is limited (typically < 20cm), bridge boards can convert the signal to GMSL2 or FPD-Link III for reliable video transmission over distances up to 15 meters, or bridge it directly to USB3.0/GigE formats.
3. Processing Platform & Carrier Layer
Connects to mainstream embedded computing architectures—including ARM processors, NPUs, FPGAs, or custom embedded carrier boards—providing plug-and-play slot integration for rapid computing execution.
4. Standardized Software & Driver Layer
Utilizes unified Linux drivers (such as V4L2) and GenICam-compliant software interfaces/SDKs. This allows high-level AI models, OpenCV algorithms, or machine vision software to ingest frame streams seamlessly without rewriting core software code.
Core Advantages of Adopting a Modular Vision Architecture
- Dramatically Accelerated Time-to-Market: Engineers eliminate the need to design core high-speed hardware circuits from scratch. By selecting off-the-shelf sensor modules, bridge boards, and processing units, a functional Minimum Viable Product (MVP) prototype can be built in days.
- Exceptional Flexibility & Scalability: Upgrading from a 2MP sensor to an 8MP resolution sensor only requires swapping the top sensor module board. The backend carrier processing unit and software algorithms remain fully reusable.
- Miniaturization & Cost Optimization: Removing heavy metal housings and redundant interface hardware reduces overall camera footprint by over 70% while significantly reducing BOM (Bill of Materials) costs for volume production.
Embedded Vision Module & Selection Guide with Joyllon
As a specialized manufacturer of high-precision camera modules, Joyllon provides reliable, industrial-grade board-level camera solutions designed to seamlessly integrate into your embedded vision ecosystem:
- Advanced Interface Integration: Native support for high-speed MIPI CSI-2, GMSL2, Sub-LVDS, and USB 3.0 interfaces, optimized for low latency and high bandwidth.
- Active Alignment (AA) Precision: State-of-the-art cleanroom manufacturing ensuring precise optical centering, high optical axis accuracy, and sharp corner-to-corner resolution.
- Long-Term Lifecycle Commitment: Industrial and automotive projects demand stability. Joyllon guarantees a 5 to 10-year long-term supply roadmap, ensuring ongoing availability for your deployed systems.
- Flexible OEM/ODM Customization: Custom PCB layouts, specialized lens holder mountings, ISP tuning, and custom pinouts tailored precisely to your mechanical constraints.
Accelerate Your Next Embedded Vision Project Today
Whether you are designing a compact AMR navigation system, an AI-powered medical diagnostic device, or a high-speed industrial inspection system, Joyllon’s modular camera solutions provide the performance and reliability your project demands.
Explore our full range of embedded camera modules and engineering customization services at www.joyllon.com or contact our technical team to discuss your project requirements.
