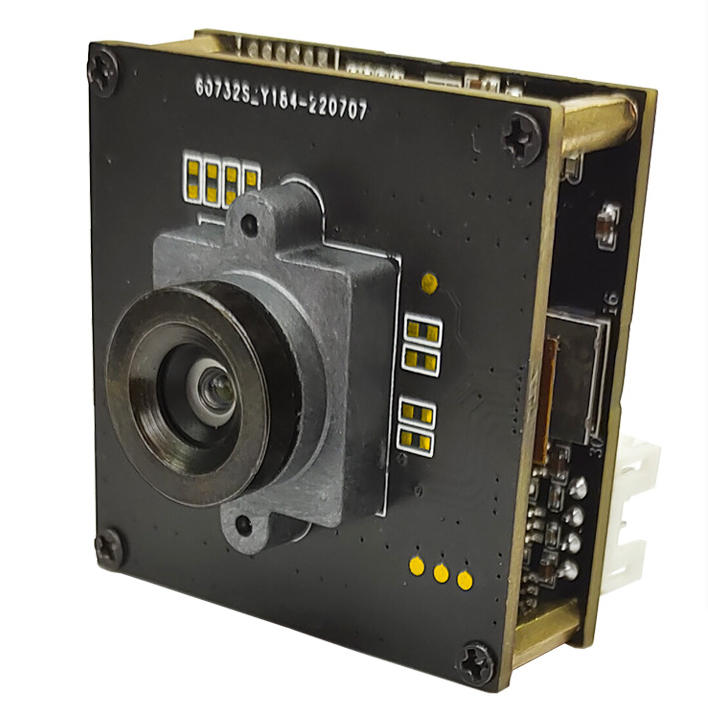

48MP Fixed Focus USB2.0 Camera Module with Samsung ISOCELL GM1 (S5KGM1) Sensor
The highest resolution USB2.0 camera module available on the market. Featuring the Samsung ISOCELL GM1 (S5KGM1) 1/2″ sensor with advanced ISOCELL Plus technology and Tetrapixel technology, this 48MP (8000×6000) camera delivers exceptional image quality, superior light sensitivity, and outstanding color fidelity.
Advanced Sensor Technologies
Tetrapixel Technology
Smart WDR
0.8μm Pixels
Remosaic Algorithm
ISOCELL Plus technology significantly increases light sensitivity and color fidelity with 0.8μm pixels for more accurate and clearer photos.
Tetrapixel technology mimics large pixels to take brighter 3MP pictures, while a remosaic algorithm creates detailed 12MP high-resolution images.
Smart WDR technology helps capture vivid photos with greater detail even in mixed lighting conditions.
Resolution & Frame Rate – Choose Your Use Case
🎥 8MP (3840×2160) @ 30FPS – Best for smooth video recording
MJPG Format
| Resolution | Frame Rate | Best For |
|---|---|---|
| 8000 x 6000 (48MP) | 2 FPS | Ultra-high resolution photos |
| 4608 x 3456 | 2 FPS | High resolution stills |
| 4000 x 3000 (12MP) | 10 FPS | High quality photos |
| 3840 x 2160 (4K / 8MP) | 30 FPS | 4K video recording |
| 1920 x 1080 (Full HD) | 30 FPS | 1080p video |
| 1280 x 720 (HD) | 30 FPS | 720p video |
YUY2 Format (Uncompressed)
| Resolution | Frame Rate |
|---|---|
| 1920 x 1080 | 5 FPS |
| 800 x 600 | 20 FPS |
| 640 x 480 | 20 FPS |
Key Features
Recommended Use Cases
🖨️ Document scanning
🔬 Microscopy & lab imaging
🏭 Industrial inspection
📦 PCB inspection
🎓 Educational equipment
🤖 Embedded vision systems
🖼️ Art digitization
📋 Archive & preservation
🔍 Quality control
Product Highlights
- Highest resolution USB2.0 camera module – 48MP native resolution
- Dual-mode operation – 48MP @ 2FPS for photos, 4K @ 30FPS for video
- Samsung ISOCELL GM1 (S5KGM1) – premium 1/2″ CMOS sensor
- UVC compliant – works instantly with any UVC-supported OS
- Fixed focus design – reliable, consistent, and manually adjustable
📞 Contact us for OEM/ODM customization, bulk pricing, or technical support.
Specification:
| Model No | CMT-48MP-S5KGM1-USB2.0 |
| Sensor | 1/2’’ Samsung ISOCELL GM1 (S5KGM1 ) |
| Pixel | 48 Mega Pixel |
| Most effective pixels | 8000(H) x 6000(V) |
| Pixel Size | 0.8µm x 0.8µm |
| Structure | Stack-up |
| Compression format | MJPG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed Focus |
| Interface type | USB2.0 |
| Chroma | Color, RGB |
| Lens FOV | Default |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/White balance |
| Audio frequency | Support |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 550mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Not Supported |
| Auto White Balance | Support |
| Auto Gain Control | Not Supported |
| Dimension | 38MM x38MM |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above with UVC |
