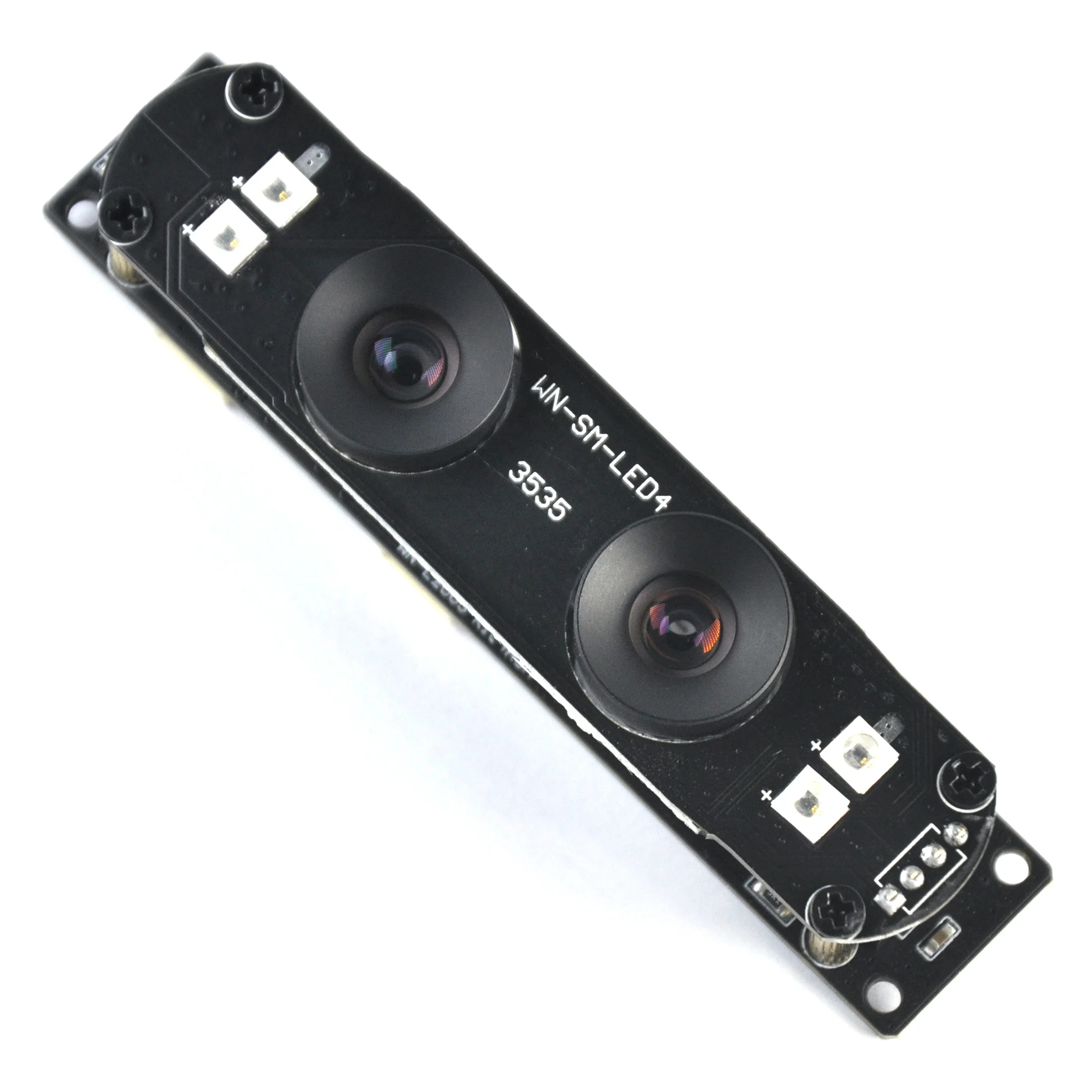

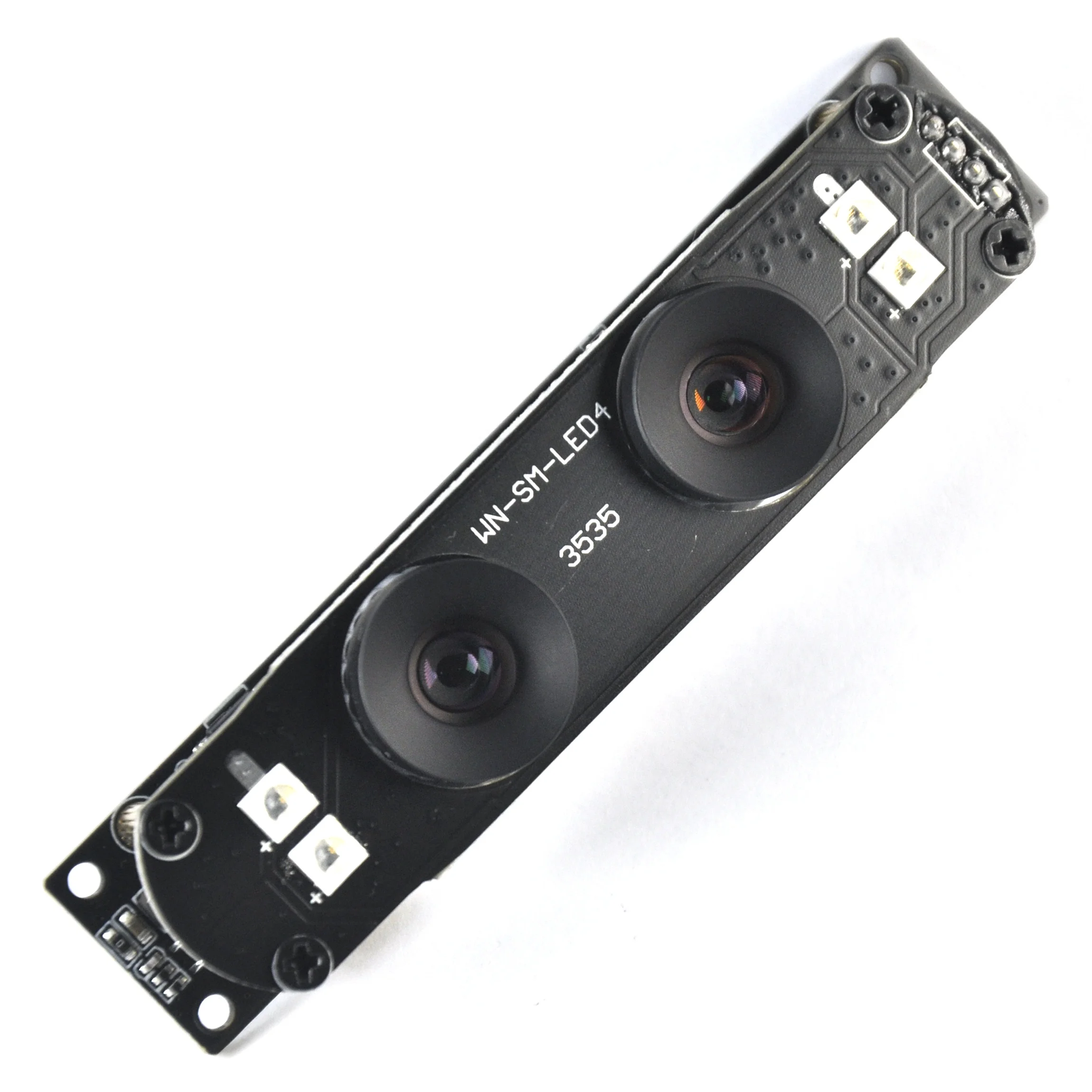

2MP 1080P 100° Dual Lens USB Camera Module AR0230 HDR MF/FF for Windows Linux Android
|
Items
|
Color Camera
|
IR B/W Camera
|
|
AGC/AEC/Whiter balance
|
Auto
|
Auto
|
|
Sensor
|
1/2.7-Inch CMOS , AR0230 HDR
|
1/2.7-Inch CMOS Sensor
|
|
Pixel Size
|
3.0*3.0µm
|
3.0*3.0µm
|
|
Max Resolution
|
1920 H x 1080 V
|
1920 H x 1080 V
|
|
Shutter Type
|
Electronic Rolling Shutter
|
Electronic Rolling Shutter
|
|
FOV
|
100 Degree without Distortion
|
100 Degree without Distortion
|
|
IR LED
|
/
|
850NM Infrared Band
|
|
Output & Power Supply
|
USB2.0, USB Bus Power Supply
|
USB2.0, USB Bus Power Supply
|
|
Image Color
|
Color
|
B/W
|
|
Microphone
|
Digital Microphone
|
Digital Microphone
|
|
Type of Focusing
|
Manual/ Fixed Focus
|
Manual/ Fixed Focus
|
|
Scanning Speed
|
0.1S
|
0.1S
|
|

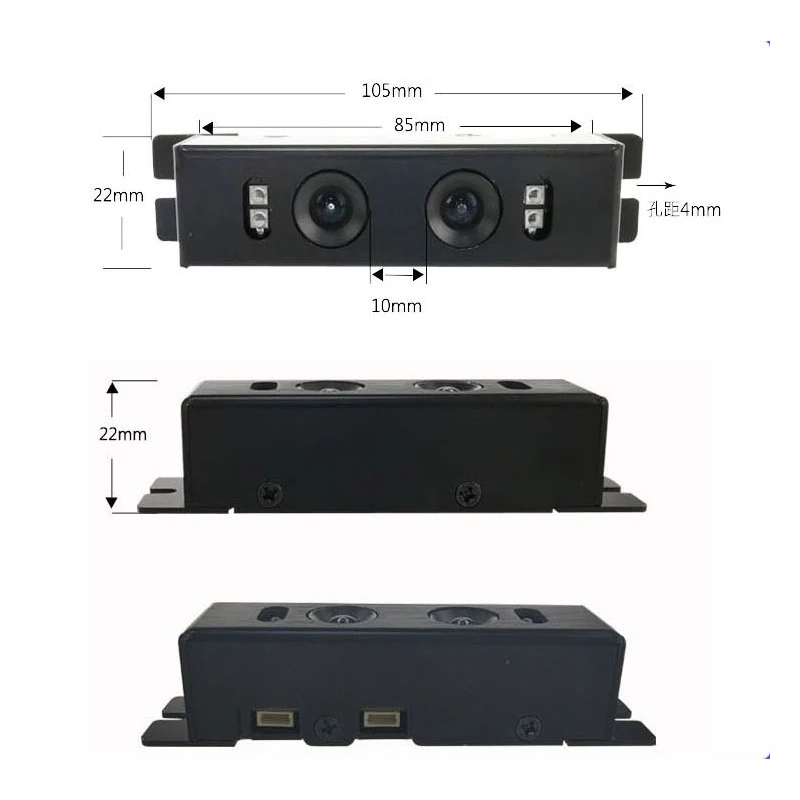

Module Size
|
80*17 mm
|
|
|
Supported System
|
Windows, Android, Linux, Mac OSX
|
|
|
Digital Mic
|
Support
|
Support
|
|
Video Stream Format
|
MJPEG, YUY2
|
MJPEG, YUY2
|
|
Format
|
Resolution
|
Frame Rate (USB2.0)
|
|
MJPEG
|
1920×1080 (1080P)
|
30FPS
|
|
1280×720 (720P)
|
30FPS
|
|
|
800×600(WVGA)
|
30FPS
|
|
|
640×480 (VGA)
|
30FPS
|
|
|
YUY2
|
1920×1080 (1080P)
|
5FPS
|
|
1280×720 (720P)
|
10FPS
|
|
|
800×600(WVGA)
|
20FPS
|
|
|
640×480 (VGA)
|
30FPS
|
|
Pin No.
|
Signal Name
|
Description
|
|
1
|
VCC
|
5V Power
|
|
2
|
DM
|
USB2.0 Data+
|
|
3
|
DP
|
USB2.0 Data-
|
|
4
|
GND
|
GND
|
|
5
|
GND
|
GND
|
|
Operating Voltage
|
USB DC +5V Supply
|
|
Operating Current
|
RGB: 80mA IR: 270mA
|
|
Operating Temperature
|
-20℃ ~ 70℃
|
|
Storage Temperature
|
-20℃ ~ 85℃
|
|
Humidity
|
80 ~85%
|
Type 1:
Type 2 :
