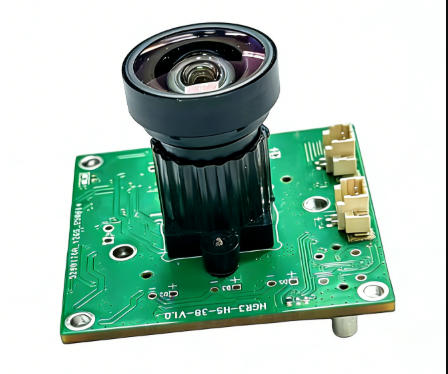

Looking for a reliable high-frame-rate vision solution for industrial automation, sports analysis, or high-speed motion tracking? Discover the Joyllon HGR3-H5-38-V1.0 USB 3.0 Camera Module, engineered to deliver exceptional performance, low latency, and smooth video capture up to 400 FPS.
Key Features & Highlights
- Ultra-High Frame Rate: Capture rapid motion without blur — delivers up to 400 FPS at 640×480 (VGA) and 200 FPS at 1280×1024.
- Super-Speed USB 3.0 Interface: Ensures fast data transfer rates, uncompressed output support, and plug-and-play UVC driverless compatibility.
- 1/2″ Optical Format Sensor: Superior light sensitivity and image fidelity compared to smaller consumer-grade sensors.
- Wide 120° Field of View (FOV): Wide-angle coverage out of the box, customizable to suit specific optical or project requirements.
- Cross-Platform Compatibility: Fully compatible with Windows, Linux, Android, and macOS systems with standard UVC driver support.
- Flexible Form Factor: Dual 38×38mm / 32×32mm board design for easy integration into compact devices and machinery.
Detailed Specifications
| Technical Specification | Detail / Value |
| Model Number | HGR3-H5-38-V1.0 |
| Effective Pixels | 1280 × 800 |
| Sensor Size | 1/2″ Sensor |
| Data Formats | YUV / MJPG |
| Frame Rates | • 1280 × 1024 @ 200 FPS • 640 × 480 @ 400 FPS |
| Field of View (FOV) | 120° (Customizable lens options available) |
| Interface / Connector | USB 3.0 (Plug & Play UVC) |
| Operating Voltage | 5V DC |
| Working Current | 65mA (Low power consumption) |
| Supported OS | Windows, Linux, Android, macOS (with UVC Driver) |
| Audio | No built-in microphone |
| Storage Temperature | -20°C to 80°C |
| Dimensions | 38×38mm (Compatible with 32×32mm mountings) |
Common Applications
The high-frame-rate capability and wide optical format make the HGR3-H5-38-V1.0 ideal for demanding applications, including:
- Industrial Machine Vision: High-speed assembly line inspection, quality control, and defect detection.
- Sports Science & Motion Tracking: Biomechanical analysis, golf swing tracking, and high-speed gesture recognition.
- Robotics & AGVs: Real-time visual odometry, mapping, and obstacle avoidance.
- Medical & Scientific Imaging: Fast event capture in laboratory automation and fluid dynamics tracking.
Why Choose Joyllon?
At Joyllon (www.joyllon.com), we specialize in high-performance camera modules and customized imaging solutions. We offer flexible lens customizations, standard batch production, and dedicated technical support to help integrate vision solutions seamlessly into your hardware products.
Need Custom Optics or Bulk Quotations?
Contact the Joyllon engineering team today to request a quote, request sample units, or discuss custom lens field-of-view (FOV) options.
