Description

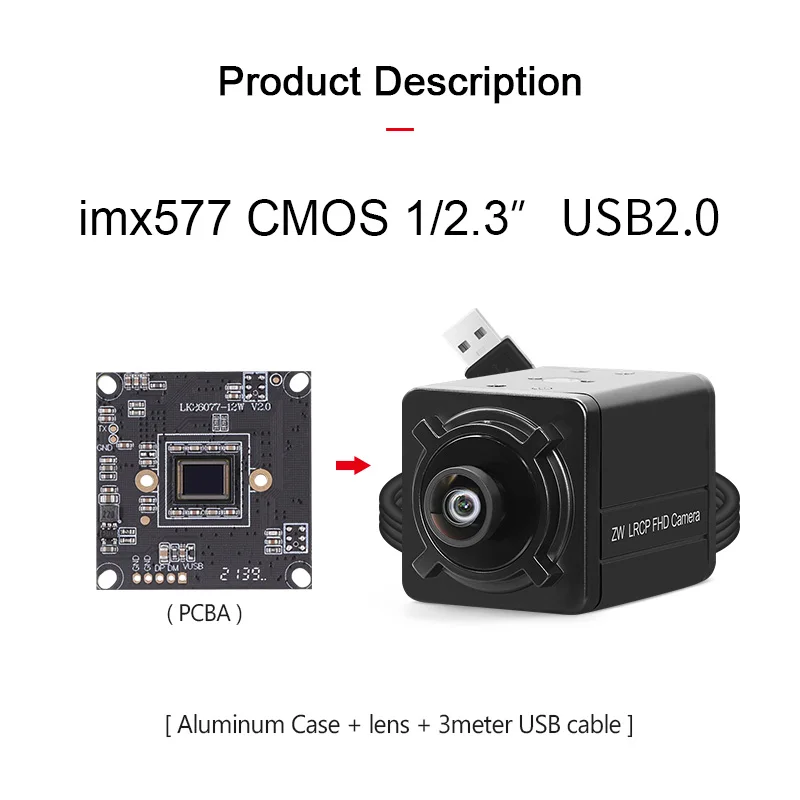

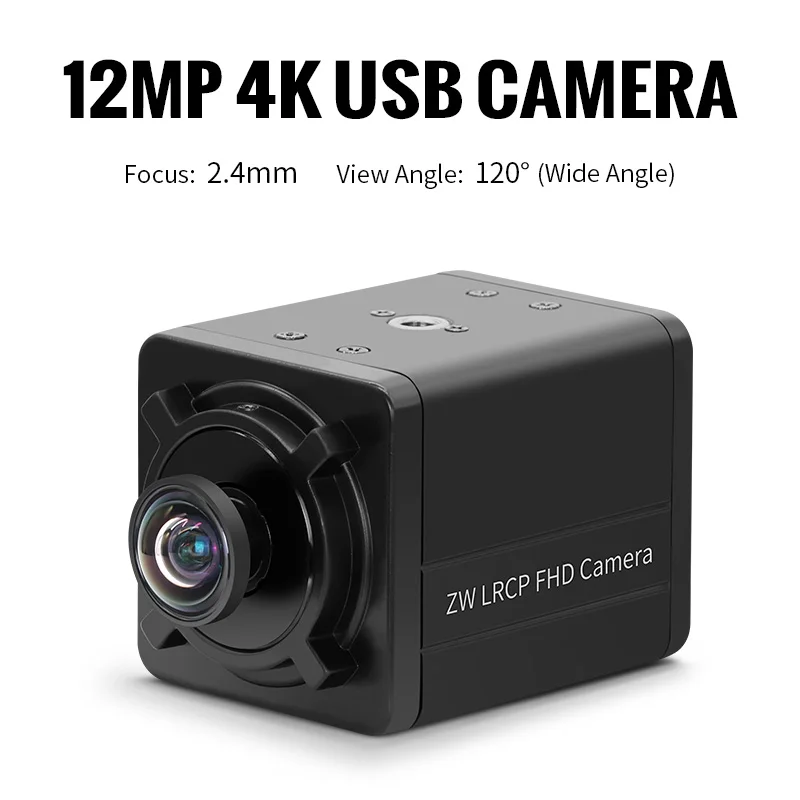

5600 Imx577 12MP 2.4mm Wide Angle Lens 120degree Mini USB hd C amera CMOS UVC Ca mera 4k for PC Laptop Computer

Product specification book
Model	LRCP4K1100W_imx577
Sensor	1/2.3〞（CMOS 1/2.3inch)
Pixel Size	Pixel Size 1.55μm x 1.55μm
Speed	20-30fps ( or lock 30fps )
SNR	39dB
Hardware	Technical grade 1100W pixel
Voltage	5V
Electricity	200mA
Power	2W
Max resolution	3840*2880
Low-light	0.01Lux
HDR	72dB
Time exposure	35ms
output format	MJPGYUY2
Interface	USB2.0
Agreement	UVC OTG communication protocol
Temperature	-20～70℃

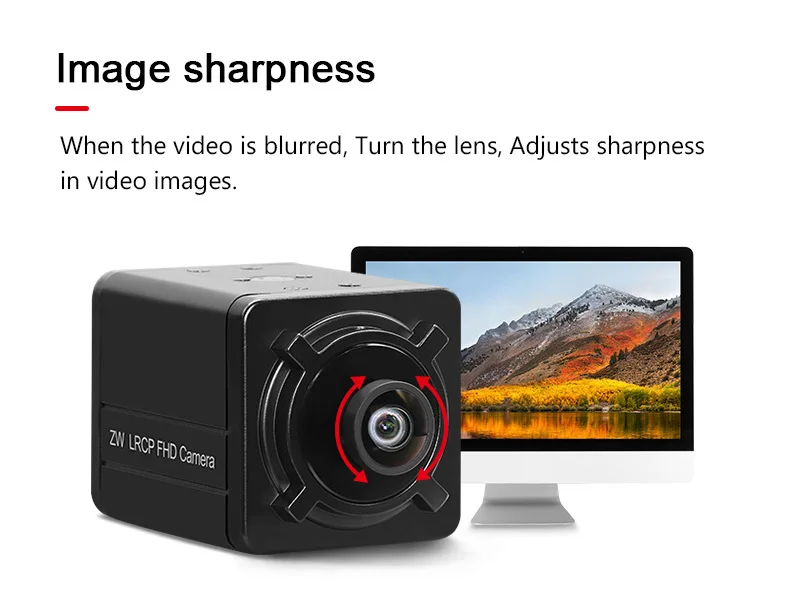

Focus	Manual focus
PCBA size	38*38mm

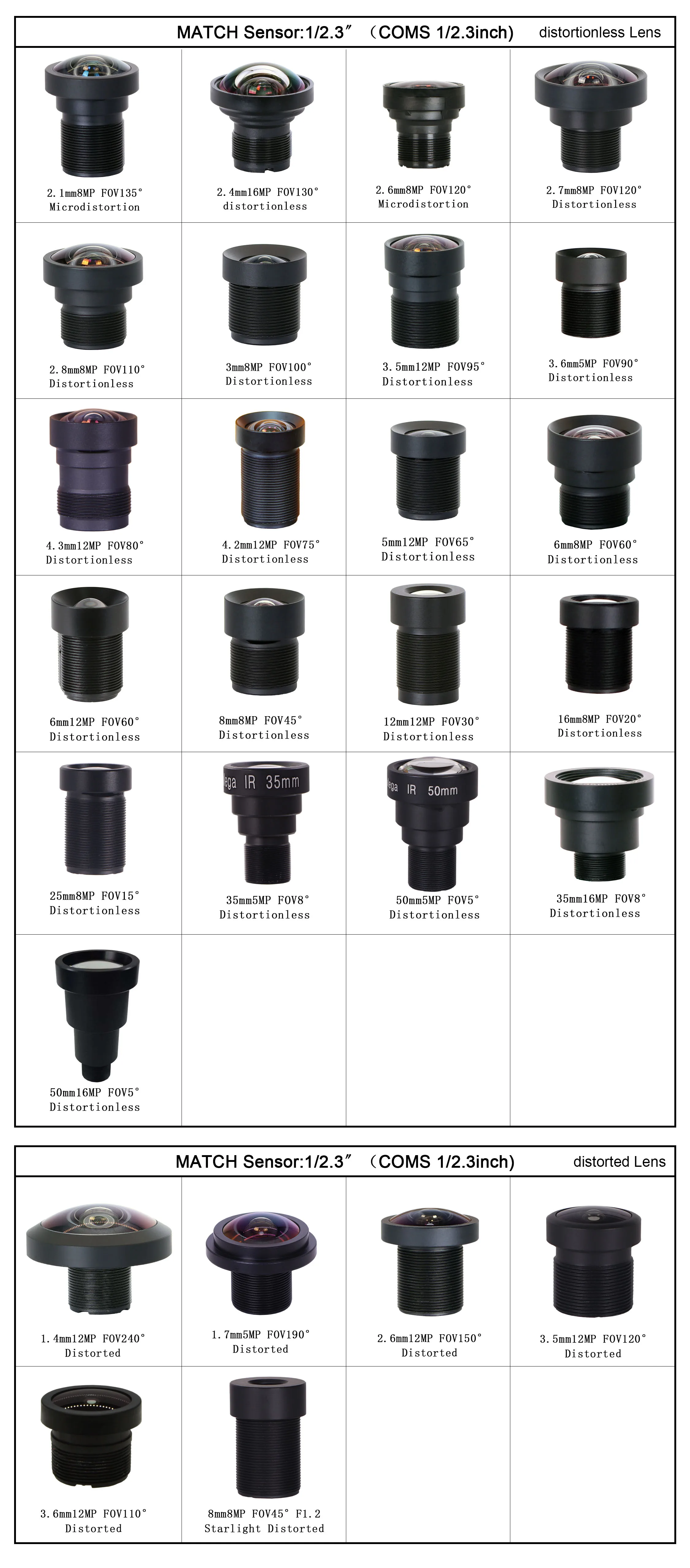

Lens Fov	15°30°45°70°90°…150°180°220°choose
Wave band	400-650nm （ray of light）
image processing	Automatic exposure / Automatic white balance
System	XP/Win7/Win8/Win10/Android4.0 /linux/ IOS

Different resolution speedometers

640*480

1280*720

1920*1080

2592*1944

3840*2160

3840*2880

MJPG

30fps

20fps

YUY2

30fps

10fps

5fps

3fps

2fps

Filter band customization introduction
Band customization	Band characteristics introduction
High definition	Visible light, image color, no color (delivery default this effect)
Infrared 850nm	Visible and infrared light of 850nm can be transmitted, the image is colored, and the color will be biased
Infrared 940nm	Visible and infrared light of 940nm can be transmitted, the image is colored, and the color will be biased
Narrow band 850nm	Wavelength 820-880nm, image will be biased (more black)
Narrow band 940nm	Wavelength 910-970nm, image will be dark (close to black and white)
Narrow band 980nm	Wavelength 960-1000nm, image will be biased (darker, black and white)
Narrow band 1064nm	Wavelength 1040-1080nm, image darker (darker, more black and white)
Narrow band 1310nm	Wavelength 1280-1335nm, image darker (darker, more black and white)
Narrow band 1450nm	Wavelength 1420-1480nm, image darker (darker, more black and white)
Narrow band 1550nm	Wavelength 1520-1580nm, image darker (darker, more black and white)
Near infrared 700-1100nm	Wavelength 700-1100nm, image will be skewed (Partial red)
other bands	405、520、540、580、730…
Default HD filter, need other bands of filters please contact us
