Automotive Camera Module BSD-A1120-2
-
Type: HD Camera Module
-
Model: BSD-A1120-2
-
Dimensions: 16mm (Length) x 16mm (Width)
-
Overview: The BSD-A1120-2 is an ultra-compact high-definition camera module featuring a large 1/2.9″ 2-megapixel image sensor. It delivers crisp 720P/1080P @ 30fps HD AHD video output.
-
Applications: 360° surround-view systems, rearview/backup cameras, and underwater monitoring.
Features
-
High-Performance Sensor: Equipped with a large 1/2.9″ 2MP image sensor.
-
HD Video Output: Supports high-definition AHD output at 720P/1080P @ 30fps, delivering clear and detailed imagery.
-
Advanced Noise Reduction: Integrated with adaptive 2D-DNR and 3D-DNR (Digital Noise Reduction).
-
Wire-Controlled Mirroring: Supports hardware-controlled mirror/normal view switching via a control wire.
-
Wire-Controlled Resolution: Supports hardware-controlled switching between 720P and 1080P resolutions via a control wire.
Technical Specifications
| Parameter | Specification |
| Model | BSD-A1120-2 |
| Pixels | 1080P (2 Megapixels) |
| Sensor & DSP Size | 1/2.9” (FH8536H + GC2053) |
| Resolution | $1920 \times 1080$ / $1280 \times 720$ (Customizable via software) |
| Frame Rate | 25fps / 30fps (Customizable via software) |
| Video System | PAL / NTSC (Customizable via software) |
| Interface | AHD (Soldered wires) |
| Operating Voltage | 3.6V – 5V |
| Operating Current |
5V / 90mA $\pm$ 3mA 3.6V / 120mA $\pm$ 5mA |

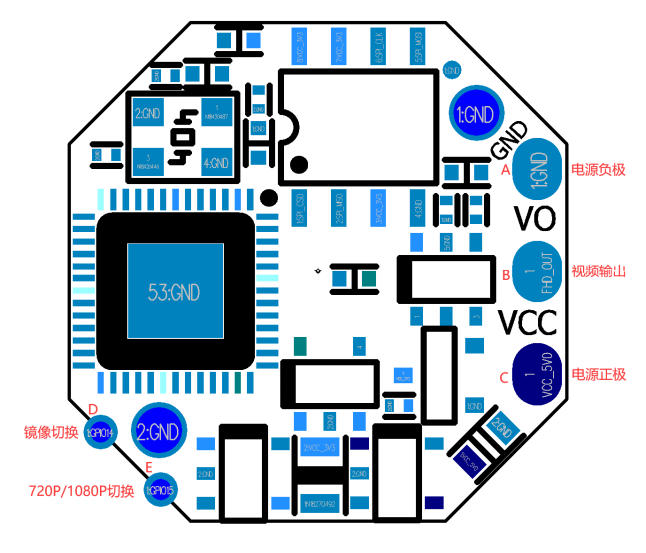

BSD-A1120-2 Vehicle Camera Module Interface Definition
A: Power negative (GND)
B: Video output
C: Power positive (VDD)
D: Image mirror flip, active low, pull low to take effect immediately
E: 720P/1080P switch, active low, pull low and hold for more than 5 seconds, system resets to take effect
FAQ: BSD-A1120-2 Ultra-Compact HD Camera Module
Q1: What is the minimum operating voltage required for the BSD-A1120-2 camera module to function?
A: The module requires a minimum power supply of 3.6V or higher to boot up and operate stably.
Q2: What type of connector interface does the BSD-A1120-2 cable use?
A: The cable assembly comes equipped with a standard BMW connector (aviation-style mini-DIN connector commonly used in automotive electronics).
Q3: Does this AHD camera module support IR-CUT installation?
A: No. The hardware design features a built-in infrared detection sensor. Therefore, it does not support an external IR-CUT mechanism and must be installed using a standard lens mount.
Q4: Does the BSD-A1120-2 module support the installation of LED night-vision lights?
A: No. The compact PCB layout for this solution does not have pre-reserved circuit interfaces for LED expansion.
Q5: Is the video format for this AHD module PAL or NTSC?
A: The default factory firmware is set to PAL format at 25fps. However, it can be flashed with custom firmware to support NTSC format at 30fps.
Q6: Do you offer automotive-grade (AEC-Q100 certified) chipsets for this camera module?
A: ask us
Q7: How many PCB layers are used to manufacture the BSD-A1120-2 module?
A: This module is built on a highly stable, industrial-standard 4-layer PCB.
Q8: Are the mounting screw holes on the BSD-A1120-2 module insulated?
A: No, the mounting screw holes are non-insulated (conductive/grounded). Proper precautions should be taken during housing integration.
