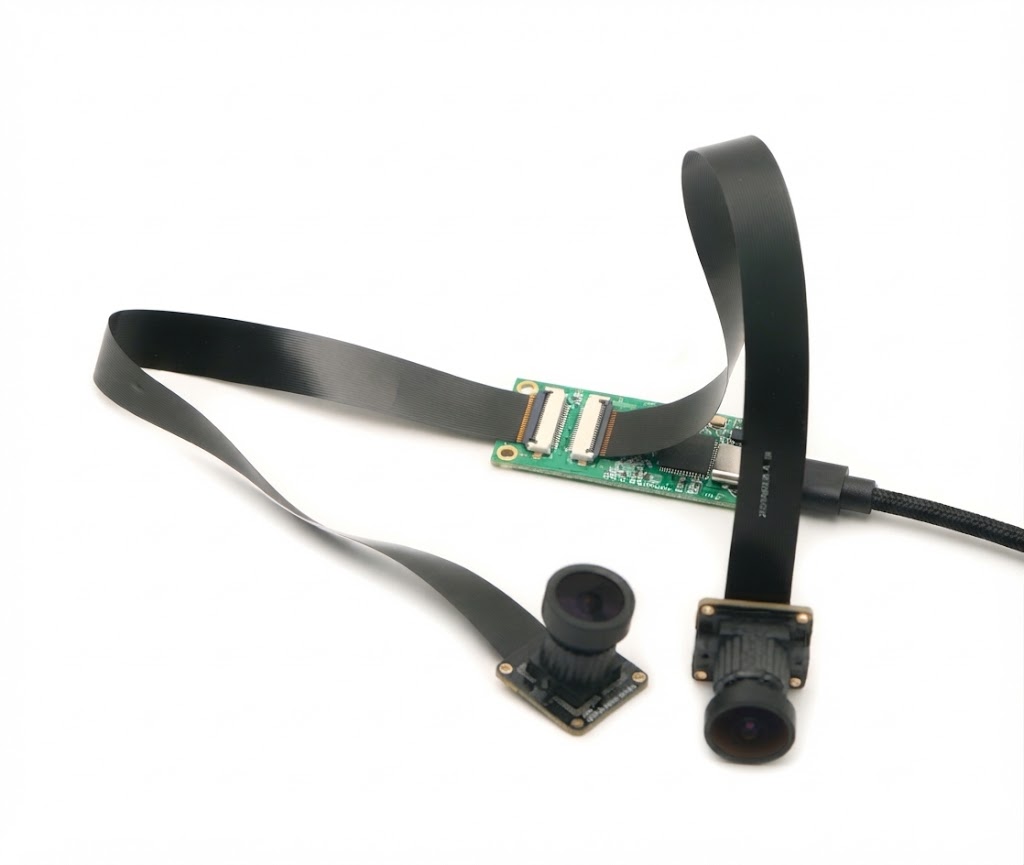

Elevate your embedded vision and smart hardware projects with the HJY20_V12-V1.0 from Joyllon. Engineered for precision and real-time performance, this binocular camera module delivers simultaneous, synchronized dual-image capture on a single screen—making it the ideal hardware foundation for next-generation AI, security, and AR applications.
Key Technical Specifications
| Parameter | Specification Details |
| Model | HJY20_V12-V1.0 |
| Effective Pixels | 1280 x 720 (1MP per sensor) |
| Sensor Size | 1/4 inch |
| Frame Rate | 30 FPS |
| Field of View (FOV) | 110° wide-angle |
| Data Format | YUV / MJPG |
| Interface | USB 2.0 (Backward compatible with USB 3.0) |
| Audio Support | Built-in Microphone (YES) |
| Power Supply | DC 5V (Operating Current: 150 – 170mA) |
| System Compatibility | Windows, Linux, Android, and OS with UVC drivers |
| Operating Temperature | -20°C to 80°C |
| Dimensions | 57.5 mm x 23 mm |
Core Advantages & Features
- True Frame Synchronization: Captures two images simultaneously in the exact same frame, eliminating latency and temporal mismatch for advanced depth-sensing and stereoscopic vision.
- Integrated Audio Capability: Features built-in microphone support for synchronized audio-video recording and communication setups.
- Plug-and-Play UVC Compliance: Seamless integration across multiple platforms without requiring complex proprietary drivers.
- Compact Form Factor: Measuring just 57.5 x 23 mm, it fits effortlessly into space-constrained enclosures and compact hardware designs.
Recommended Applications
Designed for high-reliability environments, the Joyllon binocular module is trusted across diverse industrial and commercial sectors:
- Augmented Reality (AR): Provides dual-channel visual input for immersive wearable setups.
- Public Security & Financial Forensics: Ideal for tamper-proof recording, counter monitoring, and legal documentation equipment.
- Self-Service Terminals & Smart Retail: Enhances security and user interaction in automated kiosks and bank counters.
- Robotics & Automation: Delivers essential binocular stereoscopic data for navigation, obstacle detection, and machine vision.
Ready to integrate high-performance binocular vision into your next device? Explore custom optics and module solutions directly at Joyllon.
What specific application or hardware platform are you integrating this binocular camera module into?
