2MP 1080P Full HD USB Camera Module | OmniVision OV2720, 30FPS, Distortion-Free Industrial Webcam Board

Product Overview

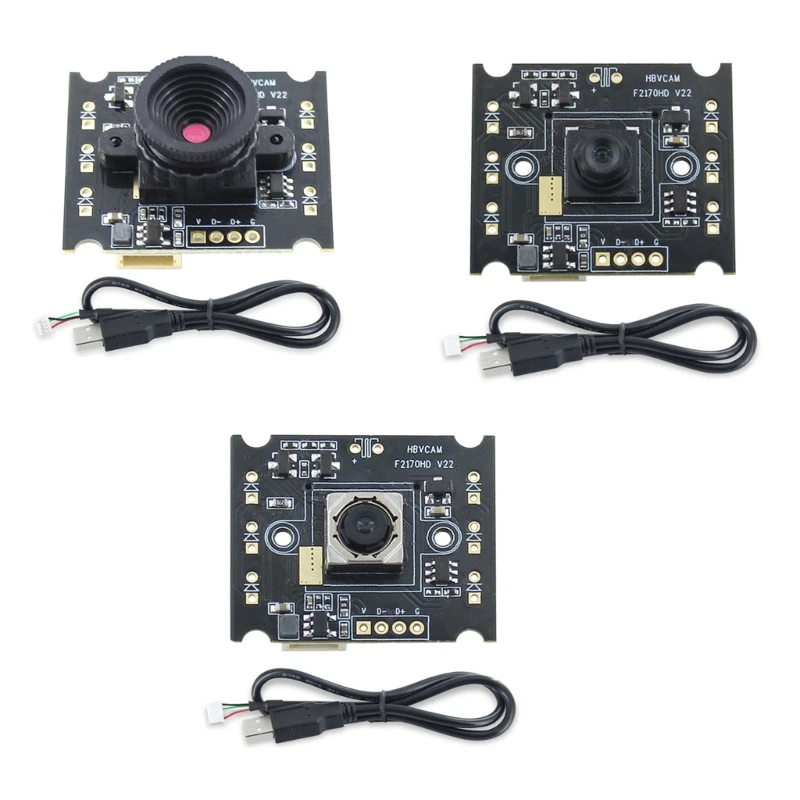

Upgrade your embedded vision systems with our high-performance 2MP 1080P USB Camera Module. Powered by the reliable OmniVision OV2720 (1/5.8″) sensor, this compact camera board delivers crisp, true-to-life images at 30FPS. Engineered with a distortion-free lens, it is the perfect plug-and-play solution for industrial automation, smart kiosks, medical devices, video conferencing, and portable equipment.

Choose from three versatile lens configurations to fit your exact project requirements: 86-Degree Autofocus, 90-Degree Fixed Focus, or 98-Degree Manual Focus.

Key Features

Full HD 1080P & Smooth 30FPS: Experience crystal-clear, fluid video streams with a resolution of $1920 \times 1080$ . Optimized for zero latency in fast-paced industrial or streaming environments.
Distortion-Free Optical Lens: Eliminates fish-eye warping, ensuring accurate geometric representation and true color reproduction.
Ultra-Compact & Flexible Form Factor: Measuring just $30 \times 25\text{ mm}$ , this mini PCBA camera board effortlessly integrates into tight hardware spaces and portable devices.
Plug-and-Play USB 2.0 Interface: Driverless design compatible with Windows, Linux, Android, and macOS. Offers seamless integration into existing hardware and recorder platforms.
Industrial-Grade Durability: Built with high-quality ABS and rugged components, it operates reliably in extreme temperatures ranging from -30°C to 70°C.
Low Power Consumption: Engineered for energy efficiency, making it ideal for battery-operated IoT devices, drones, and handheld equipment.

Technical Specifications

Parameter	Specification
Image Sensor	OmniVision OV2720 (1/5.8” Optical Format)
Resolution	2 Megapixel (2MP), Full HD $1920 \times 1080$
Interface	USB 2.0 High-Speed (Plug-and-Play)
Video Formats	MJPEG / YUY2
Focus Options	86° Auto Focus (AF) / 90° Fixed Focus (FF) / 98° Manual Focus (MF)
Operating Temperature	-30°C to 70°C (Industrial Grade)
Module Dimensions	$30 \times 25\text{ mm}$ ( $1.18 \times 0.98\text{ inches}$ )

Supported Frame Rates & Resolutions

MJPEG:
- $1920 \times 1080$ @ 30FPS
- $1280 \times 720$ @ 30FPS
- $800 \times 600$ @ 30FPS
- $640 \times 480$ @ 30FPS
YUY2:
- $1920 \times 1080$ @ 5FPS
- $1280 \times 720$ @ 10FPS
- $800 \times 600$ @ 10FPS
- $640 \times 480$ @ 30FPS
