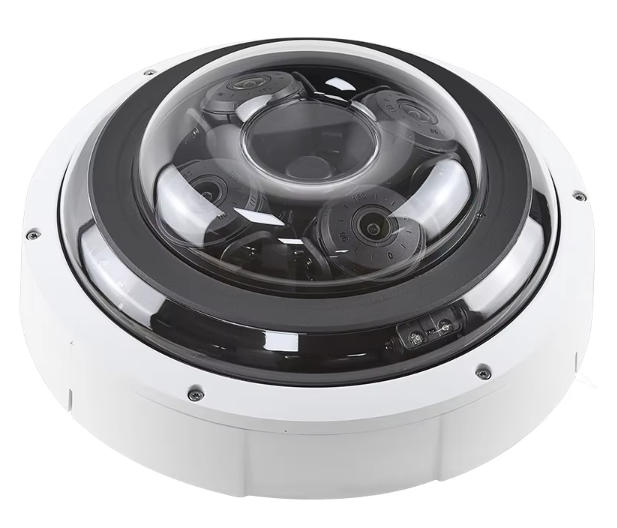

Dahua DH-IPC-PDBW82041-B360-S2 Review: 20MP 4-Directional Panoramic Dome WizMind Camera
Monitoring complex multi-directional spaces—such as major street intersections, massive warehouse floors, or expansive airport terminals—traditionally requires mounting multiple individual network cameras. This drives up installation hardware costs, software licensing fees, and cabling infrastructure.
The Dahua DH-IPC-PDBW82041-B360-S2 4 × 5 MP 4-Directional Panoramic Dome WizMind Network Camera changes the game. By embedding four independent, fully adjustable 5MP sensors into a single rugged dome housing, it provides a total of 20 Megapixels of 360-degree coverage using just one network drop and a single IP address.
Key Features & Product Highlights
1. 20MP Total Resolution Across 4 Adjustable Sensors
Equipped with four high-performance 1/2.7″ CMOS image sensors, this enterprise-grade dome camera outputs independent 5MP streams (2592 × 1944 at 25/30 fps per channel). Each of the four lens modules can be individually panned, tilted, and rotated inside the casing, allowing security teams to frame four entirely different angles simultaneously with zero blind spots.
2. High-Capacity WizMind AI on All 4 Channels
Unlike basic cameras that partition processing power, this multi-sensor powerhouse allows you to deploy deep-learning WizMind AI algorithms across all 4 channels concurrently.
- Perimeter Protection: Deploy advanced IVS rules (Tripwire, Intrusion) with precise human and vehicle classification.
- Behavior Analysis: Track specialized triggers including loitering detection, people gathering, parking detection, abandoned objects, and missing items.
- Face Detection & People Counting: Count foot traffic or detect faces across multiple entry and exit points at the same time.
3. Bandwidth-Saving FlexStream Technology
Streaming four separate 5MP high-resolution feeds can overwhelm local video management networks. Dahua’s innovative FlexStream technology allows the images from all 4 independent channels to be merged and viewed as a single, combined 1-channel stream, significantly lowering bandwidth strains and simplifying live-view monitoring matrices.
4. 30-Meter Smart IR & Low-Lux Mastery
Even in low-light industrial environments down to 0.005 lux, the DH-IPC-PDBW82041-B360-S2 maintains crisp image integrity. When ambient light drops to total darkness, its 8 built-in IR LEDs automatically engage, casting uniform infrared illumination up to 30 meters (98.43 feet) across all fields of view.
5. High-Speed Gigabit Networking & Heavy Hardware Specs
To easily pass 20 megapixels of continuous high-bitrate security data, the unit features a high-speed Gigabit RJ-45 (10/100/1000 Base-T) network port. Supported by a massive 8 GB ROM and 4 GB RAM processing architecture, the system operates latency-free under heavy heavy analytical workloads.
Technical Specifications
| Feature | Specification |
| Image Sensors | Four 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) per channel (20MP Total) |
| Frame Rate | Up to 25/30 fps at full 5MP resolution per sensor |
| IR Distance | Up to 30 m (98.43 ft) via 8 Smart IR LEDs |
| Network Interface | 1x RJ-45 (10/100/1000 Base-T) Gigabit Port |
| I/O Interfaces | Alarm: 3 in, 2 out / Audio: 1 in, 1 out / RS-485 |
| Edge Storage | Micro SD slot supporting up to 256 GB |
| Vandal/Weather Ratings | IP67 Weatherproof / IK10 Vandal-resistant |
| Power Supply | 12 VDC / PoE (802.3af) |
Why the DH-IPC-PDBW82041-B360-S2 is an Enterprise Essential
All-Weather Vandal-Proof Endurance
Encased in a heavy-duty metal chassis, this panoramic dome carries an IK10 vandal-proof rating to survive heavy impacts and intentional tampering, alongside an IP67 weatherproof rating ensuring complete safety against dust storms and heavy downpours. It also features optional anti-corrosion protection for marine or chemical environments.
Electronic Image Stabilization & Defog
High-mounted cameras are often susceptible to image blur caused by high winds or passing heavy trucks. With built-in Electronic Image Stabilization (EIS) and smart digital defog algorithms, this camera dynamically stabilizes shaking pixels to deliver clear, actionable forensic video data regardless of external weather elements.
Military-Grade Network Security
Designed for government, financial, and enterprise networks, it features a hardened cyber security architecture. It enforces configuration encryption, video encryption, trusted boot protocols, IP/MAC address filtering, secure HTTPS channels, and 802.1x network access control.
Ideal Use Cases
- Commercial Crossings & Intersections: Monitor all four directions of a street or campus corridor junction simultaneously using a single mount point.
- Large Open Warehouses: Position the dome centrally to track four distinct rows of high-value inventory shelving lanes.
- Airport & Transit Lobbies: Deploy simultaneous people counting and face detection over wide passenger queuing zones.
Final Verdict
The Dahua DH-IPC-PDBW82041-B360-S2 represents the pinnacle of multi-directional, wide-area surveillance. By integrating four fully adjustable 5MP sensors, standalone channel-wide WizMind AI, FlexStream optimization, and a rugged IK10/IP67 dome casing, it delivers ultimate situational awareness while significantly slashing multi-camera deployment costs.
