Discover the HJ2053-2093-V1.0 dual-lens wide dynamic camera module from Joyllon. Features a 105dB dynamic range, 1920×1080 resolution, and super-thin build. Ideal for face recognition, access control, and smart terminals.
Product Overview

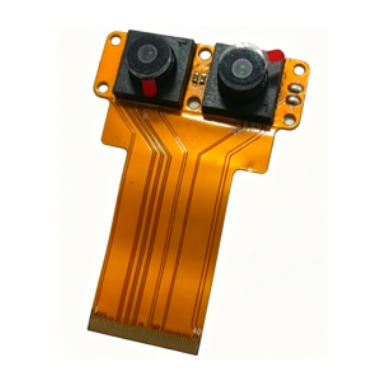

The HJ2053-2093-V1.0 Dual-Lens Wide Dynamic Camera Module is engineered for high-performance embedded vision applications. Combining a wide dynamic range (WDR) of 105dB with a compact, ultra-thin architecture, this 2-megapixel camera delivers crystal-clear image capture even in challenging lighting conditions. It is tailor-made for smart security, automated gates, and biometric identification systems.
Key Features & Applications
- High Dynamic Range (105dB): Performs reliably in high-contrast environments, capturing clear details in both bright and dark areas.
- Ultra-Thin & Compact Structure: Designed for space-constrained devices without sacrificing performance.
- Target Applications: Perfect integration for temperature detection, face recognition terminals, access control systems, pedestrian gates, and object recognition equipment.
Technical Specifications
- Effective Pixels: 1920 × 1080 (2MP)
- Lens Size / Sensor: 1/2.7″
- Data Format: YUV / MJPG
- Dynamic Range: 105dB
- Frame Rate: 30 FPS
- Field of View (FOV): 72°
- Interface: USB 2.0 (MIPI compatible)
- Operating Voltage: 5V
- Operating Current: 80 – 100 mA
- Audio Support: Yes
- System Compatibility: Windows, Linux, Android, and OS with UVC drivers
- Storage Temperature: -20°C to 70°C
- Product Size: 52 mm × 14 mm
