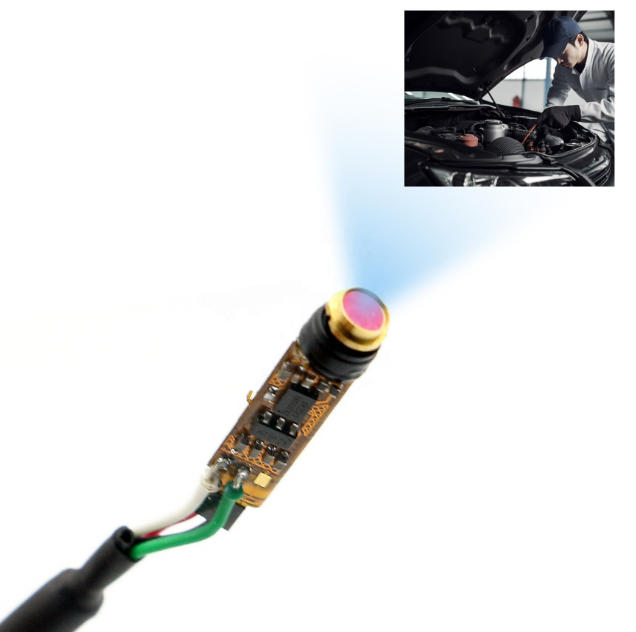

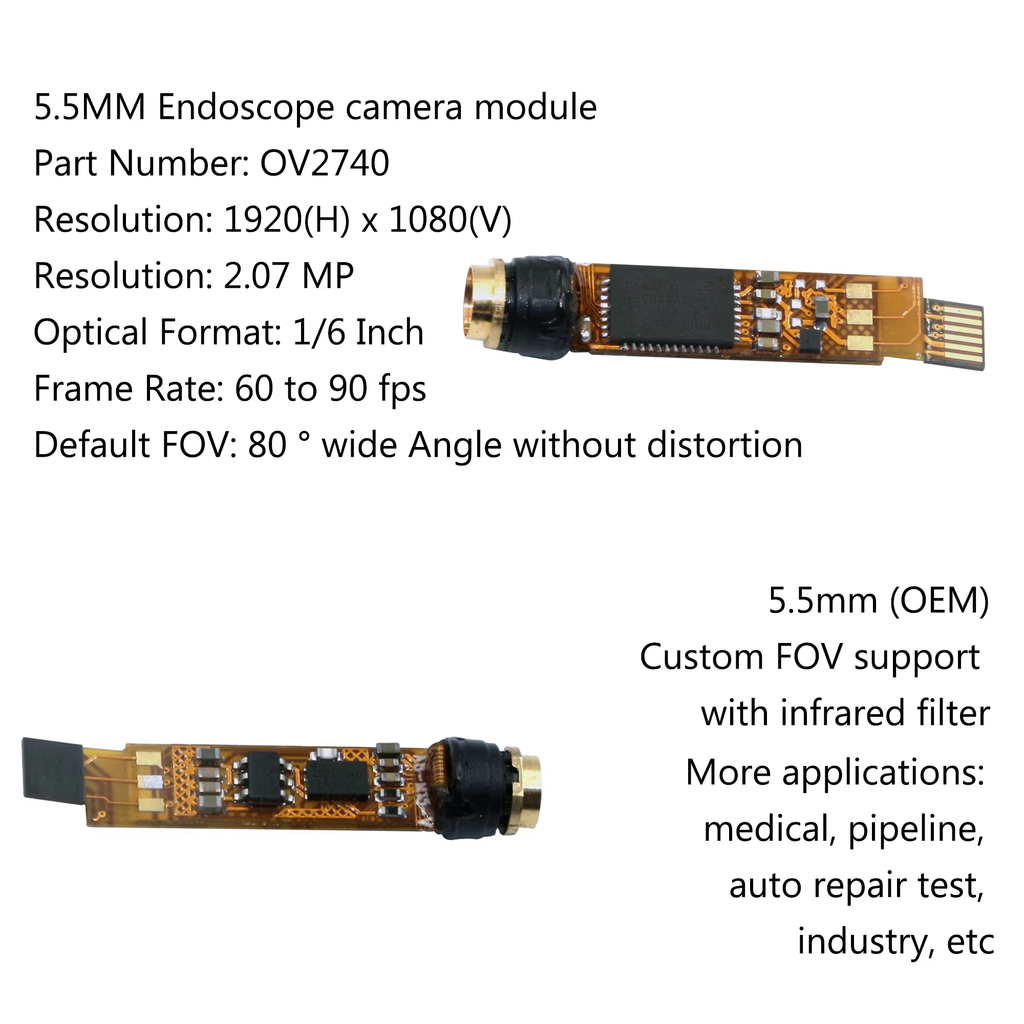

The 5.5mm 1080P 60fps Endoscope Camera Module (Model: USB 5.5MM) is engineered for ultra-compact medical devices and non-destructive industrial testing. Integrating OmniVision’s 1/6-inch OV2740 CMOS sensor, this micro camera module delivers full 1080p HD video at a smooth 60 frames per second, featuring an integrated infrared filter and a wide 140° field of view (FOV).
Designed for seamless OEM/ODM system integration, it combines a high-sensitivity 1.4µm pixel architecture with a plug-and-play USB 2.0 UVC interface for diagnostic and inspection hardware.
Key Technical Specifications
| Parameter | Technical Specification |
| Module Model | USB 5.5MM |
| Outer Diameter | 5.5 mm |
| Image Sensor | OmniVision OV2740 (1/6″ Optical Format) |
| Pixel Size | 1.4 µm × 1.4 µm |
| Active Image Area | 2728 µm × 1549 µm |
| Maximum Resolution | 1920 (H) × 1080 (V) (2 Megapixel) |
| Frame Rate | 1080P @ 60fps (MJPEG) / VGA @ 60fps |
| Output Formats | MJPEG / YUV2 (YUYV) |
| Field of View (FOV) | 140° Wide Angle |
| IR Filter Integration | Built-in Infrared Cut Filter |
| Signal-to-Noise Ratio (SNR) | 38.3 dB |
| Dynamic Range | 42 dB @ 8x gain |
| Sensitivity | 553 mV/Lux-sec |
| Minimum Illumination | 1 Lux |
| Shutter Type | Electronic Rolling Shutter |
| Interface & Protocol | USB 2.0 High Speed / UVC (Drive-free) / OTG Support |
| Auto Controls | Exposure (AEC), White Balance (AEB), Gain (AGC) |
| Adjustable Image Controls | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Backlight Contrast |
| Power Supply & Current | USB BUS Power 5P / DC 5V / 100mA |
| Operating Temperature | -20°C to +70°C |
| OS Compatibility | Windows (XP/7/8/10/11), Linux (v2.6.26+), Android 4.0+ (UVC) |
Core Engineering Features
- Ultra-Slim 5.5mm Form Factor: Engineered to navigate tight mechanical clearances, narrow lumens, pipe bends, and micro-cavities without compromising image resolution.
- 60fps High-Speed Full HD Output: High frame-rate capture eliminates motion blur in dynamic medical procedures and rapid inline industrial scanning.
- Low-Power OmniVision PureCel® Architecture: The OV2740 sensor minimizes thermal dissipation in enclosed probe housings while maintaining a high signal-to-noise ratio (38.3 dB).
- Driverless UVC & OTG Compliance: Standard USB 2.0 video class implementation allows direct cross-platform integration across Windows, Linux, and Android-based handheld monitors or tablets.

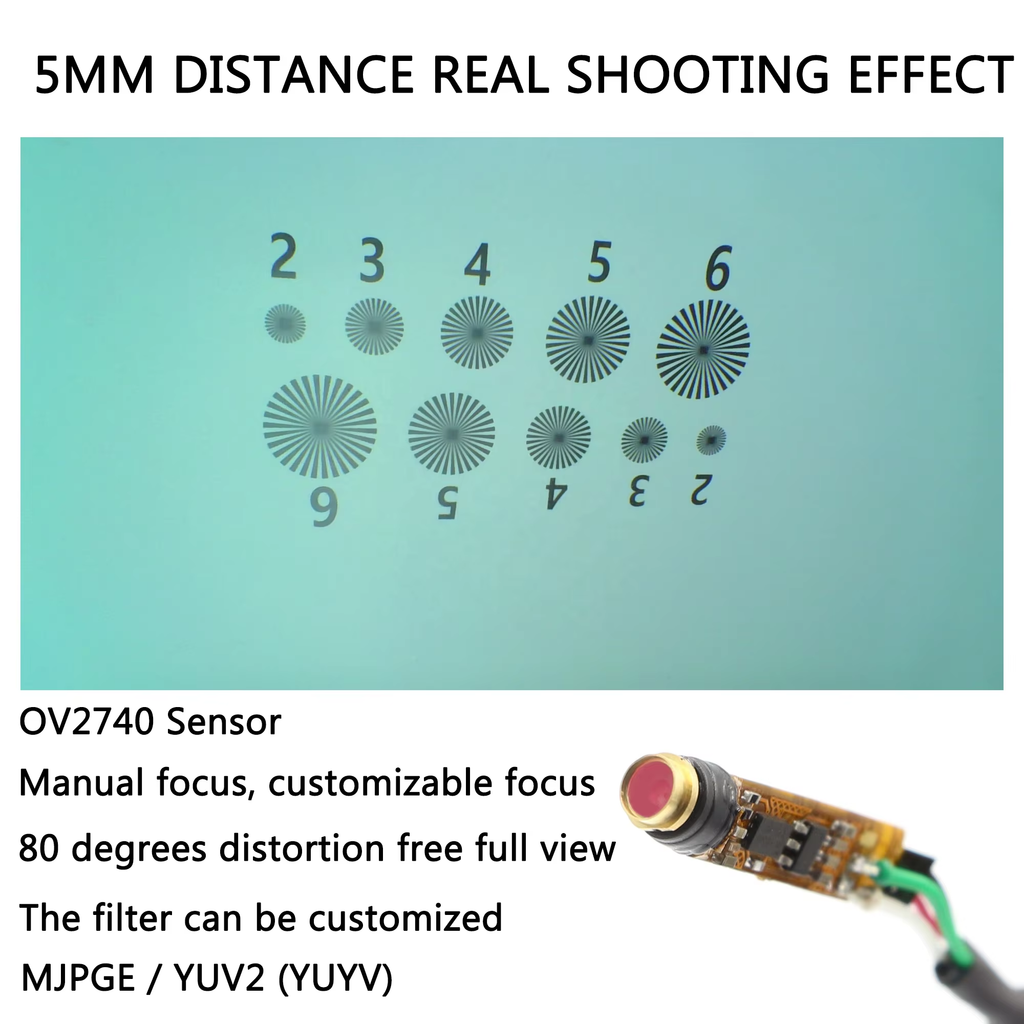

- Optics & IR Optimization: Features high-definition macro optical lenses combined with an integrated IR filter for precise color accuracy under artificial LED illumination.
Target Applications
- Medical Systems: Flexible and rigid endoscopes, ENT scopes, veterinary diagnostic equipment, visual airway instruments, and surgical aids.
- Industrial NDT & Inspection: Automotive engine cylinder examination, pipeline integrity checks, sewer cameras, aviation turbine maintenance, and cavity inspection tools.
- Smart Security & Robotics: Micro robotic vision, narrow-gap security surveillance, visual doorbells, and industrial pattern recognition equipment.
Custom OEM/ODM Camera Module Manufacturing Services
As a specialist in optical imaging solutions, Joyllon provides end-to-end OEM and ODM customization for client-specific applications worldwide:
- Optical Tailoring: Custom FOV angles, macro focal distances, depth of field adjustments, and specific lens constructions.
- Flexible & Rigid PCB Design: Pinout adaptations, custom cable lengths, micro USB/Type-C harness configurations, and ultra-narrow substrate designs.
- Sensor Sourcing Network: Customized integration utilizing image sensors from OmniVision, Sony, Samsung, SK Hynix, and GalaxyCore.
- Enclosure & Lighting Integration: Custom stainless steel or medical-grade outer sleeves with integrated ring LED boards and waterproof sealing (IP67/IP68).
For technical inquiries, datasheet requests, or custom prototype development, contact the engineering team at www.joyllon.com.
