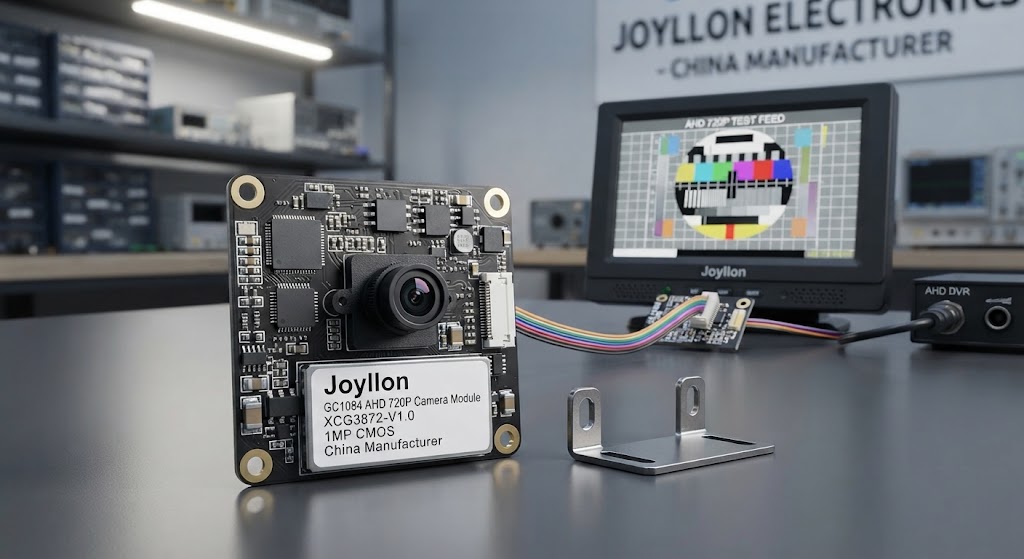

Are you looking for a reliable, compact, and high-performance AHD camera module from a trusted China manufacturer? Joyllon presents the GC1084 AHD 720P Camera Module (XCG3872-V1.0). Designed for embedded vision, automotive security, and industrial surveillance, this 1-megapixel imaging module delivers exceptional clarity, robust low-light capability, and long-distance analog signal transmission.
Key Technical Specifications
- Image Sensor: Powered by the 1/4.5-inch GalaxyCore GC1084 CMOS sensor with a 2.72μm x 2.72μm FSI pixel layout.
- Resolution & Active Array: Delivers crisp 1280 x 720 (720P) HD video at a max frame rate of 60fps at full size (and up to 120fps in binning mode).
- Optics & Field of View: Features a wide FOV (D/H/V): 111° / 92.7° / 48.7° with a 12° linear micro lens chief ray angle (CRA).
- Compact Form Factor: Engineered with a rigid 38mm x 38mm x 25.2mm module size, optimized for space-constrained enclosures.
- Interface & Signal Type: Standard AHD (Analog High Definition) interface for seamless integration with DVRs and long-distance coaxial setups.
- Power Efficiency: Ultra-low power consumption of just 126mW at 720P 30fps.
- Advanced Control Features: Supports PLL, master/slave frame sync, windowing, mirror/flip, binning mode, and up to 64X maximum analog gain.
- Industrial Temperature Range: Operates reliably from -30°C to 85°C, ensuring stability in harsh outdoor or industrial environments.
Why Choose Joyllon as Your AHD Camera Module Manufacturer?
As a premier China manufacturer specializing in advanced camera modules, Joyllon provides robust engineering support, customizable hardware options, and stable supply chains for global system integrators and OEMs. Whether you are scaling up production for fleet dash cams, industrial monitoring terminals, or smart home security, our modules are built to meet rigorous international quality standards.
Explore custom specifications and bulk ordering options today at www.joyllon.com.
