Description
HD Surround-View Camera Module AHD-F32
-
Type: HD Camera Module
-
Model: AHD-F32
-
Dimensions: 32mm (Length) x 32mm (Width)
-
Overview: The AHD-F32 is a high-definition camera module equipped with a large 1/2.9″ 2-megapixel image sensor. It delivers high-definition AHD video output at 720P/1080P @ 30fps.
-
Applications: 360° surround-view systems, rearview/backup cameras, bus surround-view systems, and dashcams (DVRs).
Features
-
Premium Sensor: Utilizes a large 1/2.9″ 2MP image sensor.
-
HD Video Output: Supports 720P/1080P @ 30fps AHD output for crisp, detailed imagery.
-
Advanced Noise Reduction: Features adaptive 2D-DNR and 3D-DNR (Digital Noise Reduction).
-
Wire-Controlled Mirroring: Supports hardware-controlled mirror/normal view switching via control wire.
-
Wire-Controlled Resolution: Supports hardware-controlled switching between 720P and 1080P resolutions via control wire.
Technical Specifications
| Parameter | Specification |
| Model | AHD-F32 |
| Pixels | 1080P (2 Megapixels) |
| Sensor & DSP Size | 1/2.9” (FH8536H + GC2053) |
| Resolution | $1920 \times 1080$ / $1280 \times 720$ (Customizable via software) |
| Frame Rate | 25fps / 30fps (Customizable via software) |
| Video System | PAL / NTSC (Customizable via software) |
| Interface | AHD (Soldered wires) |
| Operating Voltage | 12V |
| Operating Current | 55mA |
| Operating Temperature | 42°C (Note: This is likely the standard running temperature or a translation quirk in the original text; typical automotive limits are usually -20°C to +70°C) |
| PCB Dimensions | 32mm $\times$ 18mm (Length $\times$ Width) |

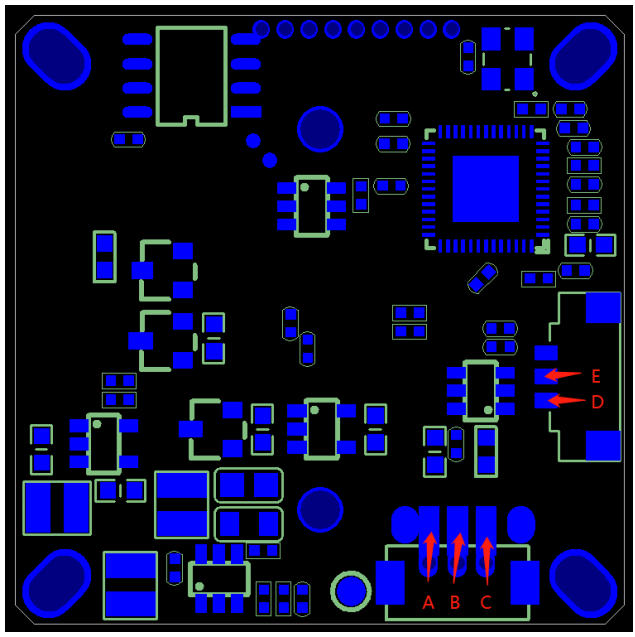

AHD-F32 HD Surround-View Camera Module Interface Definition:
Figure 5-1
A: Power 12V
B: GND (Ground)
C: Video Output
D: Mirror (Mirror flip control)
E: 720P/1080P Switching
Automotive Electronics CCTV Camera Module Car Camera Sensor AHD Board Camera Embedded Camera Module Sony Sensor Alternative Surround View System Components
FAQ: AHD-F32, ACF-B2, and A1120-B18 HD Automotive Camera Modules
Q1: Do the AHD-F32, ACF-B2, and A1120-B18 camera boards support a 24V power supply?
A: Our standard warehouse stock only supports 12V. We do not keep 24V variants as ready stock. However, for sample requests, we can arrange for our factory to modify the hardware to support a 24V configuration.
Q2: What is the maximum input voltage threshold for the 24V power supply version?
A: The maximum allowable voltage is 30V. Exceeding 30V carries a high risk of burning out the mainboard components.
Q3: Do these AHD surround-view camera modules support IR-CUT installation?
A: No. The hardware chipset solution features a built-in infrared detection sensor. Consequently, the modules do not support IR-CUT and can only accommodate standard lens mount installations.
Q4: Do these AHD surround-view modules support LED light installations?
A: No. The PCB layout and circuitry for this specific solution do not have pre-reserved interfaces for LED illumination.
Q5: Do the AHD surround-view modules output in PAL or NTSC format?
A: The default factory setting is PAL format at 25fps. However, the video format can be switched to NTSC format at 30fps via a firmware flash.
Q6: Do you offer automotive-grade (AEC-Q100 certified) chipsets for these AHD camera modules?
A: Currently, we do not offer automotive-grade chipset options for these specific modules.
Q7: How many PCB layers are used in these AHD surround-view camera modules?
A: These modules utilize a high-reliability 4-layer PCB design.
Q8: Are the mounting screw holes on the AHD surround-view modules insulated?
A: No, the mounting screw holes are non-insulated (grounded/conductive).
