5MP Face Recognition Camera Module: High-Performance Hi3516DV500 + IMX675 Solution | Joyllon

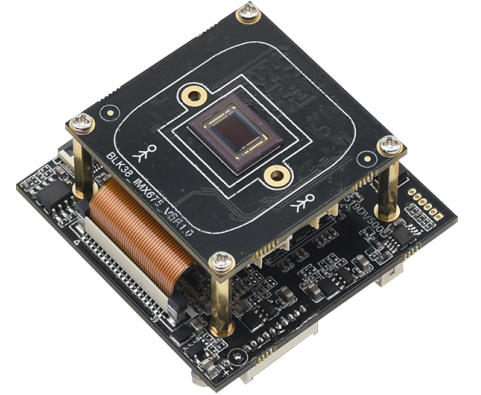

Hi3516DV500+IMX675 Face Recognition Camera Module

The iHF675G(FS) is an industrial-grade camera module engineered for intelligent security and identity verification. Powered by the high-performance Hi3516DV500 SoC and the Sony IMX675 5MP low-light CMOS sensor, this module features advanced deep-learning facial recognition algorithms. It is an ideal solution for VTM/ATM terminals, smart access control, automated turnstiles, and edge computing video analysis.

Key Features

• Deep Learning AI Algorithms: Built-in intelligent algorithms support detection of up to 32 faces per frame, with support for a 50,000-face database and 100,000 recognition records.
• Superior Low-Light Imaging: Utilizing the Sony IMX675 sensor and AIISP image enhancement, it delivers clear, high-quality images in extremely low-light conditions (0.001Lux @ F1.2).
• Flexible System Integration: Fully compatible with ONVIF and GB28181 standards. Includes a comprehensive SDK for secondary development, supporting CGI, HTTP, and WebSocket protocols.
• Plugin-Free Browsing: Supports live, plugin-free preview via modern browsers, including Chrome, Edge, and Firefox.
• Modular Hardware Design: Features a versatile double-board structure (50mm/38mm options) suitable for compact integration into various hardware terminals.

---

Technical Specifications

Feature	Specifications
Main Processor	Hi3516DV500 (Dual-core ARM Cortex A55 @ 850MHz)
Image Sensor	1/2.8″ 5MP Sony IMX675 Low-light CMOS
Min. Illumination	Color/BW: 0.001Lux @ F1.2
Resolution	Max 2592 × 1520 @ 30fps
WDR	100 dB
Video Compression	H.265+/H.265/H.264
AI Capabilities	Face capture/recognition, Whitelist/Blacklist/VIP management
Interface	RJ45 Ethernet, USB 2.0 (supports 4G/WiFi expansion), Audio I/O
Operating Temp.	-20℃ to +60℃
Power Supply	DC 12V / 5W

---

Frequently Asked Questions (FAQ)

Q: Does this module support third-party integration?

A: Yes, it is designed for developers. It supports standard industry protocols like ONVIF and GB28181 and provides a rich SDK for custom secondary development using CGI, HTTP, and WebSocket.

Q: Can it be used in harsh lighting environments?

A: Yes. The module features 100dB WDR and specific AI-driven face capture modes optimized for both backlight and normal lighting environments.

Q: Is browser-based management supported?

A: Absolutely. The module supports plugin-free preview on modern web browsers such as Google Chrome, Microsoft Edge, and Firefox.

---
