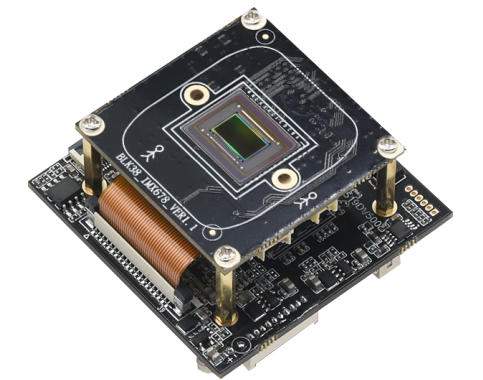

4K 8MP 30x Optical Zoom AI Network Camera Module (HD678K)
The HD678K (Hi3519DV500 IMX678 solutions) is a high-performance, ultra-low-light 8MP 30x Optical Zoom Network Camera Module engineered for advanced security surveillance, ITS (Intelligent Transportation Systems), and industrial inspection. Powered by the high-efficiency Hi3519DV500 chipset and a premium 1/1.8″ Sony IMX678 Starvis 2 (Blacklight) CMOS sensor, this module delivers flawless 4K UHD video at high frame rates up to 60FPS.
Equipped with cutting-edge AIISP (AI Image Signal Processing), the HD678K achieves unparalleled 0.0001 Lux color night vision, capturing crisp, noise-free details in near-total darkness.
Key Features
- True 4K UHD with High Frame Rate: Supports up to 8MP (3840×2160) video streaming and ultra-smooth performance up to 60FPS.

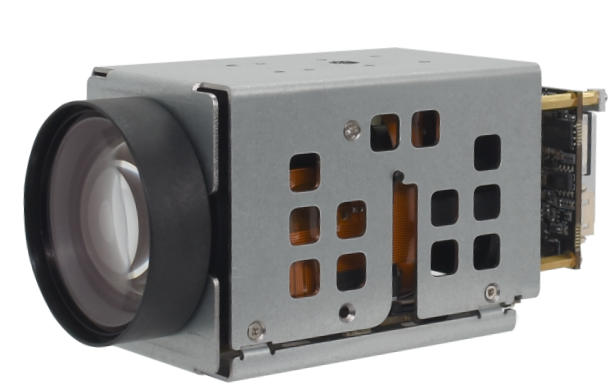

- 30x Optical Zoom Lens: Powerful 7.1mm to 171.9mm focal length with rapid ~3-second fast focus.
- AIISP Next-Gen Image Enhancement: Utilizes AI algorithms to dramatically reduce noise and boost clarity in low-light environments.
- Ultra Low-Light Performance: Color and B/W imaging down to 0.0001 Lux @ F1.0.
- Multi-Protocol & Private Integration: Supports standard ONVIF, GB28181, CGI, HTTP, and WebSocket, alongside private protocols for HIK and DH.
- Developer-Friendly SDK: Complete SDK packages provided for secondary development, custom AI features, and backend system integration.
- Plug-in Free Web Access: Fully compatible with Google Chrome and other Chromium-core browsers without requiring third-party plugins.
Specifications & Technical Parameters
| Category | Parameter | Specification Details |
| Core System | Master Processor | Hi3519DV500, ARM Cortex A55 @ 850MHz Dual-Core |
| Memory & Storage | 8Gbit LP DDR4 / 1Gbit SPI Nor Flash (2Gbit batch optional) | |
| Optics & Image | Image Sensor | 8MP 1/1.8″ IMX678 Blacklight CMOS Sensor |
| Min. Illumination | Color: 0.0001 Lux @ F1.0, B/W: 0.0001 Lux @ F1.0 | |
| Focal Length & Aperture | 7.1mm ~ 171.9mm (ยฑ5%) / F1.67 ~ F3.67 | |
| Optical Zoom Speed | Approx. 3 seconds (Wide to Tele) | |
| Field of View (Horizontal) | 54.82ยฐ ~ 3.7ยฐ | |
| Video & Network | Resolution & Frame Rate | Main stream up to 30fps @ 4K (3840×2160), max output 60FPS |
| Compression Standard | H.265+ / H.265 / H.264 | |
| Network Protocols | ONVIF, GB28181, HTTPS, RTSP, RTMP, WebSocket, SIP, etc. | |
| Simultaneous Live Views | Up to 12 channels | |

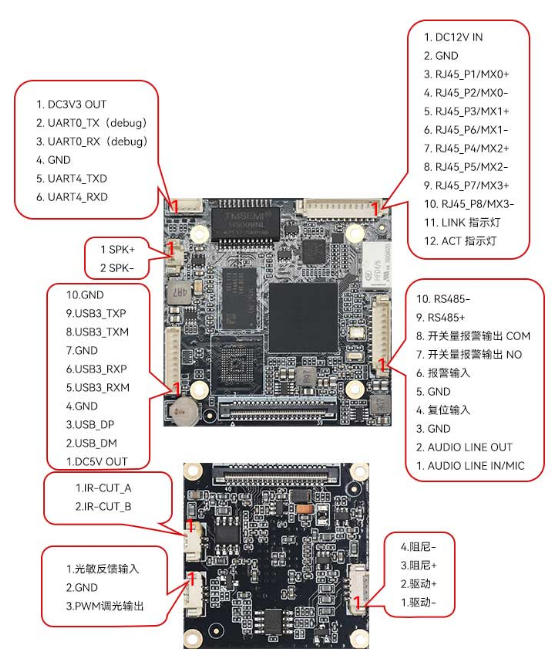

| Interfaces | Network / Audio | 1x RJ45 (10M/100M), 1-ch Audio In / 1-ch Audio Out |
| USB Extension | 1x USB 2.0 (5V), supports 4G/Dual-band Wi-Fi/TF Card expansion | |
| Lighting Control | Photoreceptor detection input, PWM dimming support | |
| Physical Specs | Dimensions & Weight | 93.1 x 50.3 x 55 mm / 235g ๏ผall in one) PCBA: 50ร50ร10.8mm and 38ร38ร10.8mm (dual layer) |
| Operating Temp / Power | -20ยฐC to +60ยฐC / DC12V (4.1W Max) |
Application Scenarios
- PTZ Dome & Bullet Cameras: Perfect core block module for outdoor high-speed PTZ cameras.
- City Surveillance & Traffic Monitoring: High frame rate (60FPS) and 30x zoom enable accurate license plate recognition and vehicle tracking.
- Industrial Automation & Robotics: Compact form factor and robust SDK support easy integration into automated inspection lines and AI vision systems.
