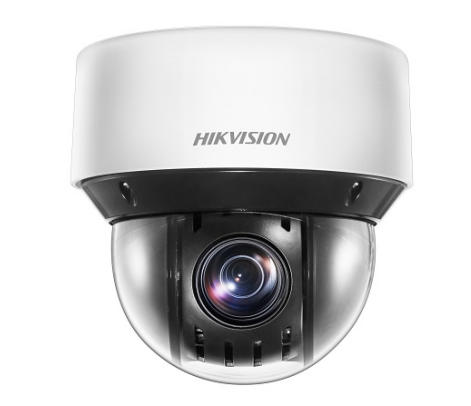

Enhance your security infrastructure with the Hikvision DS-2PT7D20IW-DE(12X)(S6)(B). This professional-grade 2MP IR Network PTZ Dome Camera is engineered for high-performance monitoring, offering 12x optical zoom and exceptional low-light capabilities. Designed for versatile deployment, it provides crystal-clear surveillance in challenging environments.
Key Features & Performance
- Superior Image Quality: Captures high-definition 1920 × 1080 video at 30fps with 120dB WDR for clear images in strong backlight conditions.
- Starlight Low-Light Technology: Exceptional sensitivity (Color: 0.005 Lux; B/W: 0.001 Lux) ensures color surveillance even in near-total darkness.
- Powerful Zoom: Features 12x optical zoom and 16x digital zoom, allowing for precise detail identification at a distance.
- Advanced Smart Detection: Built-in intelligence for region intrusion, line crossing, motion detection, and object removal/left-behind tracking.
- Robust Night Vision: Equipped with an efficient IR array, providing up to 50m of infrared range for secure night-time monitoring.
- Intelligent Tracking: Supports manual, event-based, and smart motion tracking to follow subjects automatically.
- Easy Installation: Supports PoE+ (802.3at) for simplified wiring and power delivery.
- Durable Design: Rated IP66 for weather resistance and equipped with high-level lightning and surge protection.
Technical Specifications
| Feature | Specification |
| Max Resolution | 1920 × 1080 @ 30fps |
| Optical Zoom | 12x |
| IR Range | Up to 50m |
| Storage | Built-in Micro SD/SDHC/SDXC slot (up to 256GB) |
| Video Compression | H.265 / H.264 / MJPEG |
| Protocols | Hikvision SDK, Open Network Video Interface, ISAPI, GB/T28181 |
| Power | 12 VDC & PoE+ |
| Protection | IP66, 6000V Lightning/Surge Protection |
Ideal Applications
The Hikvision PTZ Dome is the perfect choice for wide-area security, including:
- City plazas and public squares
- Parks and tourist attractions
- Transportation hubs (Railway stations, airports)
- Perimeter security for residential and commercial complexes
- Rivers, forests, and outdoor surveillance sites
Recommended Accessories
To ensure a secure and clean installation, consider the following compatible mounts:
- DS-1691ZJ / DS-1691ZJ-L / DS-1691ZJ-M: Wall mounts for versatile positioning.
- DS-1671ZJ-SD11: Specialized bracket for mounting stability.
- DS-1280ZJ-SD11 & DS-1605ZJ: Junction boxes and additional mounting hardware.
