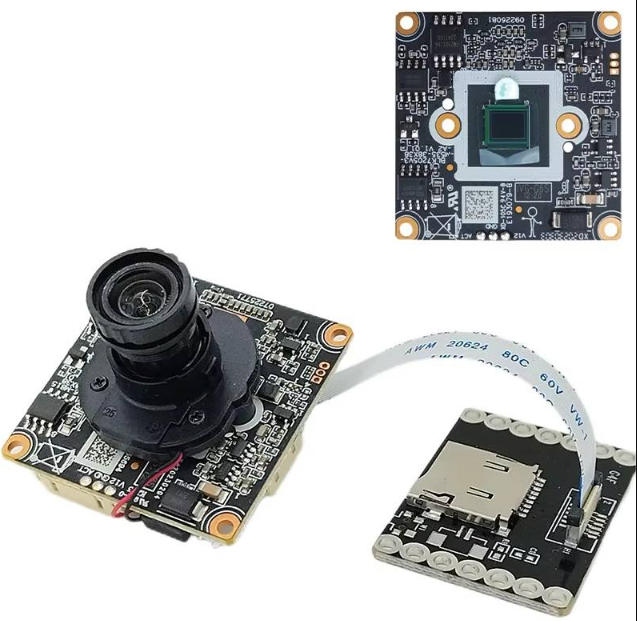

GK7205V300 IP Camera Module
The IVG-G6S (G370) is a commercial-grade 6.0MP HD Starlight AI IP Camera Module Board designed for high-resolution CCTV systems, edge-AI vision applications, and OEM security hardware. Powered by the Goke GK7205V300 dual-core 32-bit DSP and an ultra-sensitive 1/2.8″ Sony IMX335 Starlight CMOS sensor, this core board delivers sharp 3072×2048 @ 20fps video capture even under extreme low-light conditions down to 0.0001 Lux.
Built with an expandable Micro SD card slot board, optional 2.8mm or 3.6mm HD lenses, and flexible power options (DC 12V or POE 48V), this module is optimized for easy network integration via ONVIF, RTSP, and the Xmeye / MYEYE CMS platform.
Key Product Specifications & Technical Features
| Parameter | Specification Details |
| Model / Board Code | IVG-G6S / G370 |
| Main Processor (DSP) | Goke GK7205V300 Embedded RTOS, Dual-Core 32-bit DSP |
| Image Sensor | 6.0 Megapixel 1/2.8″ Black Light Starlight CMOS (Sony IMX335 class) |
| Min. Illumination | Color: 0.0001 Lux @ F1.2; B/W: 0.0001 Lux @ F1.2 |
| Max. Resolution | 6MP Main Stream: 3072×2048 @ 20fps 5MP: 2880×1616 @ 25fps 4MP: 2560×1440 @ 25fps 2MP: 1920×1080 @ 25fps |
| Sub-Stream Resolution | 800×448 @ 25fps |
| Video Compression | Advanced H.265+ / H.265AI / H.265 / H.264 (0.1M–8Mbps Variable Bitrate) |
| Lens Options | M12 Mount: 2.8mm / 3.6mm HD Lens Options |
| Storage Expansion | Micro SD Card Slot Board (SDIO Interface for Local Front-End Edge Storage) |
| Audio Interface | 1-Ch Input (G.711, 2Vp-p, 1KΩ) / 1-Ch Output (160Ω, 30mW) for 2-Way Talk |
| Network & Protocols | 1*RJ45 10/100M Adaptive Ethernet Port; Supports RTSP, FTP, DHCP, NTP, UPnP, ONVIF |
| Edge AI Functions | Humanoid Detection, Face Detection, Vehicle Shape Detection (Custom Smart AI Available) |
| Day & Night / IR-CUT | Smart IR-CUT Drive (3.5V–6V, <200mA, 20Ω coil resistance) with Auto Switch |
| Power Supply Options | DC 12V/2A (≤3W power consumption) OR POE 48V (IEEE 802.3af standard cable) |
| Form Factor / Size | Standard 38mm × 38mm Single-Board Architecture |
| Surge Protection | Comprehensive Anti-Lightning Protection (GB/T17626.5 & IEC61000-4-5) |
| Software & Mobile Support | MYEYE CMS Center Platform, Web UI, iOS / Android (Xmeye App), Free SDK |
Core Technical Advantages
1. Ultra-Low Light Black Light (Starlight) Performance
Featuring a 1/2.8″ Black Light illumination sensor with 0.0001 Lux sensitivity, the IVG-G6S module captures full-color or crisp monochrome surveillance imagery in pitch-black settings where conventional camera modules produce heavy noise or blacked-out scenes.
2. Edge AI Analytics & Custom Functions
Equipped with onboard deep-learning algorithms, the Goke GK7205V300 processor runs humanoid detection, face detection, and vehicle shape classification directly on the module, drastically reducing false alarms and saving network bandwidth.
3. Highly Efficient H.265+ Video Encoding
Advanced H.265+ / H.265AI video compression reduces bandwidth and local storage consumption by up to 70% compared to standard H.264, maintaining ultra-low bitrates (0.1M–8Mbps) without sacrificing image clarity.
4. Compact 38x38mm Modular Expandability

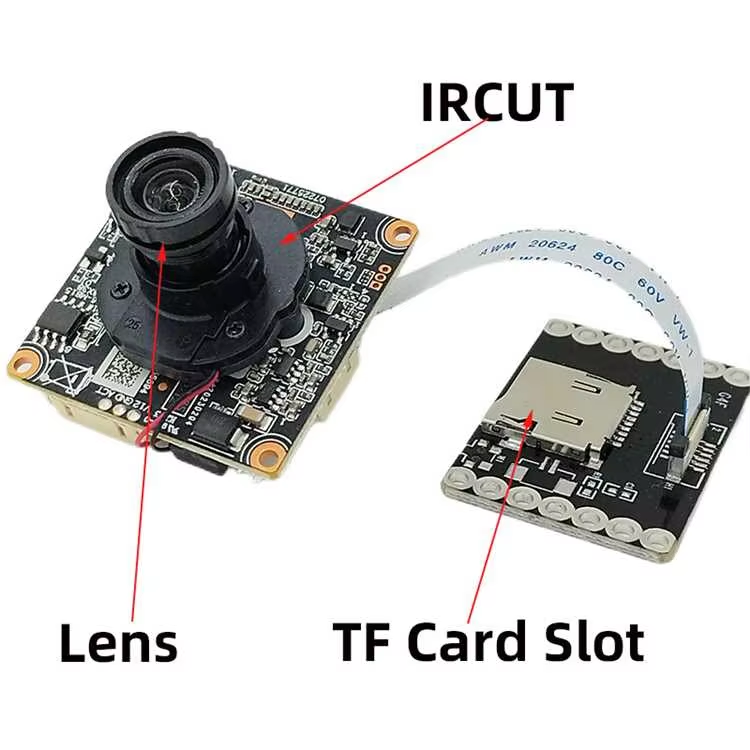

Designed for standard surveillance bullet/dome camera housing assemblies, the 38mm × 38mm form factor breaks out pin headers for external Micro SD card storage, two-way audio (microphone/speaker), white/infrared dual-light board drive, and serial debug interface (UART0).
What’s Included / Ordering Package Options
- 1× IVG-G6S 6.0MP IP Camera Module PCB Board
- 1× Micro SD Card Extension Slot Board (Optional Expansion)
- 1× M12 HD Lens (2.8mm wide-angle or 3.6mm standard) (Optional)

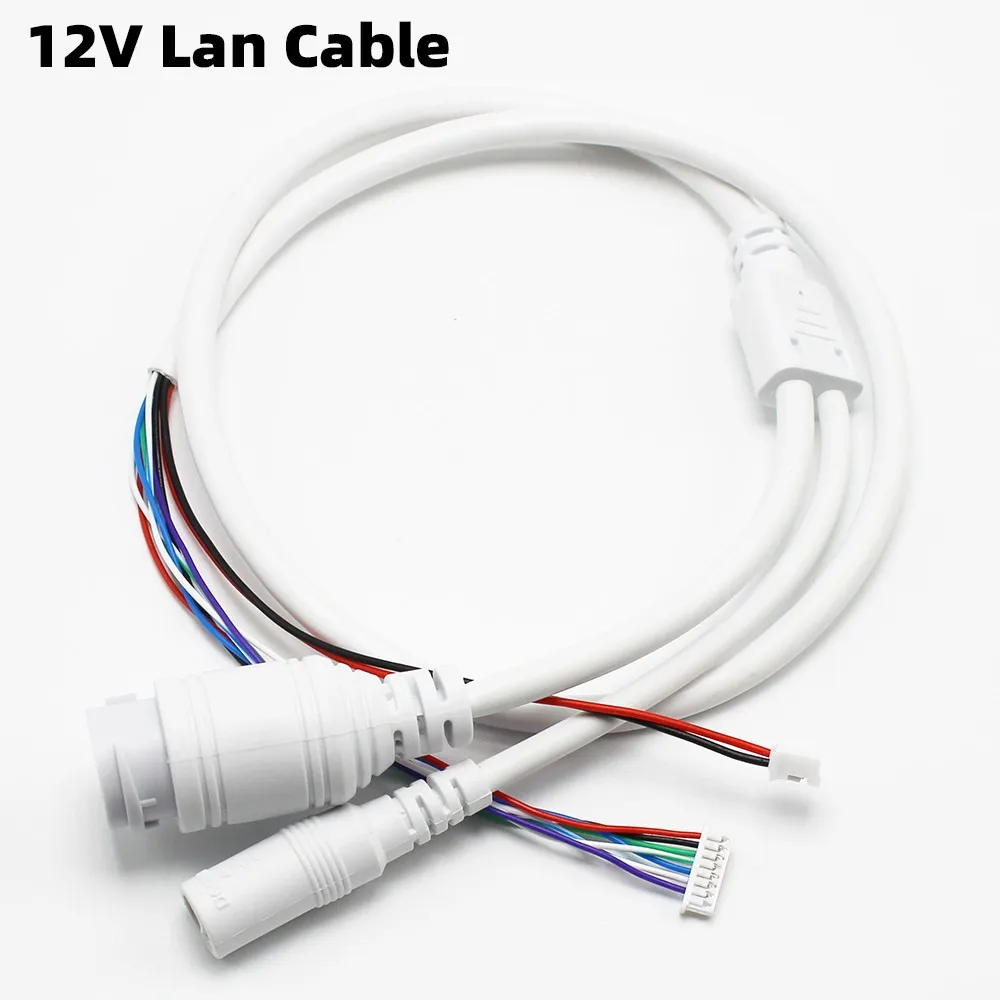

- 1× Wiring Harness Cable (Standard DC 12V Jack + RJ45 or POE 48V Active Splitter Cable) (Optional)
OEM / ODM Customization Services by Joyllon
Joyllon provides turnkey hardware and software development services for IP security camera systems and machine vision platforms:
- Hardware & PCB Modification: Tailored board layout dimensions, custom pin assignments, and specialized lens mount adapters (CS-mount, M12, M8).
- Firmware & Protocol Development: Custom ONVIF profiles, RTSP stream customization, private Cloud / P2P server integration, and proprietary SDK bindings.
- Sensor & Chipset Sourcing: Solutions featuring Goke, Hisilicon, Novatek, and SigmaStar paired with Sony (IMX335, IMX415), OmniVision, GalaxyCore, and Smartsens CMOS sensors.
- Turnkey EMS Assembly: SMT production, waterproof IP66/IP67 enclosure assembly, and full thermal testing (7×24 hrs at 65°C).
To request client technical documentation, full SDK packages, sample evaluation kits, or bulk manufacturing inquiries, visit www.joyllon.com.

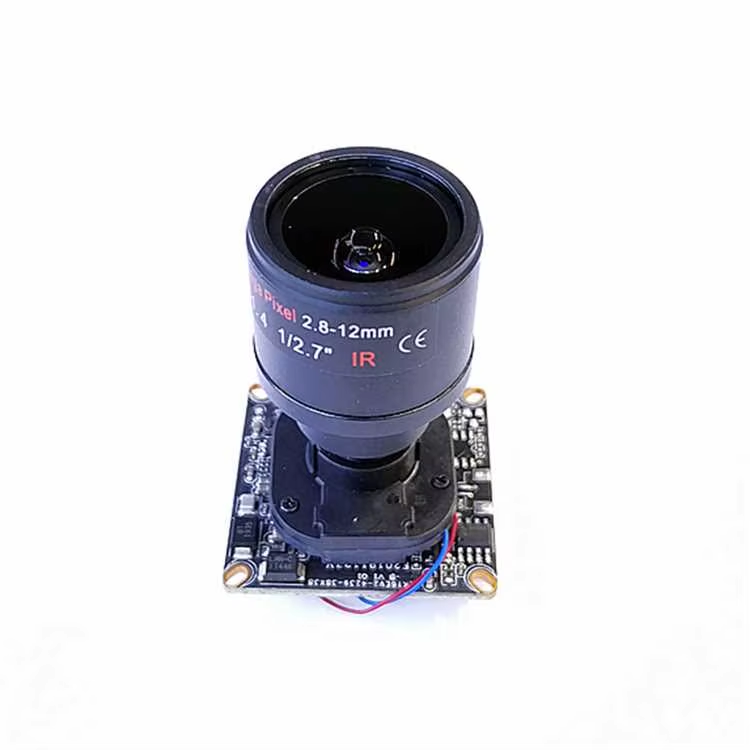

With 2.8-12mm(Manual):

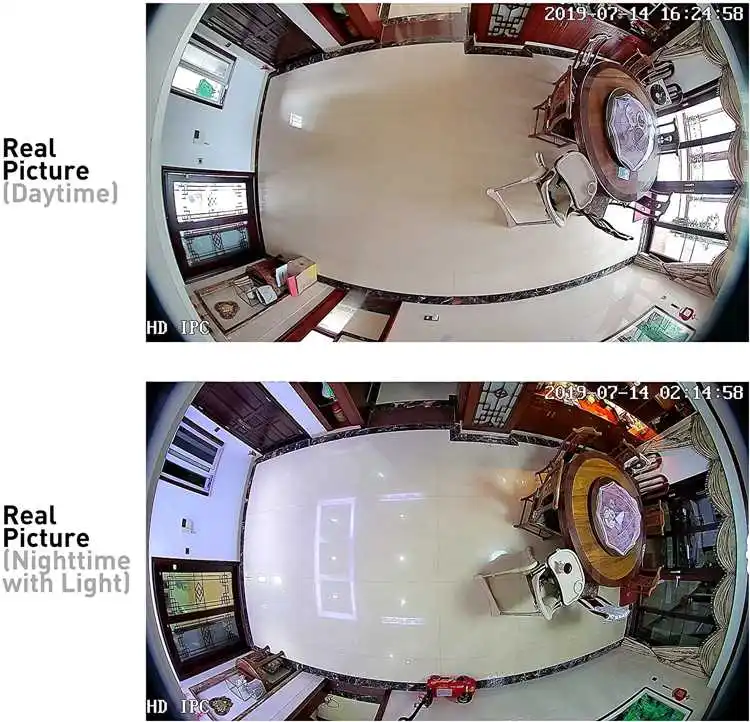

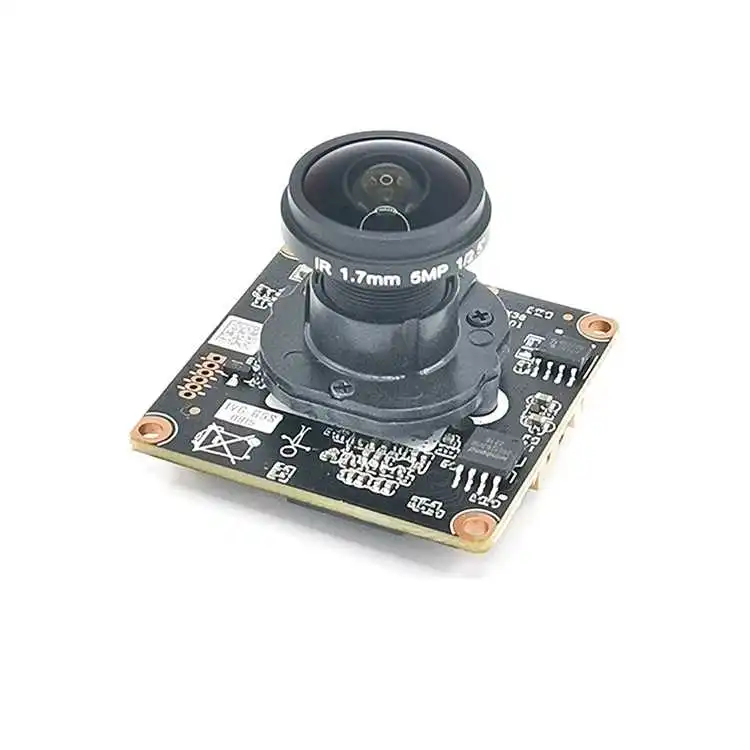

With 1.7mm Lens(180 degree
