www.joyllon.com | AR0234 Global Shutter Camera Module | 1080P Global Shutter Camera | Industrial USB Camera Module

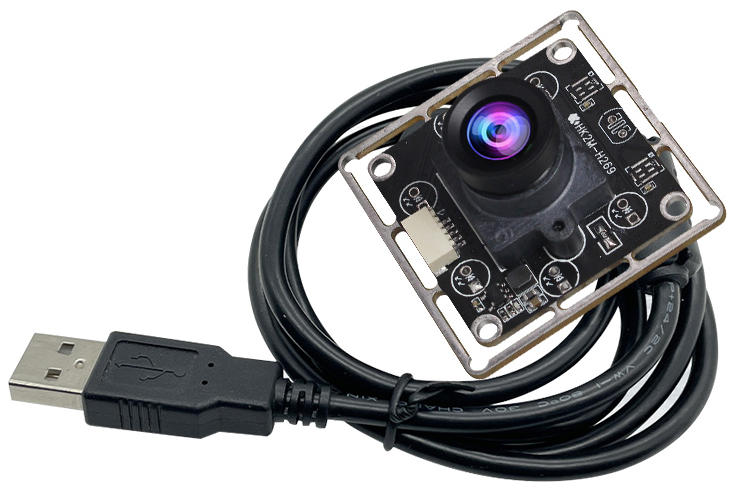

Joyllon AR0234 Sensor Global Shutter Camera Module HK2M‑H269 is built on the onsemi AR0234 CMOS global shutter sensor, engineered to capture high‑speed motion without distortion, eliminate rolling shutter “jelly effect”, and deliver sharp, stable imaging for industrial automation, outdoor sports, high‑speed machinery, and intelligent equipment. This 1080P global shutter camera module adopts RGB global exposure at 60fps, with wide compatibility, compact structure, and stable long‑term operation in harsh environments.
Core Features & Advantages
- AR0234 Global Shutter Sensor: 1/2.6‑inch CMOS, simultaneous pixel exposure, ideal for high‑speed moving object capture
- 1080P High‑Speed Imaging: 1920×1080@60fps; multiple lower resolutions up to 100fps for flexible frame rate control
- Excellent Optical Performance: 3.0μm×3.0μm pixel size, max SNR 38dB, dynamic range 71.4dB, low light down to 0.1Lux@F12
- Stable Optical Design: F/2.6 aperture, 3.3mm EFL, 95° FOV, 650±10nm IR filter, 2G4P+IR lens construction
- Plug‑and‑Play USB: 480Mb/s high‑speed USB, 5V±5% power supply, horizontal mount 1×USB‑5pin‑1.0mm connector
- Wide System Compatibility: Windows XP/Vista/7/8/10, Linux 2.6.24+, Ubuntu, Mac OS 10.6+, Android 5.1+
- Reliable Industrial Grade: Operating temperature ‑20°C to +80°C, storage ‑30°C to +90°C, typical power consumption 0.8W
- Compact Structure: 38mm×38mm×18mm, easy integration into equipment and embedded systems
Key Specifications
Item
Details
Image Sensor
CMOS 1/2.6” AR0234 Global Shutter
Pixel Size
3.0μm × 3.0μm
Max SNR
38 dB
Dynamic Range
71.4 dB
Min Illumination
0.1Lux at F12
Aperture (F/No)
2.6
Focal Length (EFL)
3.3mm
Field of View (FOV)
95°
IR Filter
650±10nm
Lens Construction
2G4P+IR
Max Resolution & Frame Rate
1920×1080 (60fps)
Optional Resolutions
320×240(100fps), 640×480(100fps), 800×600(100fps), 1280×720(100fps), 1280×960(60fps)
Output Format
YUV / MJPG
USB Voltage
5V±5%
Interface
1×USB‑5pin‑1.0mm horizontal mount
Interface Speed
480Mb/s
Power Consumption
0.8W (normal operation)
Working Temp
‑20°C to +80°C
Storage Temp
‑30°C to +90°C
Dimensions
38mm × 38mm × 18mm
Ideal Applications
- Industrial Automation & Machine Vision: High‑speed assembly line inspection, barcode/QR code scanning, precision positioning and tracking
- High‑Speed Machinery & Robotics: Real‑time motion monitoring, robot positioning, AMR navigation and obstacle avoidance
- Outdoor Sports & Action Cameras: High‑speed motion capture, motion analysis, distortion‑free video recording
- Intelligent Equipment & Embedded Vision: Smart devices, biometric recognition, AR/VR motion tracking, environmental perception
Why Choose Joyllon AR0234 Global Shutter Camera Module HK2M‑H269?
As a professional provider of imaging modules, Joyllon focuses on stable performance, high compatibility, and easy integration. The HK2M‑H269 AR0234 global shutter camera module delivers consistent global exposure, high frame rate output, and industrial‑grade durability, making it the preferred choice for high‑speed imaging and motion capture projects worldwide.
For datasheets, technical support, bulk orders, and customized solutions, visit www.joyllon.com or contact Joyllon directly.
