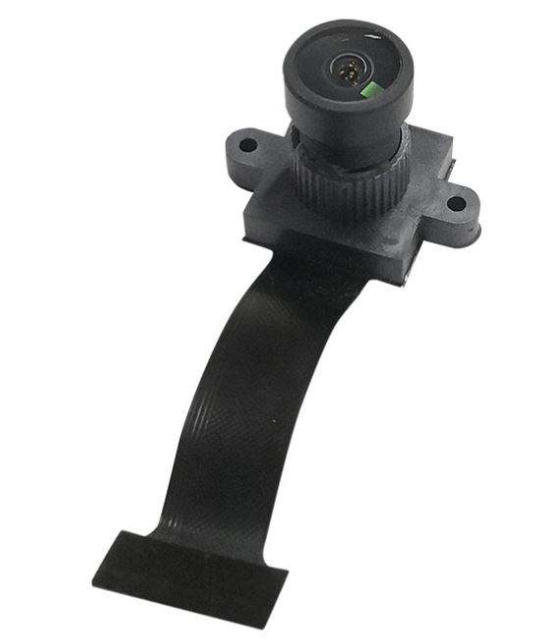

The AS-DA018AC40M6-46 is an industrial-grade 4MP High-Speed HDR Camera Module built with OmniVision’s advanced 1/3″ OS04C10 CMOS image sensor. Designed for high-speed machine vision and real-time tracking systems, this core camera board captures full 4 Megapixel (2688×1520) resolution at 60fps, 1080P Full HD at 80fps, and high-frame-rate 720P HD video at an impressive 240fps.
Featuring an 82.6 dB dynamic range with hardware-level High Dynamic Range (HDR) functionality, this MIPI camera module handles high-contrast backlighting, low-light environments, and rapid motion tracking without image blur or exposure clipping.

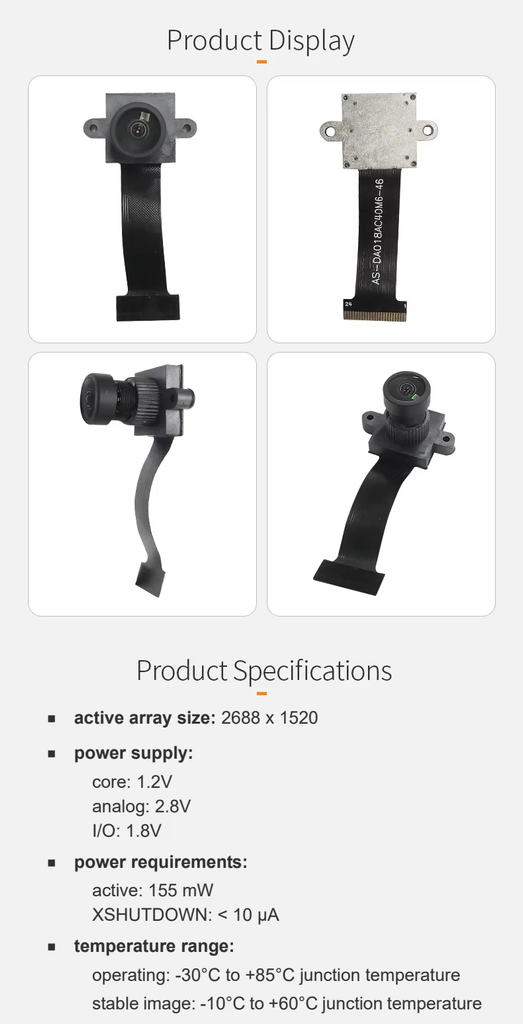

Technical Specifications
| Parameter | Specification Details |
| Product Model | AS-DA018AC40M6-46 |
| Image Sensor | OmniVision OS04C10 (1/3″ Optical Format) |
| Active Array Size | 2688 (H) × 1520 (V) (4 Megapixel) |
| Pixel Size | 1.998 µm × 1.998 µm |
| Active Image Area | 5402.592 µm × 3068.928 µm |
| Output Image Format | 10/12-bit RAW RGB |
| Max Frame Rates | 4MP (2688×1520): 60 fps 1080P (1920×1080): 80 fps 720P (1280×720): 240 fps |
| Interface Speed | MIPI CSI-2 (up to 1500 Mbps per lane) |
| Dynamic Range | 82.6 dB @ 15.5x gain |
| Signal-to-Noise Ratio (SNR) | Max 37.9 dB |
| Sensor Sensitivity | 14,700 e-/Lux-sec |
| Lens Chief Ray Angle (CRA) | 12° non-linear |
| Lens Options | M12 Mount / FOV 5° to 240° (Distortion-free to Wide Fish-eye) |
| Scan Mode | Progressive Scan |
| Power Supply | Core: 1.2V | Analog: 2.8V | I/O: 1.8V |
| Power Consumption | Active: 155 mW | XSHUTDOWN: < 10 µA |
| Operating Temperature | -30°C to +85°C junction temperature (-10°C to +60°C stable image) |
| Board Dimensions | Customizable FPC / Rigid PCB layout |
Core Performance Features
- High-Speed 240fps Video Capture: Delivering up to 240 frames per second at 1280×720 resolution, the module captures rapid moving objects without motion distortion—crucial for high-speed industrial inspection and biometric tracking.
- 82.6 dB High Dynamic Range (HDR): Integrated HDR technology balances bright highlights and deep shadow details, ensuring reliable edge identification under backlighting or unstable outdoor lighting conditions.
- 1.998µm PureCel® Pixel Architecture: The 1/3″ OS04C10 sensor delivers high sensitivity (14,700 e-/Lux-sec) and high SNR (37.9 dB) for low-noise image capture across industrial spectrums.
- Broad Lens Compatibility (5°–240° FOV): Customizable optical design supporting narrow telephoto lenses (5°) up to ultra-wide panoramic / fisheye lenses (240°) with low distortion options.
- High-Bandwidth MIPI CSI-2 Interface: Output speeds reaching up to 1500 Mbps facilitate real-time image processing on edge platforms like NVIDIA Jetson, Rockchip, and NXP processors.
Target Applications
- Machine Vision & Automation: High-speed inline sorting, barcode scanning, 3D laser scanning, and industrial robotic vision.
- Biometrics & Positional Tracking: Iris recognition, gesture identification, facial scanning, and head/eye tracking for AR/VR headsets.
- Autonomous Systems & Robotics: Drone obstacle avoidance, AGV navigation, Advanced Driver Assistance Systems (ADAS), and IoT edge surveillance.
OEM / ODM Customization Services by Joyllon
As an optical imaging solution manufacturer, Joyllon offers end-to-end customization services for global hardware engineers and B2B clients:
- Lens Sourcing & Alignment: Custom FOV selection, infrared filter integration (650nm/850nm/940nm), and precision active alignment (AA).
- PCB / FPC Architecture Design: Custom substrate form factors, rigid-flex board layouts, and targeted MIPI connector pinouts.
- ISP Tuning & Platform Integration: Fine-tuning sensor registers, color matrices, exposure tables, and driver integration for Linux, Android, and ROS environments.
For datasheet requests, pricing quotes, or sample evaluation kits, contact the engineering team at www.joyllon.com.
