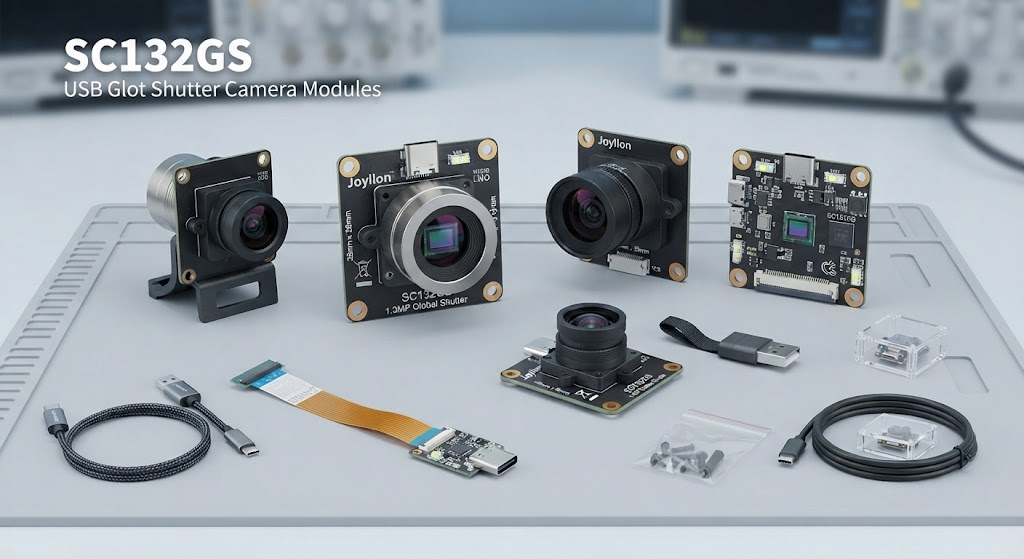

The SC132GS USB Global Shutter 1.3MP Camera Module (Model: XCG9513-V1.0) by Joyllon is engineered for high-precision machine vision, industrial automation, and motion-tracking applications. Built around the advanced SC132GS CMOS sensor, this 1/4-inch optical format module eliminates rolling shutter artifacts, ensuring crystal-clear, distortion-free capture of fast-moving objects.
Featuring a compact 38mm x 38mm form factor, high dynamic range (HDR), and near-infrared (NIR) enhancement, this USB interface camera module delivers reliable, high-speed performance across demanding environments.
Key Features
- Global Shutter Technology: Captures fast motion accurately without geometric distortion or rolling shutter artifacts.
- High Sensitivity & Dynamic Range: Features high signal-to-noise ratio (SNR) with linear dynamic range up to 66 dB and HDR mode exceeding 100 dB.
- Near-Infrared (NIR) Enhancement: Optimized with 850 nm / 940 nm near-infrared enhancement for specialized lighting and night-vision applications.
- Synchronization & Triggering: Supports external triggering and multiple sensor synchronization, ideal for multi-camera stereo vision setups.
- Advanced Control: Includes LED strobe support, horizontal/vertical windowing, AEC/AGC with ultra-low exposure times, and programmable I2C registers.
- Robust Build: Operates reliably in extreme temperatures ranging from -30ยฐC to +85ยฐC, complete with a built-in temperature sensor.
Technical Specifications
| Parameters | Description |
| Resolution | 1.3 MP |
| Pixel Array | 1080H x 1280V |
| Pixel Size | 2.7 ฮผm x 2.7 ฮผm BSI |
| Optical Format | 1/4″ |
| Maximum Frame Rate | โข Linear: 1080H x 1280V @ 10-bit 120 fps โข HDR (HRDC on): 1080H x 1280V @ 10-bit < 60 fps โข HDR (HRDC off): 1080H x 1280V @ 10-bit 120 fps |
| Output Interface | โข 12/10/8-bit 4-Lane MIPI โข 12/10/8-bit 4-Lane LVDS |
| Output Format | RAW RGB / RAW MONO |
| Field of View (FOV) | D140ยฐ / H122ยฐ / V70ยฐ |
| Module Size | 38 mm x 38 mm x 11.1 mm / 6.3 mm |
| Interface Type | USB (Focus Format: FF) |
| Sensitivity | โข Mono: 8250 mV/(lux ยท s) โข Color: 7120 mV/(lux ยท s) |
| Dynamic Range | Linear mode: 66 dB; HDR mode: >100 dB |
| Signal-to-Noise Ratio (SNR) | 40 dB |
| Operation Temperature | -30ยฐC to +85ยฐC (Best IQ: -20ยฐC to +60ยฐC) |
| Power Supply | AVDD = 2.5V ยฑ 0.1V, DVDD = 1.2V ยฑ 0.06V, DOVDD = 1.8V ยฑ 0.1V |
Customization & OEM/ODM Services
At Joyllon, we specialize in comprehensive OEM, ODM, and contract manufacturing services to bring your vision to life. Whether you bring a fully realized technical specification or a simple hand-drawn concept, our dedicated engineering and sales teams work collaboratively to meet your exact application needs.
- Full Lifecycle Support: From initial concept development and raw material sourcing to electronic engineering, firmware/software development, and mass production.
- Tailored Engineering: Custom module sizing, optics, and specialized interface configurations.
- Dependable Manufacturing: Strategic supply chain systems offering robust, scalable production capacity for projects of all sizes.
Partner with Joyllon as your long-term developer of practical, innovative, and high-performance camera solutions. Contact us today to discuss your project requirements.
