Sports Global Shutter Camera Module

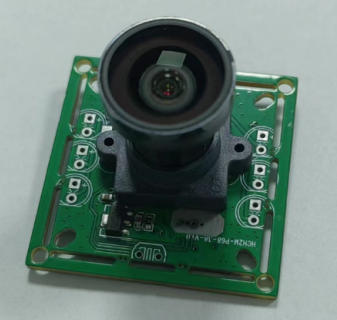

High-Performance 2MP Global Shutter USB Camera Module for Machine Vision & Motion Capture

Looking for a reliable, high-speed camera module for fast-moving applications? The HJX35-V13-38-V1.0 from Joyllon is engineered with advanced Global Shutter technology to eliminate motion artifacts and distortion, making it the ideal imaging solution for industrial automation, smart traffic, and sports analytics.

---

Key Product Highlights

• Global Shutter Technology: Captures crisp, distortion-free images of fast-moving subjects without rolling shutter skew.
• High Frame Rate Performance: Delivers smooth, real-time video streaming at 60 FPS at full resolution.
• Large Pixel Design: Built with a 1/2.8” optical format sensor to ensure superior light sensitivity and clarity.
• Plug-and-Play USB 2.0 Integration: Features standard UVC compliance for seamless connectivity without complex driver installations.

---

Technical Specifications

Specification	Details
Product Model	HJX35-V13-38-V1.0
Resolution & Pixels	2 Megapixel ($1600 \times 1200$ Effective Pixels)
Sensor Type	Global Shutter CMOS
Frame Rate	60 FPS
Field of View (FOV)	120° Wide Angle
Data Format	YUV / MJPG
Interface	USB 2.0 (UVC Compliant)
Operating Voltage & Current	DC 5V / 180-200mA
OS Compatibility	Windows, Linux, Android, and OS with UVC Driver
Dimensions	38×38 mm (Compatible with 32 x32 mm mounts)
Operating Temperature	-20°C to 80°C

---

Target Applications

Designed for demanding machine vision and tracking environments, this module excels in:

• High-Speed Motion Capture: Capturing rapid movements in sports and athletic training analysis.
• Smart Transportation: License plate recognition (LPR) and traffic monitoring systems.
• Industrial Automation: High-speed barcode scanning, factory automation, and quality inspection.
• People Counting & Analytics: High-accuracy footfall tracking in retail and public spaces.

Upgrade your hardware design with Joyllon‘s advanced camera solutions. Contact our team today for integration support, customization options, or bulk inquiries.

---
