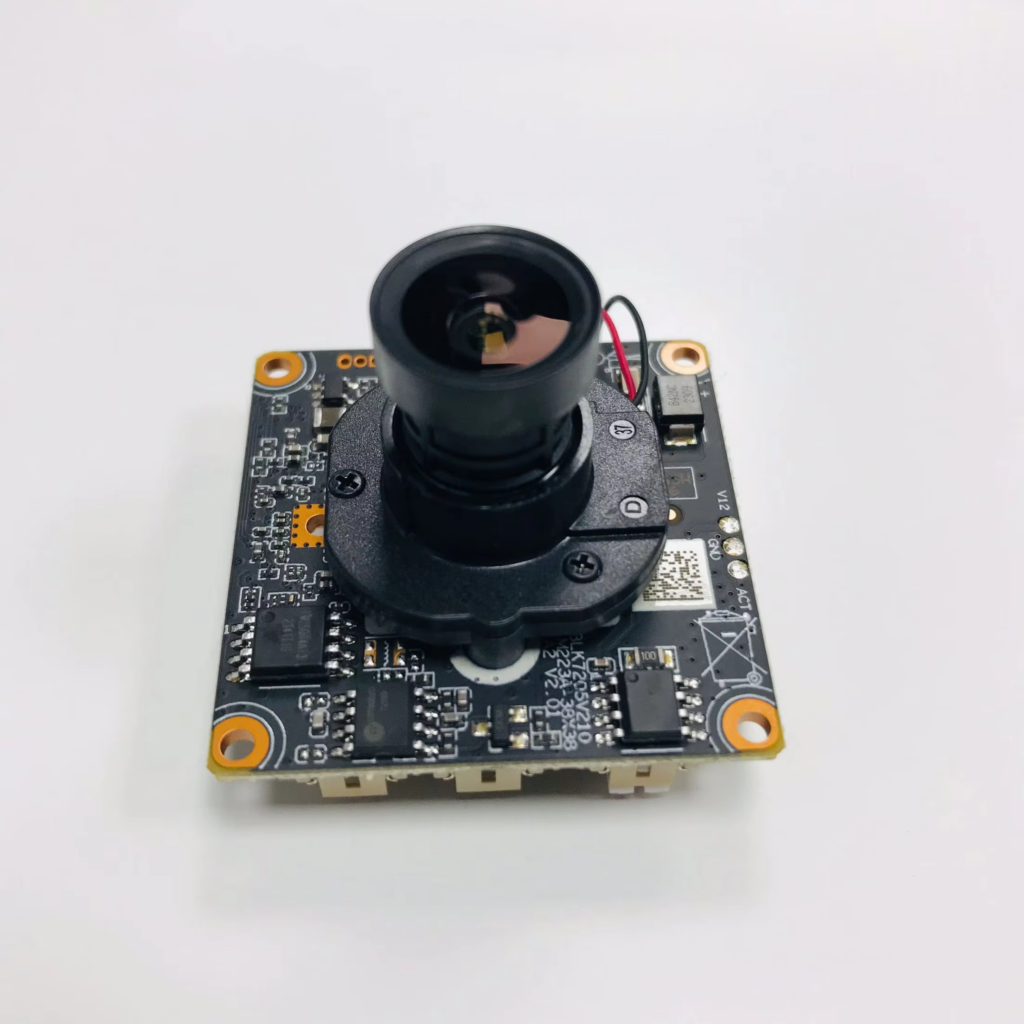

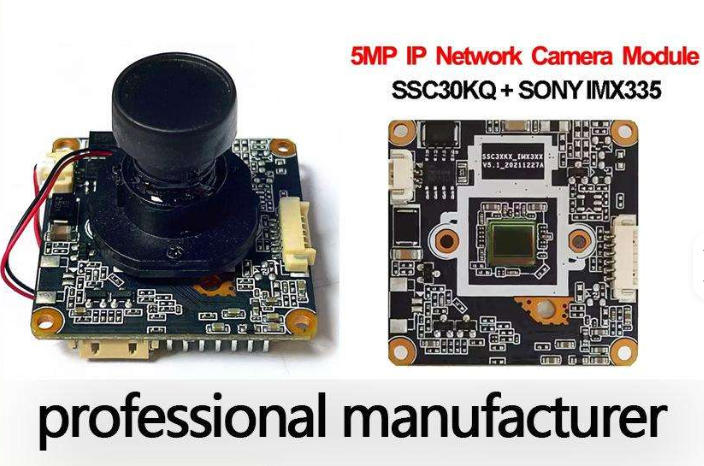

Upgrade your CCTV and smart surveillance systems with the high-performance MC-L12 5MP IP Camera Module Board. Powered by the advanced SigmaStar SSC30KQ main processor (SCS300Q) and a 1/2.8-inch Sony IMX335 starlight CMOS sensor, this camera module delivers crystal-clear 5MP resolution at up to 30FPS. Engineered for developers, integrators, and security professionals, it combines exceptional low-light starlight imaging with robust smart analytics, ONVIF support, and comprehensive SDK development packages for Windows, Android, and Linux.
Key Features & Highlights
- 5MP Starlight CMOS Sensor: Built with a 1/2.8″ Sony IMX335 sensor for brilliant color and clarity in near-total darkness.
- High-Efficiency Video Encoding: Supports advanced H.265+, H.265, and H.264 codecs with adjustable bitrates (0.1M to 90Mp) and 1–30FPS frame rates.
- Intelligent Video Analytics: Features built-in human shape detection (人形检测) and customizable monitoring zones to minimize false alarms.
- Dual-Light & Multi-Mode Night Vision: Supports dual-light source alarms, full-color mode, infrared mode, soft wake-up, and automated IRCT protocol self-calibration.
- Two-Way Audio & Intercom: Equipped with G.711 standard audio processing, supporting dual-channel voice intercom, voice broadcasting, and custom audio prompts.
- Smart Home & NVR Integration: Fully compatible with ONVIF standards, HTTP/HTTPS protocols, mobile apps (iOS & Android), and mainstream NVR systems.
- Developer Friendly: Provides ready-to-use SDK development kits for Windows, Android, and Linux environments.
Technical Specifications
- Model: MC-L12
- Main Chipset: SigmaStar SCS300Q (SSC30KQ)
- Image Sensor: 5MP, 1/2.8″ Sony IMX335 CMOS
- Video Processing: H.265+ / H.265 / H.264 decoding, adjustable bitrate & frame rate
- Max Resolution (Main Stream): 3075P max output supporting 2992 x 1944, 2560 x 1440, 2304 x 1296, 1920 x 1080, and 1280 x 720
- Sub Stream Resolution: 720 x 480, D1, VGA, 640 x 360
- Audio Interface: 1-channel input, 1-channel output (G.711 standard)
- Network Interface: 1x RJ45 Ethernet port, 10/100M adaptive
- Expansion Interfaces: CDS, PWM Infrared, PWM Laser, POF expansion
- Power Supply: DC 12V input, low power consumption (~170mA)
- Operating Environment: -40°C to 85°C
- Board Dimensions: 38 mm x 38 mm (Standard mini CCTV size)
