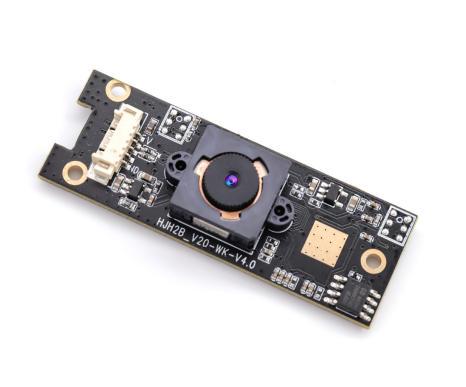

Welcome to Joyllon, your trusted provider of advanced imaging and camera module solutions. We are proud to introduce our high-performance HJH2B_V20_WK-V4.0 camera module, engineered to deliver crystal-clear visual data with lightning-fast autofocus capabilities. Designed for seamless integration into modern smart devices and industrial applications, this 2MP HD module is the ideal choice for developers and manufacturers seeking reliability and precision.
Key Features & Highlights
- Ultra-Fast Autofocus: Equipped with advanced automatic focusing, ensuring sharp imagery instantly across various distances.
- Full HD 1080P Resolution: Delivers crisp, detailed video output at 30 frames per second using effective pixels of 1920×1080.
- H.264 & Versatile Data Formats: Supports H.264 compression alongside YUV and MJPG data formats for efficient bandwidth usage and smooth streaming.
- Dual-Microphone Audio Support: Features built-in dual microphones with external audio connectivity options for clear sound capture.
- Wide System Compatibility: Easily integrates with Windows (XP, 7, 10), Linux (2.6.26 and above), and Android 4.0+.
Technical Specifications
| Parameter | Specification Details |
| Model Number | HJH2B_V20_WK-V4.0 |
| Interface | USB 2.0 |
| Resolution & Sensor | HD 2MP (1920 x 1080 Effective Pixels), 1/2.7″ Lens Size |
| Frame Rate & Dynamic Range | 30 FPS at 1080P; 85 dB Dynamic Range |
| Field of View (FOV) | Diagonal 74.4°, Horizontal 66.9°, Vertical 40.9° |
| Power Supply | 5V DC, Operating Current: 140–160 mA |
| Audio | Dual Microphones (External Audio Supported) |
| Operating Temperature | -20°C to 80°C (Storage) |
| Dimensions | 55.3mm (W) x 19.2mm (L) x 9.7mm (H) +-0.2 mm |
Versatile Applications
The compact form factor and superior optical performance of the HJH2B_V20_WK-V4.0 make it exceptionally well-suited for a wide range of cutting-edge applications:
- Live Streaming & Broadcasting: Professional clarity and fluid motion for creators and online platforms.
- Barcode Scanning: Rapid autofocus ensures quick, accurate code reading in retail and logistics.
- Object Recognition: High dynamic range and precise framing support AI-driven computer vision systems.
- Video Teaching & Education: Reliable, high-definition video capture for remote learning and interactive classrooms.
Explore more custom imaging solutions and technical documentation by visiting Joyllon today.
