2MP Full HD MIPI Camera Module | SC2336 1080P Industrial & IoT Image Sensor #JL06151643

🔍 Product Overview

The JL-AG638A32M1-25 is a high-performance, ultra-compact 2MP Full HD MIPI camera module designed for seamless integration into smart technology and industrial ecosystems. Powered by the advanced 1/3″ SC2336 CMOS sensor, this module delivers crystal-clear 1080P video at 30fps with exceptional low-light sensitivity and low power consumption.

Engineered for flexibility, it features a highly customizable hardware architecture, supporting custom lens angles (5° to 240° undistorted panoramic), tailored dimensions ($25 \times 12.5\text{ mm}$ default), and multi-interface compatibility (MIPI/DVP) to meet the rigorous demands of modern AI vision and IoT applications.

🛠️ Technical Specifications

Parameter	Details
Product Model	JL-AG638A32M1-25
Active Pixels	2 Megapixels (1928Hx1088V)
Optical Format / Sensor	SC2336 (1/3″) CMOS Sensor
Video Output / Frame Rate	1920×1080 @ 30fps (10-bit)
Output Image Format	RAW RGB (JPEG / YUV outputs supported)
Default Interface	MIPI CSI (DVP Interface customizable)

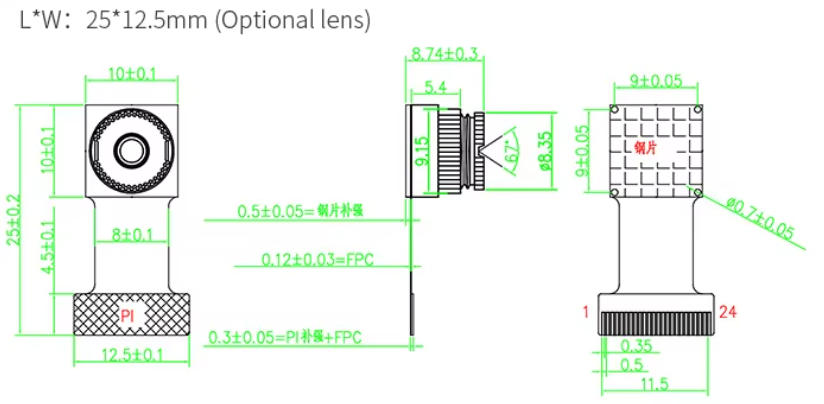

Standard Dimensions	25×12.5mm (Fully Customizable)
Lens FOV / Angle	5°–240° Optional (Undistorted & Panoramic options)
Advanced Features	Low illumination, global exposure options, starlight/super starlight tracking, Wide Dynamic Range (WDR HDR)

🎯 Key Features & Commercial Advantages

Fluid HD 1080P Video Output: Captures sharp, smear-free $1920 \times 1080$ video at 30fps, ensuring high-accuracy data feeds for real-time monitoring and AI algorithms.
Premium SC2336 CMOS Sensor: Offers industry-leading sensitivity, ultra-low noise interference, and high energy efficiency, making it perfect for battery-operated devices and continuous surveillance.
Massive Lens Customization (5°–240°): Eliminate distortion or choose wide-angle panoramic views depending on your project needs.
Starlight & WDR Capabilities: Optimized for extreme environment performance, featuring exceptional low-illumination clarity and high dynamic range (HDR) for handling harsh backlighting.
OEM/ODM Ready Architecture: We support comprehensive custom development from 0.2MP up to 48MP across various sensor brands (Sony IMX, OmniVision, Onsemi, Micron, GalaxyCore) and interfaces (USB 2.0/3.0, MIPI CSI-2, DVP).

2MP MIPI Camera Module, SC2336 Sensor Module, 1080p 30fps CMOS Camera, Embedded IoT Camera, Face Recognition Camera Component, Custom Lens Camera Board, China Camera Module Manufacturer, Machine Vision Camera Hardware

🚀 Target Applications

This versatile camera module is widely deployed across commercial, industrial, and consumer tech sectors:

AI Vision & Security: Face recognition systems, biometric liveness detection, access control, and infrared surveillance monitoring.
Smart Terminals: Vending machines, self-service kiosks, all-in-one POS machines, and smart home appliances.
Robotics & Automation: Industrial machine vision, UAVs/drones, barcode scanning, and automation equipment.
Enterprise Solutions: High-definition video conferencing systems and action cameras.

📦 Customization & Wholesale Inquiries

As a leading camera module manufacturer based in China, we provide end-to-end hardware customization to fit your exact product footprint and processing requirements.
