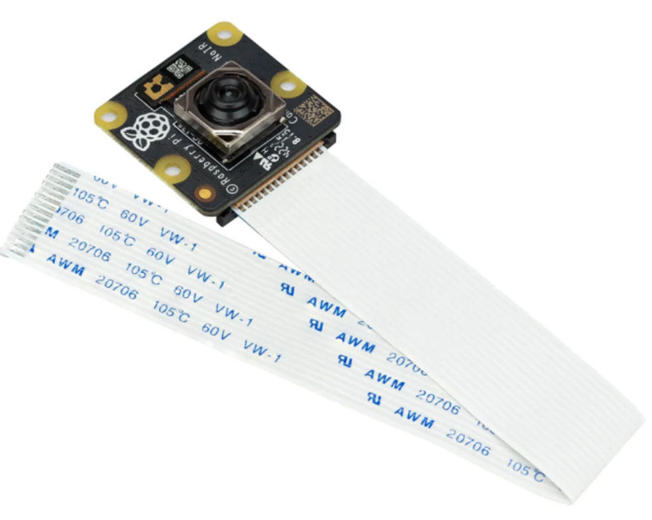

Raspberry Pi Camera Module 3 NoIR Wide: 12MP Autofocus Infrared Camera for Raspberry Pi 3B & 4B

Looking to upgrade your Raspberry Pi vision projects with low-light capability and a wider field of view? The Raspberry Pi Camera Module 3 NoIR Wide is engineered for makers, hobbyists, and developers who need high-resolution night imaging, rapid autofocus, and expansive scene coverage.

Available now at Joyllon, this official camera variant combines Sony sensor technology with infrared sensitivity for advanced computer vision, wildlife monitoring, and nocturnal photography.

Key Features & Performance Highlights

• Sony IMX708 12-Megapixel Sensor: Captures ultra-sharp still photographs and Full HD video with a high signal-to-noise ratio (SNR) and 2D Dynamic Defect Pixel Correction (DPC).
• NoIR (No Infrared) Filter: Unlike standard camera modules, the NoIR version lacks an infrared cut filter, making it sensitive to IR light—ideal for nighttime surveillance, infrared photography, and plant health monitoring when paired with an IR light source.
• Wide-Angle Lens: Features an expanded field of view, letting you capture wider scenes without moving your Raspberry Pi setup back.
• Phase Detection Autofocus (PDAF): Enjoy rapid, hardware-assisted autofocus that makes setup effortless for beginners while offering precise control for advanced automation tasks.
• HDR Mode Support: Delivers balanced exposures in high-contrast lighting conditions (supports HDR up to 3-megapixel output).
• Full libcamera Integration: Fully supported by Raspberry Pi’s modern libcamera ecosystem, ensuring smooth operation, programmable focus control, and easy script integration.

Technical Specifications

• Image Sensor: Sony IMX708 (Back-illuminated and stacked CMOS)
• Resolution: 11.9 Megapixels (Horizontal/Vertical: 4608 x 2592 pixels)
• Sensor Size & Pixel Size: 7.4mm sensor diagonal; 1.4µm × 1.4µm pixel size
• Focus System: Phase Detection Autofocus (PDAF) with 2-wire serial control
• Common Video Modes: 1080p50, 720p100, 480p120
• Data Output: CSI-2 serial data output, RAW10
• Dimensions: 25 x 24 x 12.4mm (Wide variant height)
• Compatibility: Fully compatible with Raspberry Pi Model 3B, 4B, and other models utilizing standard CSI camera ports (Note: Z-dimension/height is slightly taller than Camera Module 2 due to advanced optics).
• Included Accessories: 200mm ribbon cable with a 15 x 1mm FPC connector

Ideal Use Cases

• Night Vision & Wildlife Monitoring: Pair with IR illuminators to record nocturnal wildlife or monitor dark environments without disturbing natural lighting.
• AI & Computer Vision Projects: Leverage the crisp 12MP resolution and rapid autofocus for object detection, robotics, and machine learning pipelines.
• Security & Time-Lapse Photography: Set up reliable 24/7 surveillance feeds or high-definition outdoor time-lapses.

Ready to Upgrade Your Setup?

Bring clarity and night-vision capabilities to your next build. Order the Raspberry Pi Camera Module 3 NoIR Wide today at Joyllon and take your projects further!

---
