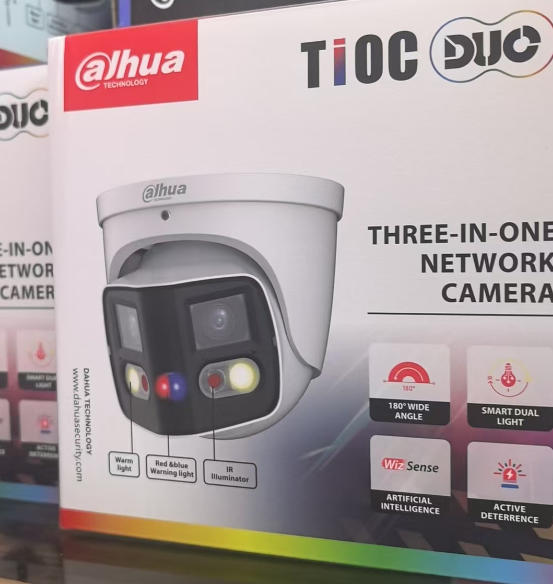

8MP 180° Panoramic TiOC Duo WizSense Network Camera

Optimize your security infrastructure with the Dahua Tioc Duo Three-in-One Network Camera (IPC-PDW3849-A180-AS-PV). Engineered for high-performance commercial, industrial, and perimeter monitoring, this dual-sensor fixed-focal eyeball camera delivers a seamless 180° panoramic field of view through pixel-level splicing fusion.

Equipped with advanced WizSense AI technology, Smart Dual Light, and active deterrence features, this camera ensures crystal-clear imaging day and night while minimizing false alarms.

Key Features & Performance Highlights

• Ultra-HD 8MP Resolution: Dual 1/2.7″ CMOS sensors deliver crisp, high-definition video at up to 4096 × 1860 resolution @ 20 fps.
• Seamless 180° Splicing: Pixel-level image fusion combines dual lenses into a wide, distortion-free panoramic view.
• Smart Dual Light Technology: Integrated IR LEDs (up to 25 m) and Warm Light (up to 20 m) with 3 switchable illumination modes for optimal night vision.
• Active Deterrence (TiOC): Built-in red and blue warning lights alongside a powerful siren (up to 110 dB at 10 cm) actively deter intruders before breaches occur.
• WizSense AI & Perimeter Protection: Advanced SMD 4.0 and deep-learning algorithms filter out false triggers, offering precise human and vehicle classification for tripwire, intrusion, and loitering detection.
• EPTZ (Electronic Pan-Tilt-Zoom): Automatically enlarges and tracks intelligent alarm targets within the 180° frame.
• Robust Weatherproof Build: Enclosed in a durable metal casing with an IP67 rating, designed to withstand harsh environments from -40 °C to +60 °C (-40 °F to +140 °F).

Technical Specifications

Specification	Detail
Model	IPC-PDW3849-A180-AS-PV
Image Sensor	Dual 1/2.7″ Progressive CMOS
Max Resolution	8M (4096 × 1860)
Focal Length & FOV	2.8 mm (Horizontal: 180°, Vertical: 86°)
Max Aperture	F1.4
WDR	120 dB
Video Compression	H.265; H.264; AI H.265; AI H.264
Audio	Built-in Dual Microphones and Speaker (Two-way talk support)
Storage	Micro SD Card slot (support max. 512 GB); NAS; FTP/SFTP
Network Port	1x RJ-45 (10/100 Base-T)
Power Supply	12 VDC (±30%) / PoE (802.3af)
Power Consumption	Basic: 3.95W (12V), Max: 8.7W (12V) / 10.85W (PoE)
Dimensions & Weight	Φ122 mm × 135.2 mm (Φ4.80″ × 5.32″), Net Weight: 990 g (2.18 lb)

Applications & Ideal Use Cases

• Perimeter Security: Large open zones, parking lots, warehouse exteriors, and campus perimeters.
• Retail & Public Spaces: Wide-angle monitoring for storefronts, lobbies, and public squares with minimal camera counts.
• Smart City Surveillance: Accurate vehicle and pedestrian tracking integrated with AI NVR systems for rapid event extraction via Quick Pick.
