2MP Freezer Camera Module

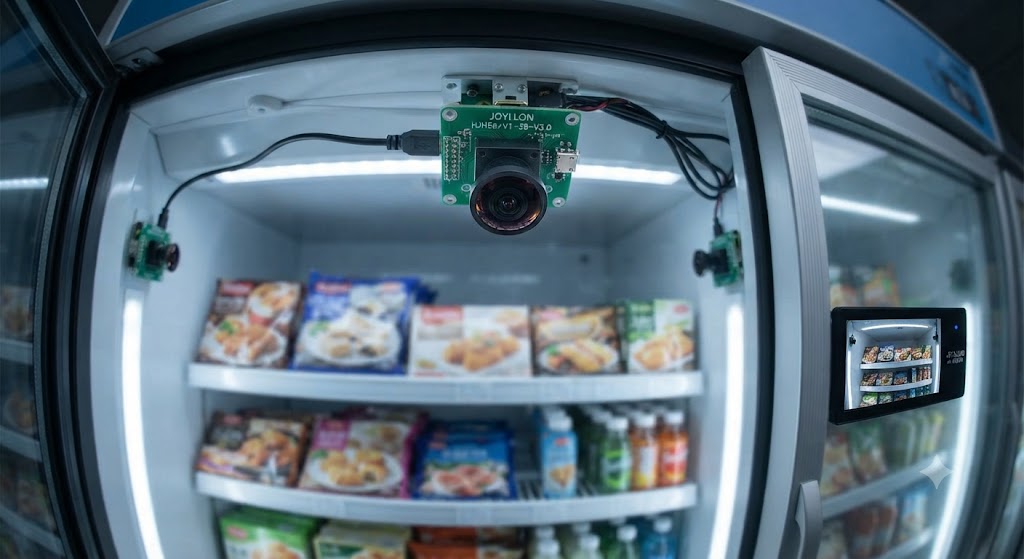

Enhance your smart retail systems and automated cold storage units with the high-performance Joyllon Freezer Camera Module (HJH56-V1-38-V3.0). Engineered specifically for ultra-low temperature environments and compact hardware integrations, this 2MP USB camera module delivers crystal-clear imaging, wide-angle coverage, and reliable plug-and-play operation across multiple operating systems.
Key Applications
- Smart Vending Machines & Automated Retail
- Smart Refrigerators & Commercial Freezers
- Cold Storage Lockers & Automated Inventory Cabinets
Technical Specifications
| Feature | Specification Details |
| Product Model | HJH56-V1-38-V3.0 |
| Product Type | 2MP (200W) Camera Module |
| Effective Pixels | 1920 x 1080 (Full HD) |
| Sensor Size | 1/2.7″ |
| Field of View (FOV) | 220° (Ultra-wide angle) |
| Frame Rate | 30 FPS |
| Data Format | YUV / MJPG |
| Interface | USB 2.0 / Network Port (Optional) |
| Working Voltage | 5V |
| Working Current | 180 – 200mA |
| Audio | None (No Built-in Mic) |
| OS Compatibility | Windows, Linux, Android, and any OS supporting UVC drivers |
| Storage Temperature | -20°C to 80°C |
| Board Dimensions | 38×38 mm (fully compatible with 32×32 mm mounts) |
Why Choose Joyllon HJH56-V1-38-V3.0?
- Ultra-Wide 220° FOV: Capture complete interior visibility of commercial refrigerators, freezers, and vending compartments with a single lens, reducing blind spots and hardware costs.
- Low Power Consumption: Operates efficiently at 180–200mA on a standard 5V USB connection, minimizing heat generation inside insulated cooling units.
- Seamless UVC Integration: Enjoy hassle-free deployment without proprietary drivers on Windows, Linux, and Android platforms.
- Compact & Flexible Design: The standard 38x38mm form factor—with backward compatibility for 32x32mm spaces—allows for effortless installation in tight enclosure spaces.
Visit Joyllon today to learn more about customized camera module solutions for your industrial and smart retail applications.
