Optimized for High-Speed Industrial Vision, Machine Automation, and Precision Inspection

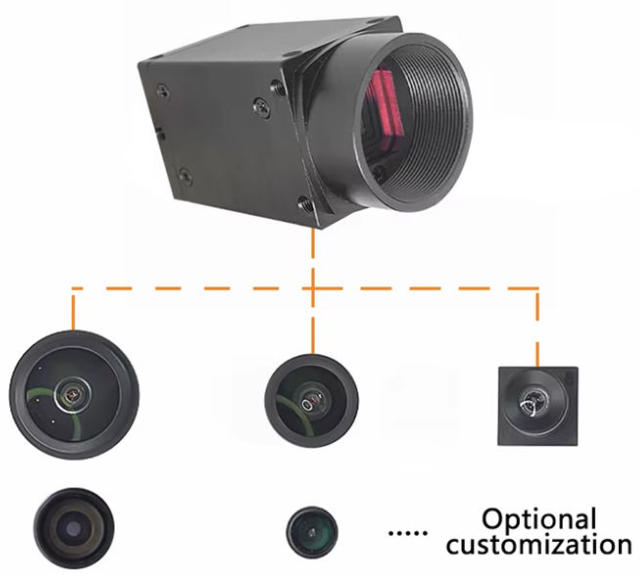

Elevate your machine vision and automation capabilities with the high-performance AR0234 2.3MP Global Shutter Industrial Camera Module (joyllon.com). Engineered with ON Semiconductor’s advanced AR0234CS sensor, this module delivers crisp, distortion-free images of fast-moving objects without motion artifacts. Featuring a flexible GigE and USB interface alongside robust SDK support, it integrates seamlessly into industrial inspection systems, robotics, barcode scanners, and intelligent transport systems (ITS).
Key Specifications
| Parameter | Specification Details |
| Image Sensor | ON Semiconductor AR0234CS CMOS Digital Image Sensor |
| Resolution | 2.3 Megapixels (1920 x 1200 active pixels) |
| Optical Format | 1/2.6 inch |
| Shutter Type | Global Shutter (optimized for fast-moving scenes) |
| Frame Rate | Up to 50fps / 120fps Full HD capabilities |
| Aperture (F.NO) | 2.2 |
| Focal Length | 3.75mm |
| Field of View (FOV) | Diagonal 76.6° (D76.6°) |
| Optical Distortion | Less than 1% (<1%) |
| Lens Size | 1/4 inch compatible |
| Power Supply (DVDD) | 1.5V ±5% |
| Interface | GigE / USB with comprehensive SDK support |
Core Features & Advantages
- Advanced Global Shutter Technology: Designed to eliminate rolling shutter artifacts, capturing crisp, crystal-clear snapshots and continuous video streams of high-speed moving targets.
- Superior Low-Light & IR Performance: Engineered to excel in challenging illumination environments, producing low-noise, high-contrast imagery in both bright and dim settings.
- Intelligent On-Chip Functions: Includes Automatic Black Level Calibration (ABLC), on-chip Auto Exposure Control (AEC) with a 5×5 statistics engine, horizontal/vertical mirroring, windowing, and pixel-binning.
- Flexible Synchronization & Control: Features built-in strobe control, slave/trigger mode synchronization, and an on-chip Phase Lock Loop (PLL) for precise frame timing.
- Complete SDK Integration: Fully compatible with custom software environments via a straightforward two-wire serial interface and developer-friendly SDK.
Target Applications
- Industrial Automation & Machine Vision: Automated optical inspection (AOI), defect detection, and robotic guidance.
- Logistics & Barcode Scanning: High-speed parcel sorting and 1D/2D barcode recognition on fast-moving conveyor belts.
- Intelligent Traffic Systems (ITS): License plate recognition (LPR) and vehicle monitoring.
- Medical & Scientific Imaging: Precision laboratory equipment and high-speed motion analysis
