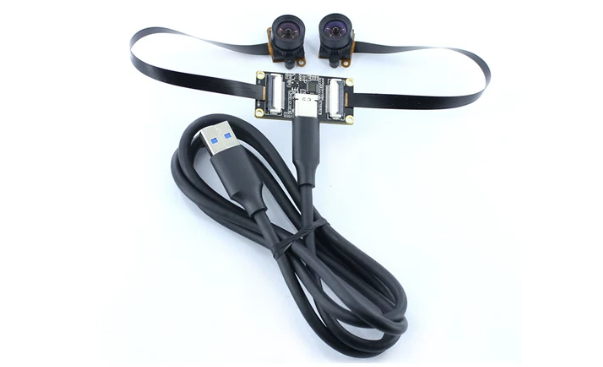

Joyllon HBVCAM-W2307-2 V11 1MP Global Shutter USB 3.0 Camera Module

High-Performance 1MP Global Shutter USB 3.0 Camera Module (OV9281 Sensor) | Joyllon

Boost your machine vision, motion tracking, and industrial automation projects with the Joyllon HBVCAM-W2307-2 V11—a high-speed, 1-megapixel global shutter USB 3.0 camera module. Designed with the advanced OmniVision OV9281 CMOS sensor, this module delivers exceptional high-frame-rate performance with zero motion artifacts, making it ideal for high-speed industrial inspection, robotics, and computer vision applications.

Key Technical Specifications

  • Sensor: OmniVision OV9281 (1/4 inch, Global Shutter)
  • Resolution & Frame Rate:
    • Maximum Resolution: 2560×720 at 60FPS (MJPEG / YUY2)
    • High-Speed Options: 1280×400 or 1280×480 up to 120FPS / 100FPS
  • Interface: USB 3.0 (Plug-and-Play UVC compliant)
  • Optics & Lens:
    • Focal Length (EFL): 2.1mm
    • Field of View (FOV): 100 degree Diagonal (76 degree Horizontal, 64 degree Vertical)
    • Aperture: F/2.2
    • Distortion: <5%
  • Audio: Built-in microphone support
  • Operating Systems: Windows (XP, 7, 8, 10, 11), Android 4.0+, macOS, and Linux with UVC support
  • Module Dimensions: 295.60mm x 20mm x 14.80mm

Core Advantages & Applications

  • Global Shutter Technology: Eliminates rolling shutter artifacts and image distortion when capturing fast-moving objects, industrial assembly lines, or high-speed gesture tracking.
  • High Frame Rate Flexibility: Supports up to 120FPS at lower resolutions for precise motion analysis and machine vision feedback loops.
  • Robust Industrial Design: Engineered to operate reliably in harsh environments with a working temperature range of -30 degree C to 70 degree C.
  • Target Applications: Autonomous mobile robots (AMR), industrial barcode scanning, factory automation, gesture recognition, sports analytics, and depth-sensing vision systems.
