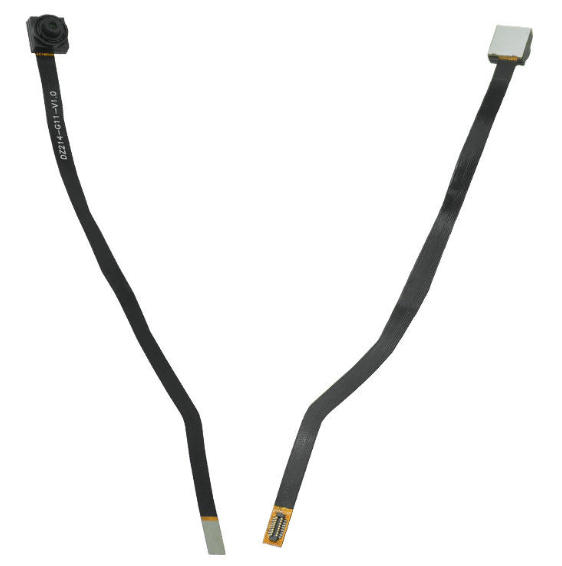

Ultra-Slim 4K HD Smart Wearable Camera Module for AR/VR Smart Glasses (Model: IMX258) | Joyllon

Engineered for next-generation wearable technology and immersive optics, the Ultra-Slim 4K HD Smart Wearable Camera Module is a high-performance AR/VR Smart Glass Camera Module built around the advanced 13MP Sony IMX258 CMOS image sensor. Featuring an ultra-thin form factor (45X4.6X3.6mm) and a high-resolution MIPI interface, this module delivers crisp 4K Ultra HD video and wide-angle, distortion-free optical clarity specifically tailored for smart eyewear, computer vision, and portable devices.

Technical Specifications

Parameter	Specification Detail
Image Sensor	Sony IMX258
Resolution / Pixels	13 Megapixels (13MP)
Max Resolution	3840 X 2160 (4K UHD)
Max Frame Rate	30fps
Field of View (FOV)	78° Wide-Angle (Distortion-Free)
Video Output / Interface	MIPI CSI-2
Module Dimensions	45 X 4.6 X 3.6 mm (Ultra-Slim PCB Profile)
System Compatibility	Windows, Linux, Android, macOS, and Raspberry Pi platforms

Key Features & Advantages

• Ultra-Slim Profile: Designed with an extremely compact 45 X 4.6 X 3.6 mm board dimension to fit seamlessly inside slim AR/VR smart glasses frames and lightweight wearable enclosures.
• Stunning 4K Visuals: Captures high-definition 13MP imagery (3840X2160 resolution at 30fps) to ensure immersive VR experiences, detailed video conferencing, and precise visual capture.
• Seamless MIPI Interface: Provides stable, high-bandwidth data transmission for direct integration with modern host processors, VR headsets, and embedded development boards.
• Wide-Angle & Low Distortion: Engineered with high-precision optics to maintain wide-angle coverage while preventing peripheral optical distortion.

Ecosystem & Platform Adaption

Optimized for flexible hardware and software environments, this module integrates smoothly with a wide array of development ecosystems:

• Supported Operating Systems: Android, Linux, Windows, macOS, and Raspberry Pi OS.
• Embedded & Vision Platforms: Ideal for custom board integration, mobile processors, and smart hardware architectures requiring compact high-resolution optics.

Target Application Areas

• AR / VR Smart Glasses: Immersive wearable displays, first-person video capture, and spatial computing headsets.
• Wearable Electronics: Compact body-worn cameras, smart audio-visual glasses, and portable recording gear.
• Smart Home & IoT Devices: Miniature vision sensors for smart home monitoring and interactive hardware.
• Machine Vision & Industrial Imaging: Specialized compact spaces requiring high-definition detail and narrow cross-section installation.

Flexible OEM/ODM Customization Process at Joyllon

As a premier camera module manufacturer based in Shenzhen, China, Joyllon provides comprehensive, end-to-end custom engineering solutions tailored to your precise optical and mechanical requirements. Our streamlined ODM workflow ensures rapid development:

1. Requirement Communication: Discussing specific FOV, dimensions, interface, and sensor preferences.
2. Solution Design: Professional optical and PCB schematic design by our engineering team.
3. Prototype Fabrication: Rapid sample production and functional testing.
4. Client Testing: Rigorous evaluation and tuning within your target hardware environment.
5. Mass Production: Stable, scalable volume manufacturing under strict quality control standards.
