Wanan Pro APP IP Camera Module

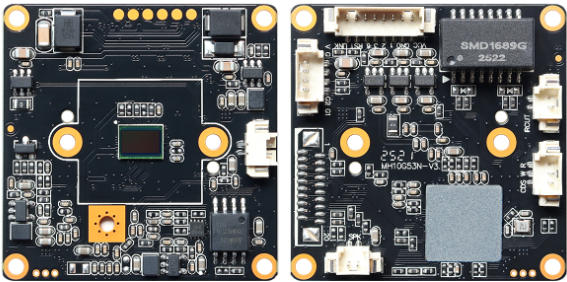

Ultra-HD Visual Intelligence at the Edge: Introducing the H80 8MP IP Camera Module (38×38 mm)

For developers, system integrators, and B2B security device manufacturers seeking high-resolution optical performance in a compact footprint, the H80 8MP IP Camera Module delivers state-of-the-art 4K imaging. Engineered around a 1/3″ Super Low Lux CMOS sensor coupled with a next-generation ISP 4K DSP, this 38×38 mm single-board solution bridges the gap between ultra-compact form factors and broadcast-quality 4K surveillance.

Whether you are designing AI-enabled smart home devices, automated industrial vision systems, specialized access control panels, or portable smart terminals, the H80 offers high-performance flexibility with customized algorithm options and robust multi-stream support.

Key Hardware & Optical Highlights

• Ultra-High Resolution 4K Imaging: Powered by a high-performance 1/3″ 8MP CMOS sensor and an advanced ISP 4K DSP, capturing pristine clarity at up to 3840 x 2160 resolution.
• Super Low Lux Performance: Maintains full-color fidelity in dimly lit environments down to 0.1Lux @ F1.2, transitioning to crisp black-and-white imaging at 0.01Lux @ F1.2 (with >= 50db S/N ratio and >80db DWDR).
• Flexible Smart Illumination: Fully supports CDS Infrared (IR) LEDs, White LEDs, and Warm LEDs with built-in PWM dimming control, as well as modern dual-light configurations.
• AI-Ready Edge Processing: Features support for 1T native computing algorithms with flexible options for custom algorithm integration.
• Compact Footprint: Standard single-layer 38 x 38 x 10 mm form factor weighing just 12 g, optimized for space-constrained industrial and consumer enclosures.

Technical Specifications Table

Feature Category	Specification Details
Model Number	H80 8MP IP Camera Module
Image Sensor & Processor	New ISP 4K DSP + 1/3″ 8MP CMOS
Illumination Sensitivity	Color: 0.1Lux @ F1.2 | B&W: 0.01Lux @ F1.2
Dynamic Range & Noise	DWDR > 80db, S/N Ratio >= 50db (AGC OFF)
Video Compression	H.265 / H.264 with dual-stream encoding (128Kbps – 8192Kbps adjustable)
Main Stream Resolution	3840 x 2160 (1-20fps); 2880 x 1664, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 (1-30fps)
Sub-Stream Resolution	704 x 576, 800 x 448, 640 x 480, 640 x 360, 352 x 288 (1-30fps)
Audio & I/O Interfaces	1CH MIC Input, Speaker Output (Max 2W 4ohm), IRCUT, 1CH Reset, Alarm In/Out, Reserved Ports
Lens Options	Standard fixed board lens support with optional external motorized zoom auto-focus lenses
Network & Protocols	ONVIF compliant, Full Net Com support; browser access via IE6.0+ and mobile apps (iOS / Android)
Power & Environment	DC12V / 120mA, Power Consumption: 1.5W, Operating Temp: -20°C to +60°C

Why Choose the H80 for Your Next Project?

1. Seamless Integration: Standardized 38×38 mm mounting dimensions allow manufacturers to drop the H80 directly into existing housing designs without major mechanical redesigns.
2. Robust Software Ecosystem: Built with full ONVIF protocol support, ensuring frictionless plug-and-play compatibility with third-party NVRs, VMS platforms, and custom web management consoles.
3. Tailored Customization: Tailor the hardware and firmware to your exact business specifications with expandable options for motorized zoom lenses, custom GPIO triggers, and edge-AI algorithm packages.

Ready to scale your next product line? Contact our engineering team at Joyllon today to request evaluation samples, custom SDK documentation, or volume pricing.

---
