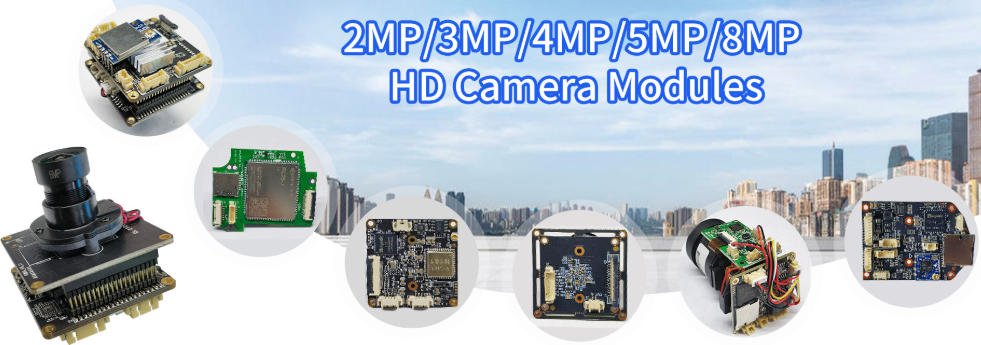

Boost your security hardware development with the HX4201SW4-1080M6A-PT-B 2MP IP WiFi PTZ Dome Camera Module from Joyllon.com . Designed for high efficiency and seamless integration, this compact PCB board delivers crystal-clear 1080P video streaming, smart motion tracking, and robust network connectivity for modern surveillance solutions.
Technical Specifications
System & Processing
- Operating System: Embedded LINUX
- Main Processor: GK7201V200
- Image Sensor: 1/2.9” CMOS Sensor
- IR-CUT: Supported for automated day/night transition
Video & Audio Compression
- Video Compression: Supports H.265, H.264 High Profile, H.264 Main Profile, and H.264 Baseline
- Audio Compression: G.726 / G.711
- Bitrate Stream: Customizable from 32Kbps to 6144Kbps (Default: 1280Kbps)
Image Performance
- Max Resolution: 2MP (1920×1080)
- Dual-Stream Support:
- Main Stream: 1920×1080 (200W)
- Sub Stream: 640×352
- Frame Rate: 20fps at 50Hz / 60Hz
- Image Adjustments: Brightness, contrast, saturation, exposure, vertical flip, and horizontal mirror settings with OSD time/date overlay.
Smart Functions & Storage
- Motion Detection: 4 independent detection zones with adjustable sensitivity (1–100)
- Alarm Linkage: Instant email alerts with snapshot attachments and FTP server uploads for pictures and recordings
- Storage Options: Up to 128GB Micro SD card storage (supports timed and 15-second alarm recordings) alongside optional cloud storage uploads
- Protocols: ONVIF 2.4 compliant; extensive network support including TCP/IP, HTTP, DHCP, RTSP, and UPNP
Physical & Hardware Interfaces
- Audio Interface: 1CH Audio Input / 1CH Audio Output
- Network Interface: 10Base-T/100Base-TX Ethernet port & Wi-Fi 802.11b/g/n wireless interface
- Dimensions: Ultra-compact 38 x 54 x 9 mm form factor
- Power Supply: DC 5V 2A (Ultra-low power consumption: 1.5W)
- Operating Environment: 0°C to +50°C, 10%–95% RH humidity
Manufacturer & SEO Metadata
- Manufacturer: www.joyllon.com
- Geo/SEO Keywords: 2MP IP camera module, WiFi PTZ dome board, GK7201V200 security PCB, Hichip wireless camera motherboard, OEM CCTV module manufacturer, CamHiPro compatible camera board.
