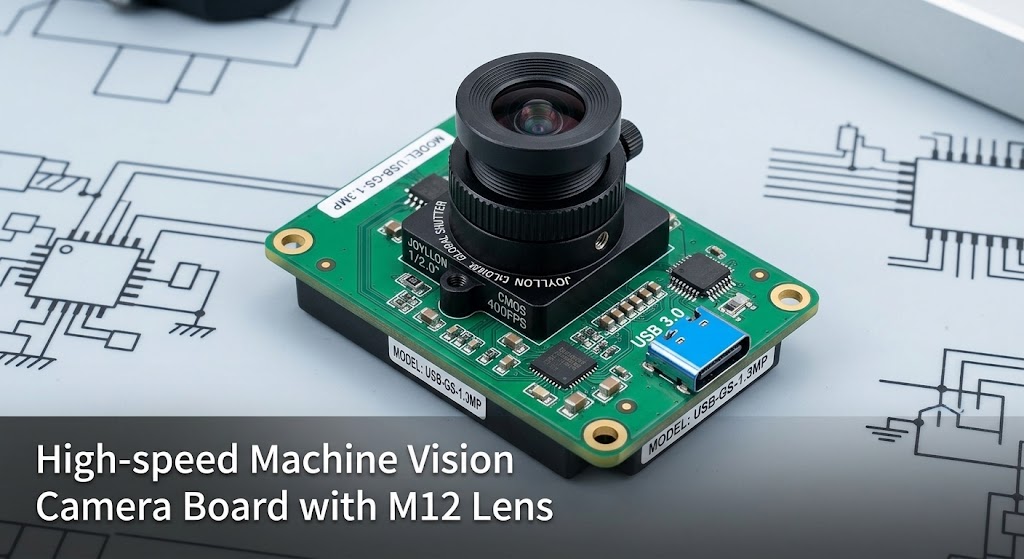

1.3MP USB3.0 Global Shutter Industrial Camera Module, 400fps, Distortion-Free, Driver-Free for High-Speed Capture
Welcome to Joyllon (Joyllon), a premier manufacturer specializing in advanced industrial machine vision and embedded camera solutions. The 1.3MP USB3.0 Global Shunter Industrial Camera Module is engineered for high-speed motion capture, industrial automation, machine vision, and precise tracking applications. Featuring a high-performance 1/2.0″ photosensitive sensor and a high-speed USB3.0 High Speed interface, this module delivers crystal-clear image acquisition at up to 400fps without motion blur.
Key Specifications & Features
- Product Model: USB Camera Module
- Photosensitive Chip: 1/2.0″
- Maximum Effective Pixels: 1280 (H) × 1024 (V) (1.3 Megapixels)
- Pixel Size: 4.8µm × 4.8µm
- Shutter Type: Global Shutter (eliminates rolling shutter artifacts for fast-moving objects)
- Interface Type: USB3.0 High Speed (Plug-and-play UVC drive-free protocol)
- Output Image Formats: MJPEG / YUV2 (YUYV)
- Center Clarity: 600LW/PH (Center)
- Signal-to-Noise Ratio (S/N Ratio): 37.5dB
- Dynamic Range: 77dB
- Sensitivity: 1.4V/lux-sec @ 550nm
- Minimum Illumination: 0.5lux
- Board Assembly Technology: SMT
- Focusing: Fixed
Supported Resolutions and Frame Rates
- MJPEG Mode:
- 1280 × 1024 @ 200fps
- 1280 × 720 @ 200fps
- 960 × 540 @ 200fps
- 848 × 480 @ 200fps
- 640 × 512 @ 400fps
- 640 × 480 @ 400fps
- YUV Mode:
- 1280 × 1024 @ 100fps
- 1280 × 720 @ 100fps
- 960 × 540 @ 200fps
- 848 × 480 @ 200fps
- 640 × 512 @ 400fps
- 640 × 480 @ 400fps
Standard Lens Specifications
- Format Size: 1/2.8 focal
- Aperture: F1.8 (2.26m aperture)
- Field of View (FOV): 120° (opposite angles)
- Mount Interface: M12 × P0.2
- Auto Controls: Supports Auto Exposure Control (AEC), Auto White Balance (AEB), and Auto Gain Control (AGC).
Software & Compatibility Highlights
- Driver-Free (UVC Protocol): Standard UVC drive-free protocol allows automatic installation upon plugging in. Compatible with Windows (XP, 7, 8, 10, 11), Linux, Android, and macOS. Linux and Android systems can seamlessly operate using standard V4L2 interface-based software.
- SDK Availability: Comprehensive SDK source code for Windows systems and application source code for Linux systems are available to support custom software integration.
- Preview & Recording Software: Fully compatible with standard AMcap image preview software to modify resolutions, capture snapshots, and fine-tune image parameters (brightness, contrast, saturation, hue, sharpness, gamma, white balance, exposure, etc.).
Professional Camera Customization Services
At Joyllon (Joyllon), we understand that every industrial, medical, or robotics application has unique demands. We offer full turnkey customization solutions tailored to your project requirements:
- Custom Design Process: Based on your application scenario, structural size constraints, target frame rate, and lighting conditions, our engineering team assists in selecting the optimal DSP + Sensor + Lens scheme, followed by custom PCBA design.
- Application-Specific Tuning: Whether you are building a high-speed motion analysis tool, a machine vision inspection system, or an AI identification terminal, we optimize parameters such as color balance, wide dynamic range (WDR), and distortion characteristics to match your exact environment.
Note: This standard product listing serves as a customer testing DEMO platform. Please contact our support team with your specific application details, required functions, and target specifications so we can deliver a tailored solution.
FAQ & Technical Notes
- Q: How do I choose the right lens angle?A: Share your target shooting distance and the size of the object you need to capture with our support team, and we will recommend or customize the ideal lens angle for your setup.
- Q: Can the lens be replaced?A: Yes, we can configure and ship the module with the exact lens required for your application needs.
- Q: Is a driver required?A: No, it features standard UVC driver-free plug-and-play capability across major operating systems.
