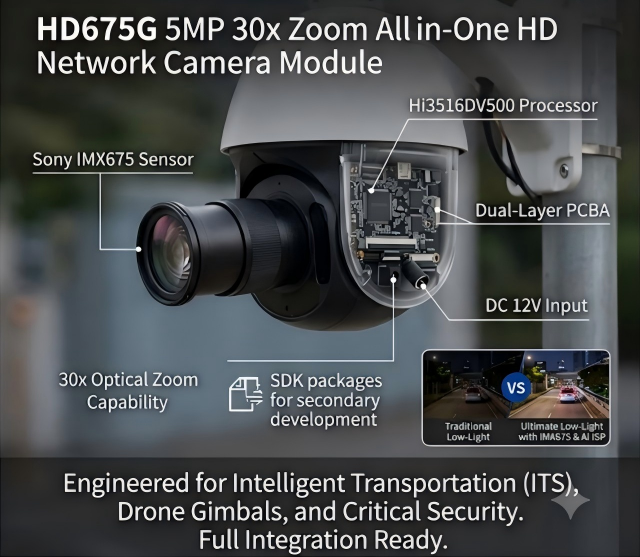

5MP 30x Zoom All-in-One HD Network Camera Module (HD675G) – Ultimate Low-Light Surveillance Solution

In the rapidly evolving world of security and industrial surveillance, precision, clarity, and adaptability are paramount. Introducing the HD675G 5MP 30x Optical Zoom HD All-in-One Network Camera Module, a powerhouse engineered for high-end integration, intelligent monitoring, and exceptional night-vision performance.

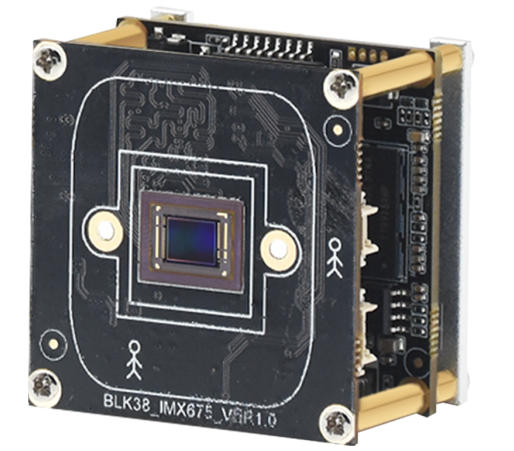

Powered by the advanced Hi3516DV500 dual-core processor and equipped with the latest Sony IMX675 CMOS sensor, this camera module is designed to deliver crystal-clear imaging under the most challenging environments.

Key Features & Product Highlights

• Next-Gen Sony IMX675 Low-Light Sensor: Features a 1/2.8″ 5-Megapixel IMX675 sensor, achieving ultra-low illumination performance at 0.001 Lux (both Color and B/W) at F1.2.
• Powerful 30x Optical Zoom: Equipped with a 4.5mm to 148.5mm lens, enabling quick zooming (approx. 3 seconds) to capture distant details with absolute clarity.
• Cutting-Edge AIISP Image Enhancement: Integrates revolutionary AIISP (AI Image Signal Processing) technology to dramatically reduce noise and boost brightness in low-light conditions.
• 60FPS High Frame Rate: Supports enhanced frame rates up to 1080P @ 60FPS, ensuring smooth video capture for fast-moving targets.
• Plug-in-Free Browser Access: Fully compatible with Google Chrome and other Chromium-based browsers without requiring any clunky plugins.
• Robust Protocol & SDK Integration: Supports standard ONVIF, GB28181, CGI, HTTP, HTTPS, WebSocket, and private protocols (HIK/DH). Full SDK packages are provided for secondary development.

Detailed Specifications

1. Hardware & Core Performance

2. Lens & Zoom Optics

• Focal Length: 4.5mm – 148.5mm (±5%)
• Optical Zoom: 30x
• Aperture Range: F1.67 – F3.67
• Horizontal Field of View (FoV): 54.82° (Wide) to 3.7° (Tele)
• Zoom Speed: Approx. 3 seconds (Optical, Wide to Tele)
• Focus Control: Auto / Manual

3. Video & Image Enhancement

• Max Resolution: 5MP @ 30fps ($2592 \times 1944$)
• Multi-Streaming: Supports Main stream, Sub-stream, and Third stream simultaneously (up to 12 concurrent live previews).
• Video Compression: H.265+ / H.265 / H.264
• Video Bitrate: 512 Kbps ~ 32 Mbps
• Image Features: 3D/2D Noise Reduction, Backlight Compensation (BLC), Highlight Compensation (HLC), Defog, Anti-Flicker, Lens Correction, Mirroring, and Flipping.

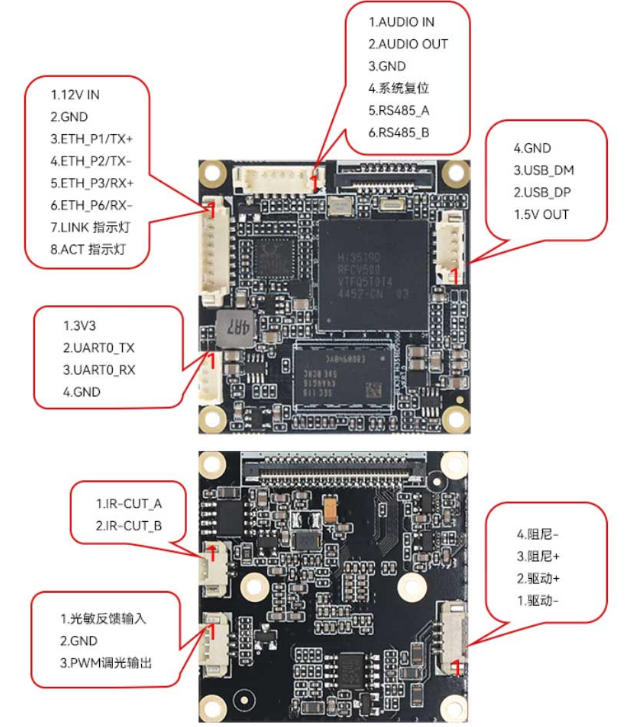

4. Interface & Connectivity

• Network Port: 1x RJ45 (10M/100M Adaptive Ethernet)
• Audio Interface: 1-ch Input (MIC/Pick-up); 1-ch Output (Headphone/Amplifier)
• Smart Light Control: Supports photosensitive detection input and PWM dimming (Infrared/Full-Color/Dual-Light modes).
• USB Expansion: 1x USB 2.0 port (5V), supporting extensions for 4G LTE, Dual-Band Wi-Fi, or TF Card Storage.

5. Physical & Electrical Specs

• Dimensions: 93.1mm x 50.3mm x 55mm
• Weight: 235g
• Operating Temperature: -20°C to +60°C
• Power Input: DC 12V (Max power consumption 4.1W)

Ideal Applications

Thanks to its ultra-compact design (93.1×50.3x55mm) and powerful integration capabilities, the HD675G module is perfect for:

• PTZ Dome Cameras & Speed Domes
• Traffic & Intelligent Transportation Systems (ITS)
• Drones & UAV Surveillance Gimbals
• Industrial Automation Inspection
• Border and Coastal Security Monitoring
