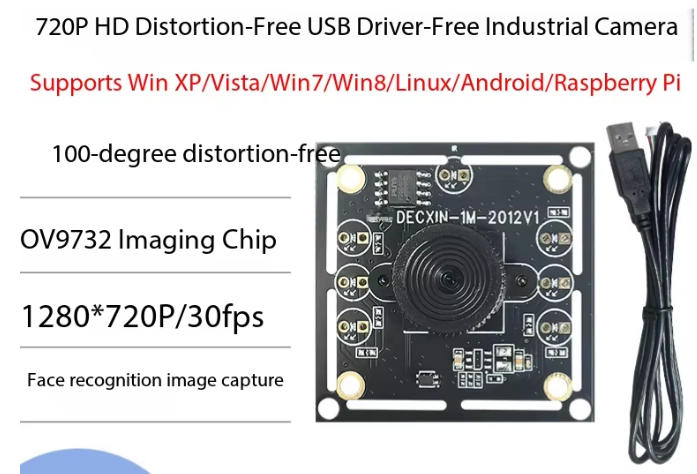

OV9732 Industrial USB Camera Module Face Recognition Distortion-Free Lens for Image Acquisition

OV9732 1/4″ Industrial USB Camera Module | 720P @ 30fps Face Recognition | 100° Distortion-Free Lens for Image Acquisition

Product Description

OV9732, industrial camera module, USB camera, 720P face recognition, 100 degree lens, distortion-free, MJPEG 30fps, UVC camera, M12 lens, image acquisition, low light camera, fixed focus camera, SMT camera, 1/4 inch CMOS, electronic rolling shutter — Industrial Camera Module for 720P/30-frame Face Recognition Image Acquisition OV9732/100-degree Distortion-free USB

Product Overview

Upgrade your industrial imaging projects with the High-Performance OV9732 USB Camera Module. Engineered for 720P HD resolution at 30 frames per second, this module is specifically optimized for face recognition, biometric scanning, and precision image acquisition. Featuring a 100-degree ultra-wide angle lens with a distortion-free design, it captures accurate, high-fidelity visuals without the “fisheye” effect common in standard wide lenses.

Whether you are developing smart security systems, interactive kiosks, or industrial automation solutions, this UVC-compliant (Plug & Play) camera ensures seamless integration across Windows, Linux, and Android.

Key Specifications

Parameter	Details
Model	OV9732 (1MP CMOS)
Optical Format	1/4 Inch
Max Resolution	1280 x 720 (HD)
Frame Rate	30 fps (MJPEG) / 10 fps (YUV)
Pixel Size	3.0µm x 3.0µm
Lens Angle	100° Diagonal (Distortion-Free)
Interface	USB 2.0 (High Speed/UVC)
Focus Type	Fixed Focus
SNR & DR	TBD (High sensitivity: 1.4V/lux-sec)
Assembly	SMT Technology

Key Features

Optimized for Face Recognition: The high sensitivity (1.4V/lux-sec) and 0.5lux low illumination capability ensure clear image capture even in low-light environments, maximizing recognition accuracy.

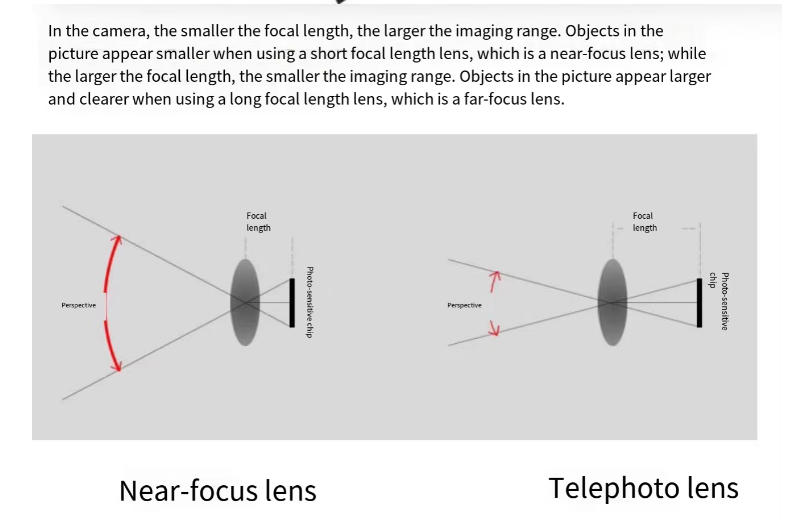

100° Distortion-Free Lens: Accurately capture geometry and space. The 100-degree wide field of view (FOV) eliminates barrel distortion, making it ideal for applications requiring spatial awareness (e.g., dart scoring, logistics scanning).
Versatile Resolution Support: Supports multiple output formats to balance performance and bandwidth:
- 1280x720 @ 30fps (MJPEG)
- 640x480 @ 30fps (YUY2/MJPEG)
- 800x600 @ 20fps (YUY2)
Advanced Image Control: Supports a full suite of auto-adjustments including Automatic Exposure Control (AEC), White Balance (AWB), and Gain Control (AGC). Manual tunable parameters include brightness, contrast, saturation, and gamma correction.
Truly Plug & Play: USB 2.0 interface with UVC compliance requires no additional drivers for most operating systems (WinXP/7/8/10/11, Linux, Android, Mac OS).

Package Contents

6 x OV9732 Camera Modules (100° Lens)
6 x 2m USB Cables

Application Notes

Industrial Automation: Quality control, logistics scanning, equipment monitoring.
Security & Access: Facial recognition terminals, time attendance systems.
Retail & Interactive: Vending machines, gesture recognition, digital signage.
DIY Projects: Compatible with Autodarts.io and other open-source vision platforms.

Note: Light reflection and different displays may cause the color of the item in the picture to differ slightly from the real thing. Measurement allowed error is +/- 1-3cm.
