5MP Raspberry Pi Infrared Night Vision Camera Module with OV5647 Sensor – 175° Fisheye & Auto IR LEDs
One of the most popular camera modules for Raspberry Pi. This 5 Megapixel night vision camera features the high-quality OmniVision OV5647 CMOS image sensor and is fully compatible with Raspberry Pi 2, Raspberry Pi 3 Model B, and Model B+.
True Day & Night Vision with Auto IR LEDs

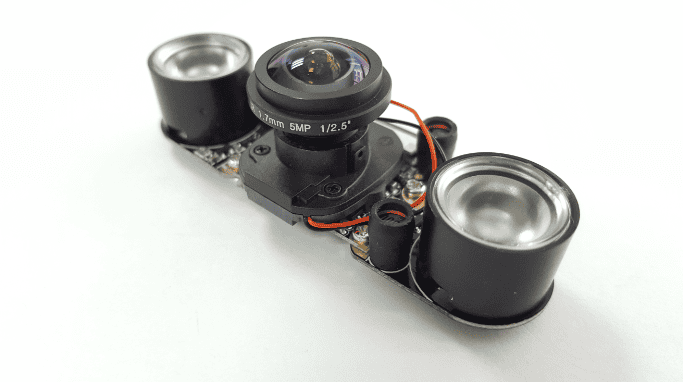

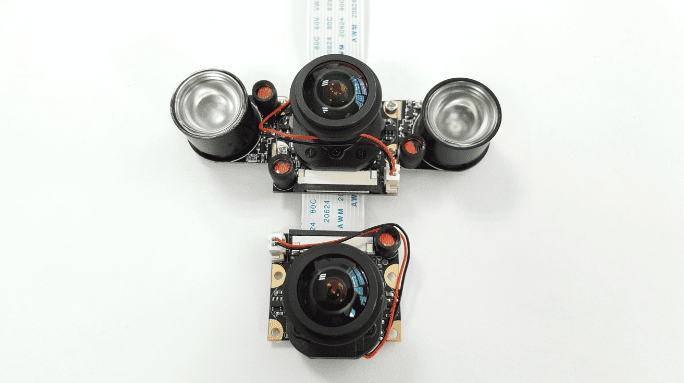

The module comes with a built-in IR CUT lens and two infrared LED lights. During the day, it captures normal color images. At night or in dark/poor lighting conditions, the IR LEDs automatically turn on to enable infrared night vision. This makes it ideal for 24/7 surveillance and low-light photography.
Wide 175° Fisheye Lens – Customizable FOV
Currently equipped with a 175° ultra-wide-angle fisheye lens, this camera captures a massive field of view. If you need a smaller or larger FOV, we can customize the lens to fit your specific project requirements.
Key Features
Technical Specifications
- Sensor: OmniVision OV5647 CMOS
- Resolution: 5 Megapixels (2592 x 1944)
- Lens: 175° fisheye (customizable FOV)
- IR Filter: Built-in IR CUT (850nm)
- IR LEDs: 2 LEDs, auto-activate in dark conditions
- Interface: CSI (Camera Serial Interface)
- Compatibility: Raspberry Pi 2, Pi 3 Model B, Pi 3 Model B+
- Day/Night: Full color day mode + infrared night mode
Common Applications
This versatile night vision camera module is perfect for:
🎬 Motion detection systems
📸 Time-lapse photography
🤖 Smart robots
🦉 Wildlife photography (day & night)
🌾 Agriculture NDVI imaging
🔭 Any Raspberry Pi camera-based project
Official Raspberry Pi Camera Resources
Learn more about Raspberry Pi camera modules at these official and community resources:
- Getting started with PiCamera – Raspberry Pi Projects
- Raspberry Pi camera board announcement
- Official camera hardware documentation
- Camera modules accessories guide
- Raspberry Pi camera module ultimate guide
Perfect for 24/7 Raspberry Pi Surveillance
Whether you’re building a home security system, a wildlife camera trap, or a smart robot, this 5MP night vision camera module with OV5647 sensor and auto IR LEDs delivers reliable day and night performance. The wide 175° fisheye lens ensures you capture more of the scene, and the CSI bus ensures fast data transfer for real-time applications.
Specification:
| Model No | CMT-5MP-OV5647-H020 |
| Sensor | 1/4’’ OmniVision OV5647 |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Image area | 3673.6um x 2738.4 |
| Resolution/ Frame rate | 2592×1944 @15fps; 1080P @30fps; 960P @45fps; 720P @60fps; 640 x480 @90fps; 320 x240 @120fps |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 68dB |
| Sensitivity | 680mV / lux-sec |
| Dark current | 16 mV/sec @60°C |
| Output formats | 8-/10-bit raw RGB data |
| Lens FOV | 175° |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power consumption | DC 3.3V |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Standard 25mm x24mm |
| Storage temperature | -20°C to 70°C |
| Compatibility | Raspberry Pi 2, Raspberry Pi 3 Model B/B+ |
Customized to your needs. Rely on our R&D and manufacturing expertise.
