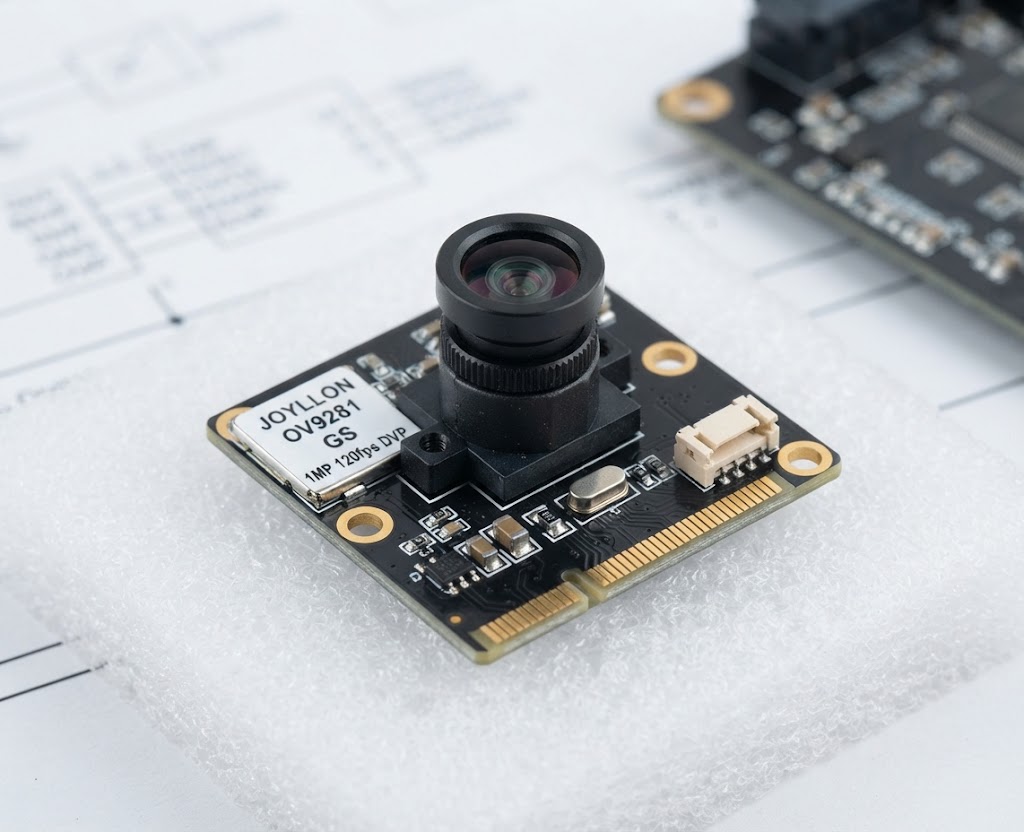

Looking for a high-performance, low-latency camera module for your next machine vision or embedded system project? The Joyllon HD 1MP 720P 120fps Global Shutter Camera Module (powered by the OV9281 CMOS Sensor) delivers exceptional speed and clarity. Designed for precision applications ranging from autonomous drones to smart home IoT devices, this 1MP DVP camera module is engineered to capture fast-moving subjects without motion blur.
Key Specifications
- Chip Type: OmniVision OV9281 CMOS Sensor
- Resolution & Frame Rate: 1MP (1296 x 816 array size) at up to 120fps for smooth high-speed capture
- Shutter Type: Global Shutter (eliminates rolling shutter artifacts and motion distortion)
- Optical Performance:
- EFL (Effective Focal Length): 4.1 mm
- F.NO: 2.2 ± 5%
- Field of View (D/H/V): 57.34° / 49.75° / 32.32° (approx. 60-degree micro lens)
- Distortion: < 1.0%
- Lens Construction: 5P glass elements
- Interface: DVP interface for seamless embedded integration
- Form Factor: Compact micro camera module mounting type
Versatile Applications
Thanks to its ultra-fast global shutter technology and high frame rate, this module excels in environments requiring rapid motion analysis and precise computer vision:
- Drones & Robotics: Reliable obstacle avoidance and visual simultaneous localization and mapping (vSLAM).
- Automotive: Driver monitoring systems (DMS) and advanced driver-assistance systems (ADAS).
- Artificial Intelligence (AI): Machine learning vision, gesture recognition, and object tracking.
- Security & Surveillance: High-speed barcode scanning, license plate reading, and access control.
- Smart Home & IoT: Gesture-controlled home automation and smart appliance monitoring.
Need a Datasheet or Custom Integration?
For engineers and developers looking for technical schematics, pinouts, or a full datasheet for this OV9281 module, you can reach out directly to the manufacturer via Joyllon.
Are you planning to integrate this OV9281 module into a specific AI or drone project, or do you need help finding alternative lens options?
