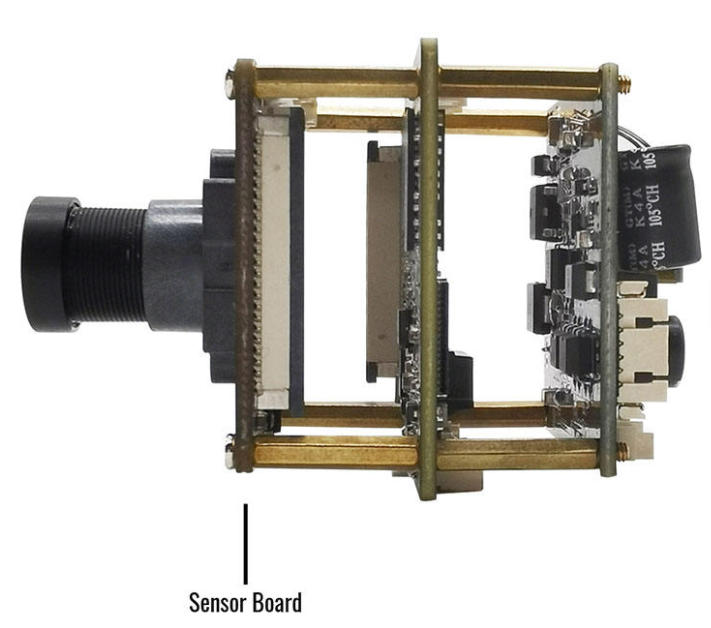

Discover the power of edge intelligence with the Horus AI Camera Module from Joyllon. Designed for advanced industrial and commercial applications, this high-performance development board combines Rockchip’s powerful processing architecture with versatile camera sensor compatibility.
Key Advantages & Features
- High-Performance AI Processing: Features an integrated neural network computing acceleration engine delivering up to 2.0 Tops of NPU performance for intelligent video analysis.
- Flexible Sensor Compatibility: Fully compatible with industry-leading image sensors including the IMX678, IMX335, and IMX415 for crystal-clear 2MP to 5MP resolution.
- Robust Software Ecosystem: Comes equipped with foundational IPC software, custom Linux system support, drivers, RTSP video streaming, camera configuration tools, and ready-to-use AI application APIs.
- Customized Modular Architecture: Core boards, camera module boards, and POE module boards are fully optional to meet precise project requirements. Structural design and custom shells are available for developed prototypes.
- Advanced Video & Image Processing: Utilizes advanced H.265/H.264 high-profile video compression and cutting-edge noise reduction technology to ensure high-quality, real-time image displays day and night via ICR infrared filter auto-switching.
- Local Storage & Expansion: Supports up to 2TB SD/SDXC local card storage extension alongside onboard EMMC Flash.
Technical Specifications
| Feature | Specification |
| Product Name | Horus AI Camera Module |
| Manufacturer | Joyllon |
| Operating System | Linux |
| CPU | Quad Core ARM Cortex-A7 at 1.5GHz |
| RAM & Memory | 1GB DDR3 SDRAM, 8GB EMMC Flash (Supports TF card extension up to 2TB) |
| AI Computing | Integrated NPU engine (2.0 Tops) |
| Board Dimensions | 42 x 42 mm |
| Working Voltage | 9–16V (Typical: 12V) |
| Connectivity & Power | RJ45 POE / DC Power Interface (5.5 x 2.1mm), USB 2.0, 4-Lane IO (Accommodates two UARTs) |
| Protection | 4KV lightning protection on Ethernet port; CPU embedded watchdog |
For custom solutions, bulk orders, or technical inquiries, visit the official Joyllon website.
