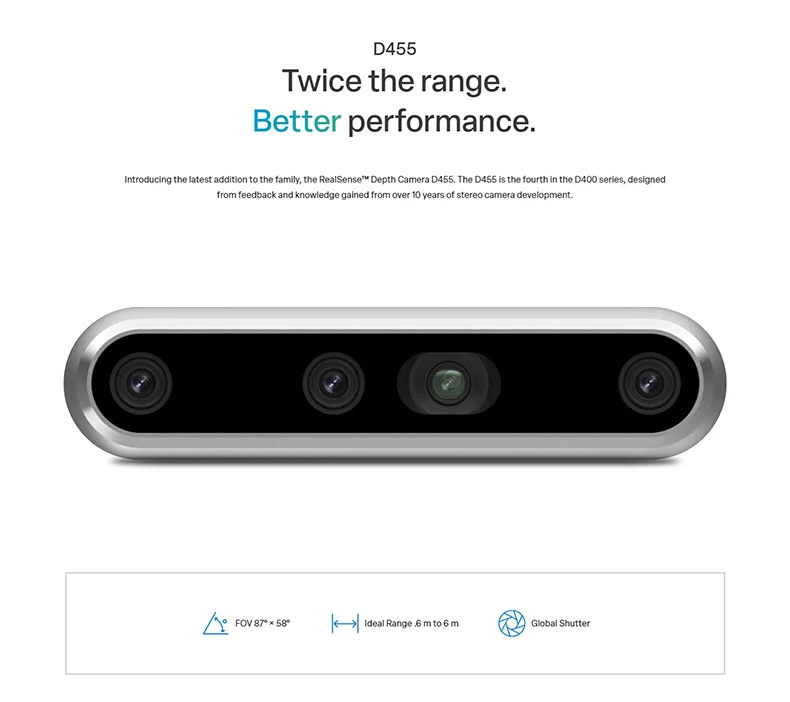

Intel RealSense D455 CMOS Box Camera

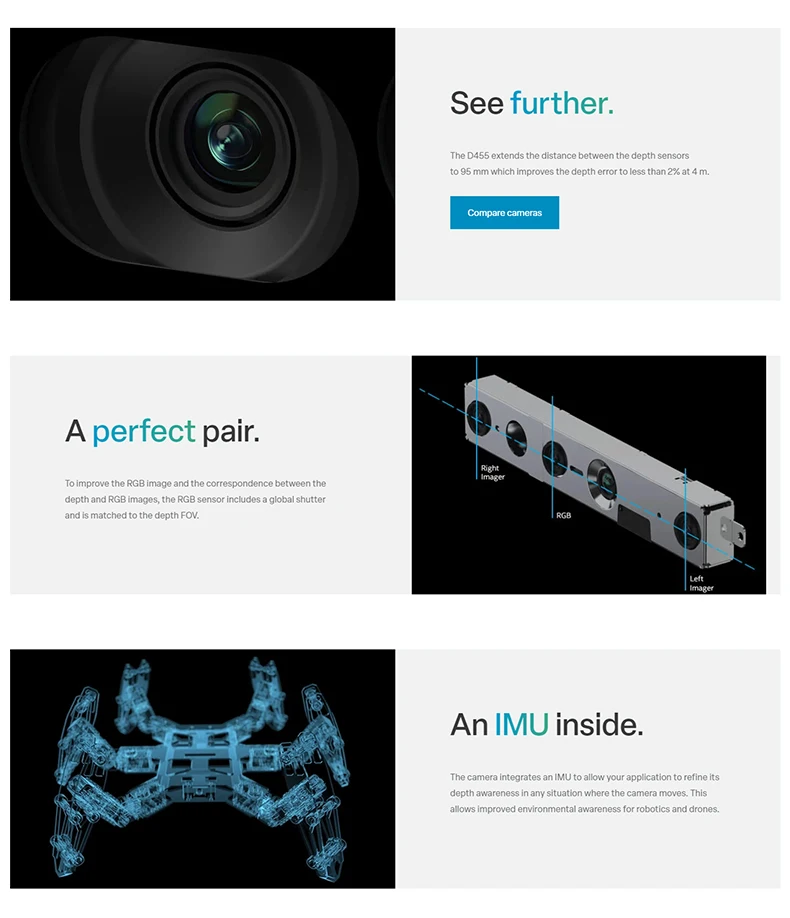

The Intel RealSense D455 is a high-precision 3D depth camera module designed for drones, AR/VR, robotics, and industrial automation. It features an extended 95 mm baseline that doubles the operating range (up to 6 meters) and an integrated IMU for accurate 6DoF (six degrees of freedom) tracking.
Key Hardware & Operational Specifications
| Parameter | Specification |
|---|---|
| Operating Range | 0.6 m to 6 m |
| Depth Resolution | Up to 1280 × 720 at 90 fps |
| Sensor Type | CMOS with global shutter (RGB + depth) – reduces motion blur |
| Field of View (FOV) | Depth: 86° × 57° RGB: 86° × 57° |
| Connectivity | USB 3.1 Gen 1 Type-C |
| Power | USB 3.1 (bus-powered) |
| Dimensions | 124 × 26 × 29 mm |

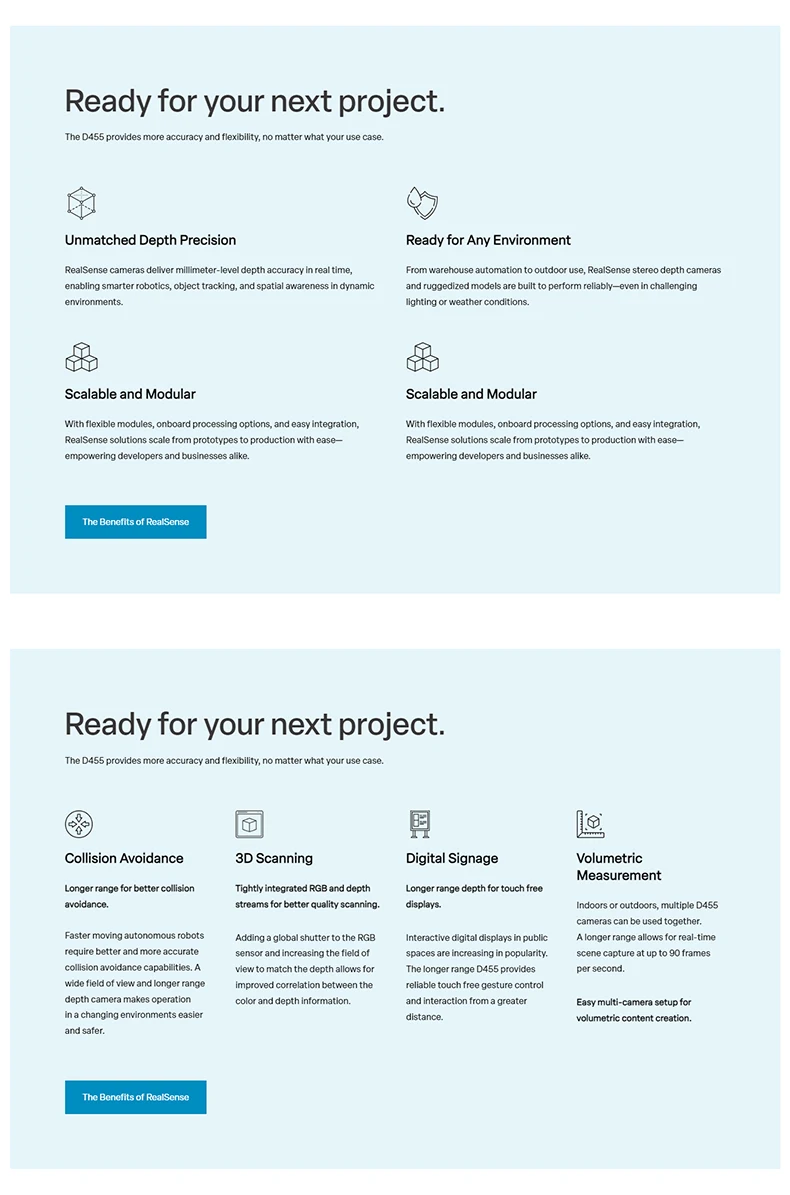

Primary Use Cases
Drones & UAVs
The built-in IMU enables your drone to refine depth awareness while in motion, providing real-time spatial analysis for safe navigation and obstacle avoidance.
Virtual & Augmented Reality (AR/VR)
High-precision depth sensing tracks the user’s environment, allowing seamless overlay of digital objects onto the physical world.
Robotics
Ideal for industrial automation, dimension measurement, autonomous movement, and robotic navigation.
