Product Overview

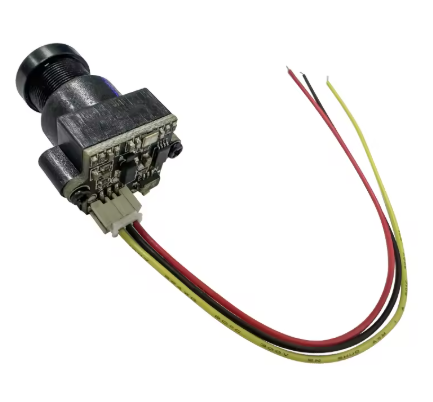

The 1200TVL HD Color FPV Camera Module is an ultra-compact, high-performance analog imaging solution designed for embedded vision systems, RC drones, robotics, and discrete surveillance. Featuring a high-sensitivity 1/3-inch HD Color CMOS sensor, it delivers crisp $1280 \times 960$ effective pixels with an impressive 1200 TV Lines of resolution.
Engineered with an ultra-low light threshold of 0.01Lux, this micro camera board ensures exceptional visibility and clear color imaging even in challenging, low-light environments. Its miniature $17 \times 17\text{ mm}$ form factor makes it the perfect plug-and-play choice for space-constrained installations requiring a reliable, zero-latency CVBS analog video output.
Customizable Optics
Tailor the field of view to your exact project requirements. Available with multiple lens options ranging from 45° to 120° DFOV (Diagonal Field of View).
Key Features
- Ultra-Low Light Performance: Exceptional 0.01Lux minimum illumination allows for reliable monitoring and night-time FPV piloting without losing color detail.
- Zero-Latency CVBS Analog Output: Delivers instantaneous, real-time video streaming over standard composite video connections—critical for FPV drones and precision robotics.
- Micro Form Factor: Measuring just $17 \times 17\text{ mm}$ and weighing a mere 8 grams, this hardware seamlessly integrates into tight enclosures, portable equipment, and small UAV chassis.
- Dual Video Formats: Universally compatible with both NTSC and PAL video standards to match your transmitter or display monitor setup.
- Wide Voltage Range: Operates efficiently on a flexible $DC\ 3.3\text{V} – 7\text{V}$ power supply, making it highly compatible with standard lithium batteries and RC flight controllers.
Technical Specifications
| Parameter | Specification |
| Image Sensor | 1/3-inch HD Color CMOS Sensor |
| Effective Pixels | $1280\text{H} \times 960\text{V}$ |
| Horizontal Resolution | 1200 TV Lines (TVL) |
| Video Output / Interface | CVBS Analog ($1.0\text{Vp-p} / 75\Omega$) |
| Video Format Options | NTSC / PAL |
| Minimum Illumination | 0.01 Lux (Low Light Sensitive) |
| Signal-to-Noise Ratio (SNR) | $>50\text{dB}$ |
| Electronic Shutter Speed | NTSC: $1/60 – 1/10,000\text{s}$ | PAL: $$1/50 – 1/10,000\text{s$ |
| Synchronization | Internal Sync (Inter-sync) |
| Input Voltage | $DC\ 3.3\text{V} – 7\text{V} \pm 1\%$ |
| Power Consumption | $140\text{mA} \pm 10\%$ |
| Lens Options (DFOV) | 45° to 120° Diagonal Field of View (Optional) |
| Dimensions (Micro) | $17 \times 17\text{mm} \pm 0.5\text{mm}$ (Without Lens) |
| Weight | $8\text{g}$ (Ultra-Lightweight) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -45°C to 85°C |
Common Applications
- FPV Drones & RC Quadcopters: Zero-latency analog video for real-time piloting.
- Embedded Vision & Machine Automation: Compact inspection cameras for automated lines.
- Robotics & Unmanned Ground Vehicles (UGVs): Low-power navigation sensors.
- Hidden Surveillance & Security Systems: Miniature footprint for discrete placement.
- Medical Equipment Monitoring: Small-scale diagnostic and observation setups.
