HS-UB130CW3 – 2MP USB Camera Module | 1080P Box Camera | IP55 Face Recognition
Product Overview

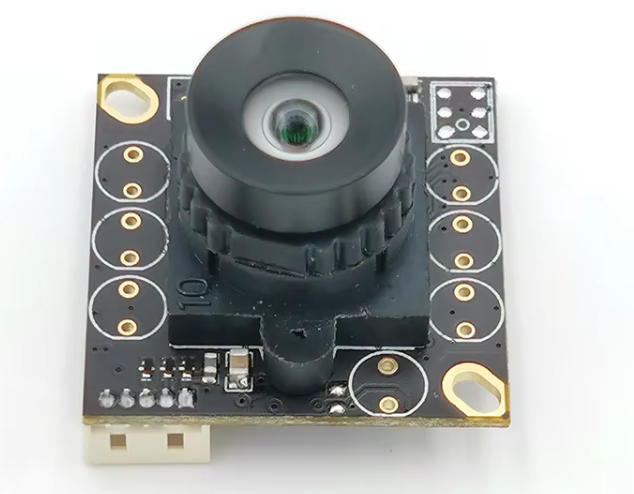

The HS-UB130CW3 is a high-performance 2MP USB camera module delivering 1080P Full HD resolution at 30fps. Featuring an electronic rolling shutter, IP55 weatherproof rating, and UVC plug-and-play compatibility, this camera is purpose-built for face recognition systems, outdoor surveillance, access control kiosks, and industrial machine vision applications.
With a fixed lens focus range of 50cm to infinity and support for YUV and MJPEG video formats, the HS-UB130CW3 offers reliable, high-quality imaging across Windows, Linux, and Android operating systems without additional drivers.
Key Specifications
| Specification | Value |
|---|---|
| Model | HS-UB130CW3 |
| Resolution | 1920(H) x 1080(V) – 1080P |
| Unit Pixel Size | 3µm x 3µm |
| Shutter Type | Electronic Rolling Shutter |
| Max Capture Frame Rate | 30fps @ full resolution |
| Max Video Frame Rate | 30fps @ VGA, 720P, 1080P |
| SNR Max | 52dB |
| Max Dynamic Range | 79dB |
| LED | NC (No built-in LED) |
| Video Format | YUV, MJPEG |
| Interface | USB 2.0 / 1.1 |
| Power | USB Bus Power (no external supply) |
| Operating System | Windows XP/7/8/10 (UVC), Linux (>v2.6), Android ≥4.0 with UVC |
| Auto Controls | AEC / AGC / White Balance (Auto) |
| Focus Distance | Fixed lens: 50CM to infinity (∝) |
Key Features & Benefits
- 1080P Full HD at 30fps – Smooth, high-resolution video for accurate face recognition and motion tracking
- IP55 Weatherproof Rating – Dust and water resistant for reliable outdoor and industrial use
- UVC Plug-and-Play – No drivers needed; works immediately on Windows, Linux, and Android
- Electronic Rolling Shutter – Reduces motion artifacts for clearer moving subjects
- YUV + MJPEG Support – Flexible video format compatibility across platforms
- Fixed Lens 50cm to Infinity – No focusing required for medium to long-distance applications
- USB Bus Powered – No external power adapter needed
- Auto Exposure, Gain & White Balance – Optimizes image quality in varying lighting conditions
- High SNR (52dB) & Dynamic Range (79dB) – Excellent image clarity in both bright and low-light environments
Applications
- Face recognition access control systems
- Outdoor surveillance and security cameras
- Self-service kiosks and interactive displays
- Industrial machine vision and quality inspection
- Smart signage and digital advertising
- Video conferencing and telepresence
- Robotics and AI vision systems
- Embedded vision projects (Raspberry Pi, Jetson Nano, etc.)
